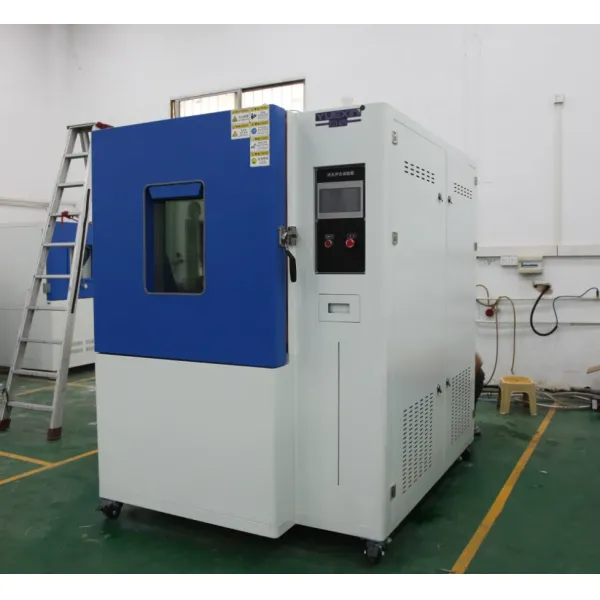

UP-6300 SUS316# Stainless Steel Ice Water Splashing Immersion Test Chamber with 7-inch LCD Touch Screen and French Taikang Compressor for Automotive Parts
UP-6300 SUS316# Stainless Steel Ice Water Splashing Immersion Test Chamber with 7-inch LCD Touch Screen and French Taikang Compressor for Automotive Parts
UP-6300 SUS316# Stainless Steel Ice Water Splashing Immersion Test Chamber with 7-inch LCD Touch Screen and French Taikang Compressor for Automotive Parts
UP-6300 SUS316# Stainless Steel Ice Water Splashing Immersion Test Chamber with 7-inch LCD Touch Screen and French Taikang Compressor for Automotive Parts
UP-6300 SUS316# Stainless Steel Ice Water Splashing Immersion Test Chamber with 7-inch LCD Touch Screen and French Taikang Compressor for Automotive Parts
UP-6300 SUS316# Stainless Steel Ice Water Splashing Immersion Test Chamber with 7-inch LCD Touch Screen and French Taikang Compressor for Automotive Parts
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
$599~$8999
Place of Origin :
CHINA
Brand Name :
YOUBI
Payment Terms :
T/T; D/P; Wester Union; Paypal; Money Gram
Packaging Details :
Professional Export Wooden Box Packaging
Supply Ability :
30 Unit/month
Model Number :
UP-6195
Delivery Time :
5~15 work days
Product name :
Ice Water Splashing Immersion Test Chamber
Model NO. :
UP-6300
Temperature Range :
Rt+10 ºC ~ 150 ºC
Heating Rate :
Rt+10 ºC ~ 150 ºC ≤45min.
Cooling Rate :
25 ºC ~ 2 ºC ≤60min.
Warranty :
1 Year
Custom Service :
OEM,ODM
Additional Service :
Support Customer Customization
Color Service :
Support Customer Customization
Size Service :
Support Customer Customization
Third-Party Calibration Service :
Support Customer Customization
Specification :
Refer to the actual size specifications
Description

Reliable Ice Water Splashing Immersion Test Chamber For Automotive Parts

Description:
Application field: car accessories and other electronic and electronic products.
Function: Ice water impacting immersion test chamber is a composite test box for ice water splash test and ice water immersion test. It can do spatter or immerse tests alone to simulate the ice water splash or immersed in the heating system or immersed in the heating system or immersed to the heating system or immersed in the heating system in winter. On the component. The failure mode is different temperature expansion coefficients that cause material cracking or sealing failure. It is a variety of raw materials and devices such as electronics, electricals, electrical appliances, plastics and other raw materials and devices for cold, heat -resistant, ice -resistant sputtering tests, ice -resistant testing tests and reliability testing equipment for quality management engineering.

Standard:
Comply with international standards GB/T 28046.4-2011 (ISO 16750-4: 2006): Environmental conditions and tests of road vehicle electrical and electronic equipment --- Part 4 --- climate load, VW80000: 2009-10 LV124 3.5 tons below The requirements of automotive electrical and electronic component test items, test conditions and test requirements.

Feature:
1. It is suitable for the ice -resistant spatter test of the product, and the ice water immersion test.
2. The shell is processed by the domestic high -quality steel plate CNC machine tools, and the surface is sprayed with paint, which is beautiful and durable.

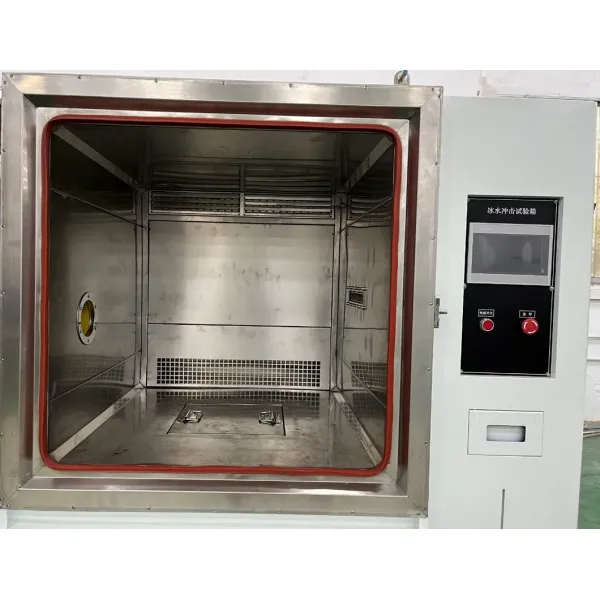

3. All inner boxes are made of SUS316#stainless steel plate to ensure that it is not rust for a long time.
4. Insulation material: high -density glass fiber cotton, ensure thermal insulation performance, maintain the indoor balance and stable temperature.
5. There is a transparent observation window (multi -layer hollow tempered glass) on the door. LED lighting lights are installed on the door to facilitate the internal testing situation
6. The high -temperature system uses a long -axis fan motor, which is resistant to high and low temperature 316 stainless steel multi -wing leaf wheels to achieve the intensity -to -vertical diffusion cycle, so that the temperature in the laboratory is uniform and stable;
7. Between the door of the device and the box, the double -layer high -temperature high -temperature sealing strip is used to ensure the confinement of the test area. Made of the material inner plate materials is made of 316 stainless steel, and it is easier to operate with a coupleless door handle;
8. Test holes (100mm in diameter) are installed on the left side of the device, which can be used to test the power cord or signal line to use;
9. The design of the equipment control part is designed on the right side of the device. It has a control touch screen, control switch, etc., which is convenient and easy to maintain;
10. Install high -quality fixed PU activity Korean foot wheels at the bottom of the machine, which can easily move the machine to the specified position, and finally fix the foot wheel;
11. The control system adopts a 7 -inch touch screen+Panasonic PLC. Electric components use imported brands such as LS and Omron. The wiring process meets the requirements of national standards. The electrical plate layout is reasonable, the wiring is firm, and the indication is clear.
12. Use 7 -inch LCD touch screen control+PLC control can control the temperature, water tank temperature, flow and water pumps and testing time in the box; traffic and temperature are directly displayed on the touch screen, automatic constant current and constant temperature.
13. The refrigeration system of the equipment is installed at the bottom, and the compressor adopts the French Taikang brand to ensure the refrigeration effect and reliability.
14. The refrigeration system adopts a fully closed French Taikang compressor. The condensation method is air -cooled, and the R404R environmentally friendly refrigerant is used. The full system pipeline passes the 48h leak testing test to confirm that the refrigeration system can run stable for a long time.
15. Ice water splash test: The spraying peak is fixed on the right side of the test box; the water spray distance is adjusted through the sample movement
16. Slim-gap spraying (316L material, disassembly and cleaning, as shown in the following figure) 1, satisfy GB/T28046.4-2011: 5.4 Ice water impact test: Figure 4, strictly designed and manufactured according to standards.
17. Flow sensor: The flow sensor is used to control the flow of the ice water splash test. The signal of the flow sensor will be fed back to the PLC. The automatic constant current is controlled by PID, and the flow is displayed directly on the touch screen.
18. Ice water immersion test: This test is performed when the test is different from the splash test to meet the 5.4.3 provisions of GB/T28046.4-2011. , Soaking without time, the setting range is 1 to 5min, the number of loop settings: 1 to 999 times, the temperature recovery time in the water tank is 30min;
19. Set automatic high and low water level in the water tank. The high water level is used to do ice water immersion tests. The bottom water level is used to do ice water splash test to reduce the amount of dust use;
20. The ice water splash test and the water tank flushing circulation test uses a custom cycle pump to ensure the stable flow and water temperature.
21. The ice water temperature control device adopts water circulation refrigeration method to ensure the uniformity of water temperature and mixed water.
22. The equipment has the function of automatic cleaning the pipeline and the inner box.

Technical parameters:

1. Dimensions and sample prohibition
Upper inner box size 1200X900X700 mm (W*D*H)
Basket size Approx. 840X680X650mm (W*D*H)
Outer Dimensions Approx 1800X1520X2150mm (W*D*H)
Sample prohibition

It is forbidden to test and store samples of flammable, explosive and volatile substances

Testing and storage of samples of corrosive substances is prohibited

Prohibition of testing or storage of biological samples

It is forbidden to test and store samples of strong electromagnetic emission sources
2. Technical indicators
Temperature range of high temperature box RT+10ºC~150ºC
Temperature deviation ≤2ºC
Temperature uniformity ≤2ºC (under no-load condition)
Test water temperature 0ºC~+4ºC
Test water temperature control 5P chiller (with pure titanium evaporator)
Number of test cycles 0~100 times, can be preset
Basket load 100kg (Automatically controllable lifting)

UP-6300 SUS316# Stainless Steel Ice Water Splashing Immersion Test Chamber with 7-inch LCD Touch Screen and French Taikang Compressor for Automotive PartsUP-6300 SUS316# Stainless Steel Ice Water Splashing Immersion Test Chamber with 7-inch LCD Touch Screen and French Taikang Compressor for Automotive PartsUP-6300 SUS316# Stainless Steel Ice Water Splashing Immersion Test Chamber with 7-inch LCD Touch Screen and French Taikang Compressor for Automotive Parts

Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
