UP-5030 Wire And Cable Testing Machine 220VAC 50Hz Vertical Horizontal Combustion Tester
UP-5030 Wire And Cable Testing Machine 220VAC 50Hz Vertical Horizontal Combustion Tester
UP-5030 Wire And Cable Testing Machine 220VAC 50Hz Vertical Horizontal Combustion Tester
UP-5030 Wire And Cable Testing Machine 220VAC 50Hz Vertical Horizontal Combustion Tester
Specifications
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
CHINA
Brand Name :
YOUBI
Certification :
CE,ISO
Delivery Time :
5-10 work days
Payment Terms :
D/P,T/T,Paypal,Western Union,Money Gram
Supply Ability :
20 Unit/monty
Model Number :
UP-5030
Packaging Details :
Professional Export Packing
Name :
Combustion Tester
Model NO. :
UP-5030
Service Support :
OEM ODM
Language :
Chinese and English
MOQ :
1 PCS
Applications :
Plastic,Wire & Cable ,Electronics,Building Materia
Specification :
Refer to the actual size specifications
Power supply: :
220VAC, 50Hz
Description

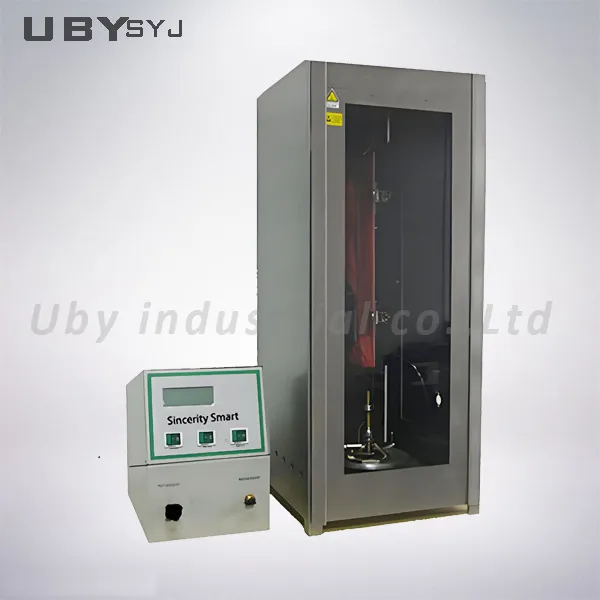

UP-5030 Reliable Wire and Cable Vertical Horizontal Combustion Tester
Product Overview

The UP-5030 Wire and Cable Vertical Horizontal Combustion Tester is designed for combustion resistance testing of various wire and cable insulation coating materials, printed circuit board materials, IC insulation, and other organic materials.

During testing, the specimen is exposed to flame at the top, burned for 15 seconds, extinguished for 15 seconds, and repeated 5 times. The equipment allows setting of burning time, extinguishing time, and repetition count, and can operate automatically.

Compliance with standards: VW-1 in compliance with UL1581, UL13, UL444, UL1655 and FT-1 test standard requirements for CSA.

Technical Specifications
Parameter Specification
Vertical Combustion Box Made according to UL1581 standard size, internal dimensions: 305×355×610mm
Horizontal Combustion Box According to UL1581 standard size, internal dimensions: 305×355×610mm
Vertical Spark Nozzle Nozzle angle: 20 degrees with gas control valve
Horizontal Spark Nozzle Nozzle angle: 90 degrees with gas control valve
Operation Modes Vertical or horizontal nozzle selection; Manual/automatic mode selection
Automatic Operation Machine automatically stops test when preset data is reached
Fuel Gas (Methane) - Customer-supplied
Power Supply 220VAC, 50Hz
Weight 40kg

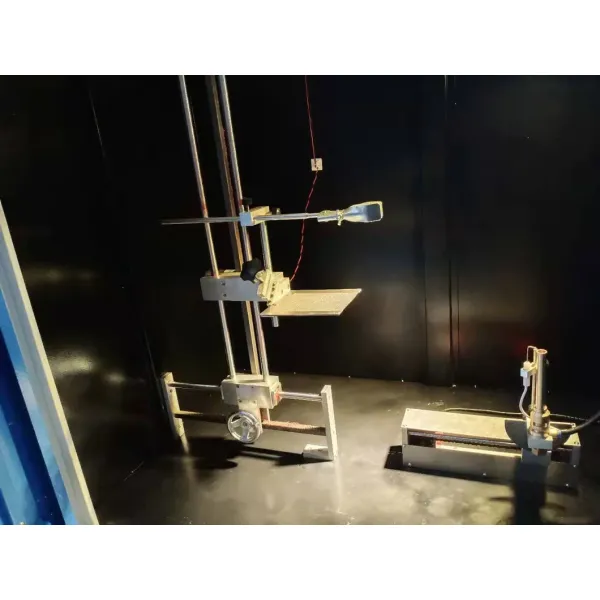

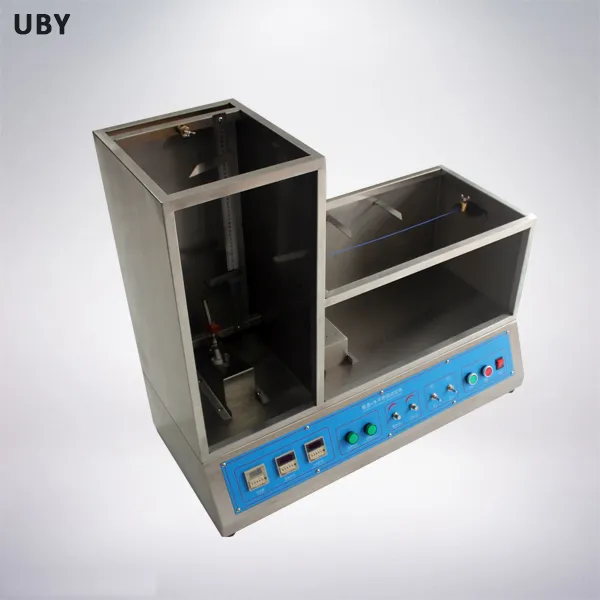

Product Images
UP-5030 Wire And Cable Testing Machine 220VAC 50Hz Vertical Horizontal Combustion Tester UP-5030 Wire And Cable Testing Machine 220VAC 50Hz Vertical Horizontal Combustion Tester UP-5030 Wire And Cable Testing Machine 220VAC 50Hz Vertical Horizontal Combustion Tester
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide pricing
  • Specifications Customization: Create drawings for customized requirements, provide reference photos, and confirm final solution
  • Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange shipping
  • Installation and After-Sales: Provide installation support and ongoing after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of FREE maintenance, extended to 14 months considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem and provide solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days; No stock: 15-20 working days after payment; Urgent needs receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you only need to connect the power cable to start using. We can also provide on-site installation assistance if necessary.
