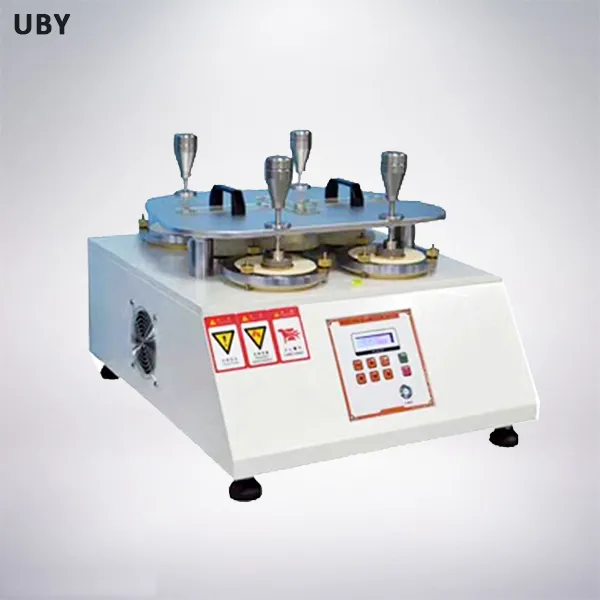

Martindale Abrasion And Pilling Tester , Cloth Pilling Tester Machine
Martindale Abrasion And Pilling Tester , Cloth Pilling Tester Machine
Martindale Abrasion And Pilling Tester , Cloth Pilling Tester Machine
Martindale Abrasion And Pilling Tester , Cloth Pilling Tester Machine
Specifications
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
CHINA
Brand Name :
YOUBI
Certification :
CE,ISO
Payment Terms :
D/P,T/T,Western Unions,Papal,Money Gram
Packaging Details :
Professional export packaging
Delivery Time :
5-15 work days
Supply Ability :
20 Unit/month
Model Number :
UP-1006
Product name :
Martindale Abrasion And Pilling Tester
Model NO. :
UP-1006
Abradant table :
≥ 125mm
Lissajous figure :
60±1 mm x 60±1 mm
Rotational Speed :
47.5 ± 2.5 r/min
Service Support :
OEM ODM
Language :
Chinese and English
Applications :
Fabric,Textiles,Cloth,Gloves and etc
Description
Stable Quality Martindale Abrasion Tester Cloth Pilling Testing Equipment
Product Overview

Martindale Abrasion Testing Machine is used to determine the abrasion resistance of all kinds of footwear vamp material. Samples are rubbed against known abrasion at low pressures and in continuously changing directions. The unique design allows removal of individual sample holders for examination without lifting the top motion plate.

Compliance Standards
  • ISO 20344 section 6.12
  • ISO 5470-2
  • AS/NZS 2210.2 section 6.12
  • GB/T 20991 section 6.12
  • EN 344-1 section 5.14
  • BS3424.24
  • ASTMD4966
  • SATRA TM31
Technical Specifications
Parameter Specification
Control Mode LCD Counter display
Abradant Table ≥ 125mm
Lissajous Figure 60±1 mm x 60±1 mm
Test Pressure Option A: Specimen holder: (198 ±2)g
Option B: Larger loading piece: (597±5)g
Option C: The sum mass: (795±7)g, for workwear, upholstery, bed linen and fabrics for technical use (nominal pressure of 12kpa)

Alternative Configuration:
Specimen holder: (198 ±2)g
Smaller loading piece: (397±5)g
The sum mass: (595±7)g, for apparel and household textiles, excluding upholstery and bed linen (nominal pressure of 9kpa)
Exposed Area of Specimen Holder 645 ± 5 mm²
Rotational Speed 47.5 ± 2.5 r/min
Pressing Weight Mass: (2.5 ± 0.5) kg, Diameter: (120 ± 10) mm

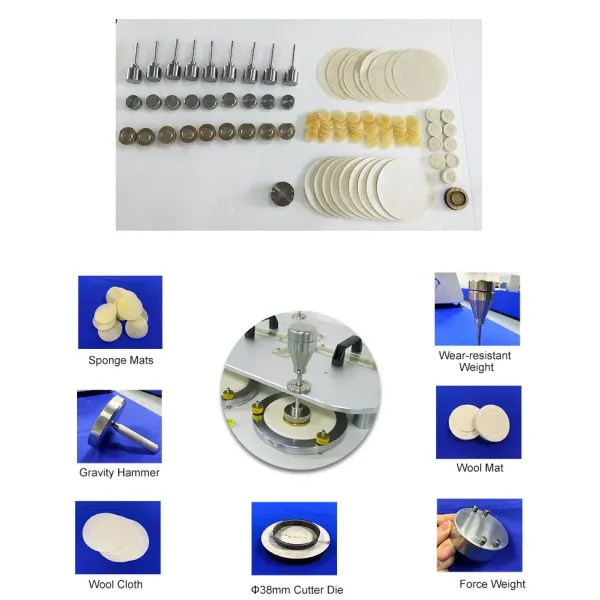

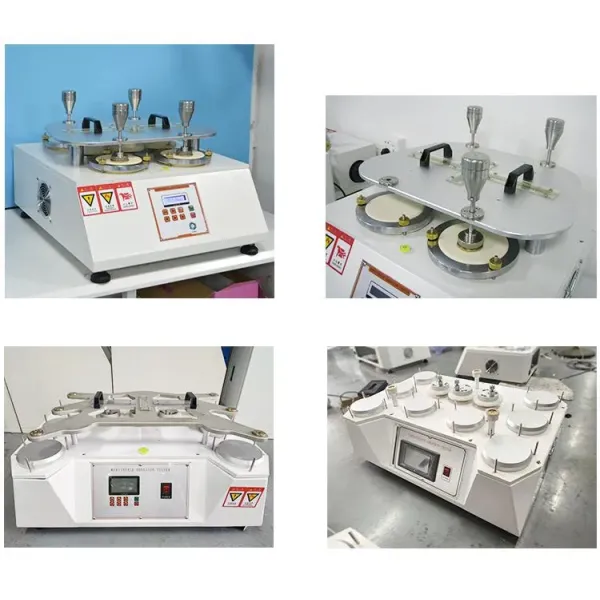

Product Images
Martindale Abrasion And Pilling Tester , Cloth Pilling Tester Machine Martindale Abrasion And Pilling Tester , Cloth Pilling Tester Machine Martindale Abrasion And Pilling Tester , Cloth Pilling Tester Machine
Our Service Process
  • Customer Inquiry: Technical consultation, product recommendations, and quotation based on requirements
  • Customization: Technical drawings, reference photos, and final solution confirmation
  • Production & Delivery: Manufacturing according to specifications, progress photos, calibration, and timely shipping
  • Installation & Support: Field installation and comprehensive after-sales service
Frequently Asked Questions
Manufacturer & Warranty

We are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes 12-month warranty after shipment, with extended coverage for sea transportation. Technical support is available via email or video chat with solutions provided within 24-48 hours.

Delivery Terms

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special arrangement.

Customization Services

We offer both standard and customized machines according to specific requirements, including OEM and ODM services with logo placement.

Installation & Operation

Most machines are shipped fully assembled. English operation manuals and videos are provided via email. On-site installation assistance is available when necessary.
