Precision Calibrated Rubber Testing Equipment Rotary Drum DIN Abrasive Tester
Precision Calibrated Rubber Testing Equipment Rotary Drum DIN Abrasive Tester
Precision Calibrated Rubber Testing Equipment Rotary Drum DIN Abrasive Tester
Precision Calibrated Rubber Testing Equipment Rotary Drum DIN Abrasive Tester
Specifications
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
CHINA
Brand Name :
YOUBI
Certification :
CE,ISO
Payment Terms :
D/P,T/T,Western Unions,Papal,Money Gram
Packaging Details :
Professional export packaging
Delivery Time :
5-15 work days
Supply Ability :
20 Unit/month
Model Number :
UP-1001
Product name :
Rubber Testing Equipment
Model NO. :
UP-1001
Service Support :
OEM ODM
Language :
Chinese and English
Applications :
Rubber,Auto,Leather,Cloth,Fabric...etc
Specification :
Refer to the actual size specifications
MOQ :
1 PCS
Specimen :
φ16mm,6~15mm(D)
Fixture load :
2.5N
Weight load :
2.5N,5N
Description
Precision-Calibrated Rubber Testing Equipment Rotary Drum DIN Abrasive Tester
Product Overview

The DIN Sole Abrasion Testing Machine is designed for abrasion resistance testing of elastic materials including rubber, tires, conveyor belts, transmission belts, soles, soft leather, and synthetic leather. This equipment features high efficiency, excellent reproducibility, and easy operation.

Design Standards

DIN-53516, ISO-4649, GB/T9867

Technical Parameters
Parameter Specification
Specimen φ16mm, 6~15mm (D)
Fixture Load 2.5N
Weight Load 2.5N, 5N
Fixture Lateral Displacement 4.2 ± 0.04mm / wheel every lap
Roller Length 460mm
Roll Diameter 150mm
Rolling Speed 40rpm
Abrasion Speed 0.32m/sec
Volume 95×66×31cm
Weight 50kg
Power 220V 50HZ

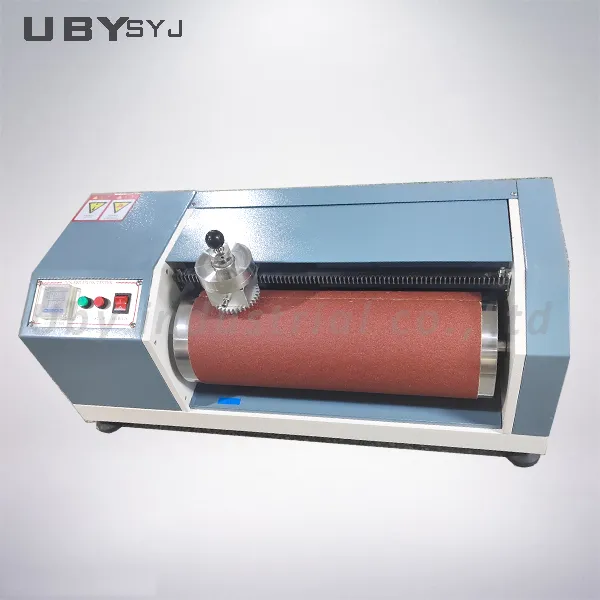

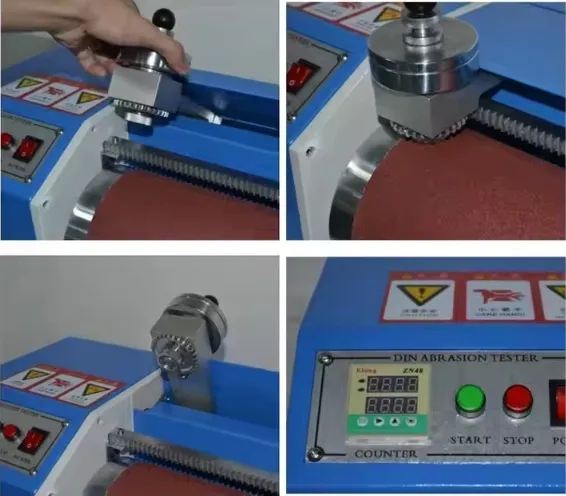

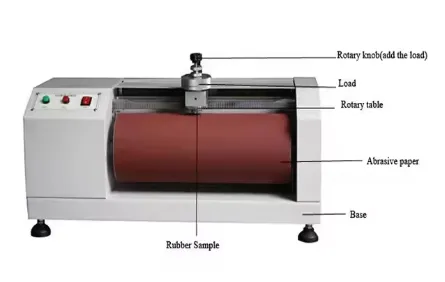

Product Images
Precision Calibrated Rubber Testing Equipment Rotary Drum DIN Abrasive Tester Precision Calibrated Rubber Testing Equipment Rotary Drum DIN Abrasive Tester Precision Calibrated Rubber Testing Equipment Rotary Drum DIN Abrasive Tester
Our Service

We provide comprehensive Consultative Selling services throughout the entire business process:

  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions
  • Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct factory or third-party calibration, and ensure proper packaging
  • Installation and After-Sales: Provide field installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months to account for sea transportation. For technical issues, contact us via email or phone - we provide solutions within 24-48 hours after problem confirmation.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority scheduling.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specifications. We provide OEM and ODM services, including custom branding and logos.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
