Stable Performance Easy-to-Operate High Precision High Altitude Low Pressure Test Chamber for Aerospace and Electronics
Stable Performance Easy-to-Operate High Precision High Altitude Low Pressure Test Chamber for Aerospace and Electronics
Stable Performance Easy-to-Operate High Precision High Altitude Low Pressure Test Chamber for Aerospace and Electronics
Stable Performance Easy-to-Operate High Precision High Altitude Low Pressure Test Chamber for Aerospace and Electronics
Specifications
Model Number :
UP-6114
Delivery Time :
5-15 work days
Place of Origin :
CHINA
Brand Name :
YOUBI
Payment Terms :
T/T,D/P,Western Union,Paypal,
Packaging Details :
Professional Export Wooden Box Packaging
Supply Ability :
30 Unit/month
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Product name :
High Altitude Low Pressure Test Chamber
Model NO. :
UP-6114
Pressure Range :
101kpa~1kpa
Temperature range :
-70~+100ºC(no load);-55~+100ºC(with load)
Temperature fluctuation :
±0.5ºC
Temperature uniformity :
±2ºC
Ambient Humidity :
≤85%RH
Custom Service :
OEM,ODM
Description
Stable Easy-to-Operate Simulation High Altitude Low Pressure Test Chamber
Product Overview
This high altitude low pressure test chamber simulates various altitude environments for testing products and materials under extreme pressure and vacuum conditions.
Key Functions
  • Simulates test environments with various altitude conditions
  • Essential for defense and aerospace applications with intense pressure and vacuum conditions
  • Applications include aviation, aerospace, communications, electronics, and electrical appliances
  • Ensures maximum quality and reliability for products exposed to various altitude levels
Technical Features
  • High performance with quiet operation
  • Space-saving design for flush wall installation
  • External pressure type box body structure with stainless steel tank
  • Rational air circulation system and scientific heating/refrigerating layout
  • International brand imported parts for cooling system reliability
  • High precision performance with touch screen controller and user-friendly interface
  • Multiple safety layers for easy maintenance
Technical Specifications
Internal dimension (W*D*H) 1000*1000*1000mm
Temperature range -70~+100ºC(no load);-55~+100ºC(with load)
Temperature fluctuation ±0.5ºC
Temperature uniformity ±2ºC
Ambient Humidity ≤85%RH
Cooling speed ≥1ºC/min in average (with loading 15kg,+85ºC~-55ºC)
Heating speed 1ºC/min in average (with loading,-55ºC~+85ºC)
Pressure Range 101Kpa~1Kpa
Pressure Accuracy ±5%
Pressure Control Method Adjust temperature first, then pump vacuum
Internal chamber material Steel plate with plastic spray
External chamber material Stainless steel
Cooling method Water Cooler
Controller LCD touch screen, programmable control temperature and pressure
Insulation material Compound material without sweating, special for low pressure
Heating Method Electrical
Compressor Imported new generation with low noise
Safety protection device Protection for leakage, over-temperature, compressor over voltage and overload, heater short circuit

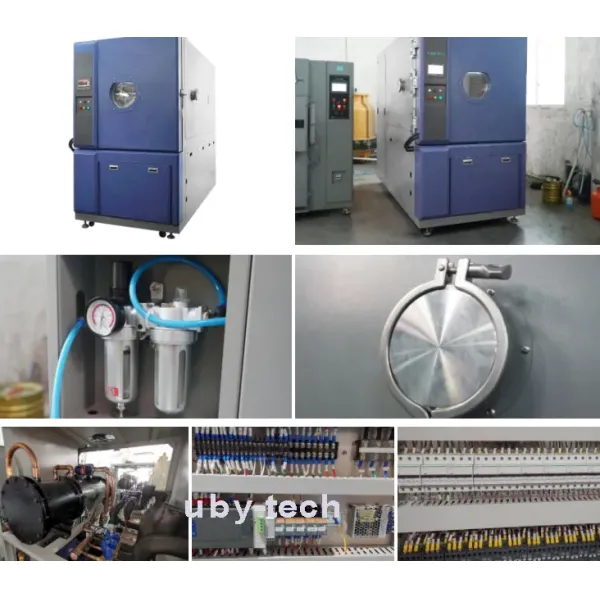

Product Images
Stable Performance Easy-to-Operate High Precision High Altitude Low Pressure Test Chamber for Aerospace and Electronics Stable Performance Easy-to-Operate High Precision High Altitude Low Pressure Test Chamber for Aerospace and Electronics Stable Performance Easy-to-Operate High Precision High Altitude Low Pressure Test Chamber for Aerospace and Electronics
Our Service Process
  • Customer Inquiry: Discuss testing requirements, suggest suitable products, and provide quotes
  • Customization: Create drawings and reference photos for customized requirements, confirm final solution and pricing
  • Production & Delivery: Manufacture according to PO requirements, provide production photos, perform calibration, and arrange shipping
  • Installation & Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. For sea transportation, we extend to 14 months. If your machine requires service, contact us via email or phone for troubleshooting support, with solutions provided within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. No stock: 15-20 working days after payment. Urgent orders receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
