Xenon Accelerated Testing Chamber with 90 ~ 98% RH Humidity Range and PID Self-Tuning Temperature Control for UV-A and UV-B Wavelength Testing
Xenon Accelerated Testing Chamber with 90 ~ 98% RH Humidity Range and PID Self-Tuning Temperature Control for UV-A and UV-B Wavelength Testing
Xenon Accelerated Testing Chamber with 90 ~ 98% RH Humidity Range and PID Self-Tuning Temperature Control for UV-A and UV-B Wavelength Testing
Xenon Accelerated Testing Chamber with 90 ~ 98% RH Humidity Range and PID Self-Tuning Temperature Control for UV-A and UV-B Wavelength Testing
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
CHINA
Brand Name :
YOUBI
Payment Terms :
T/T,D/P,Western Union,Paypal,Money Gram
Packaging Details :
Professional Export Wooden Box Packaging
Supply Ability :
30 Unit/month
Model Number :
UP-6117
Delivery Time :
5-15 work days
Product name :
Constant temperatrue and humidity chamber
Model NO. :
UP-6117
Warranty :
1 Year
Custom Service :
OEM,ODM
Temperature Range :
Normal Temperature ~80ºC
Temperature Control :
Pid Self-Tuning Temperature Control Mode
Temperature Uniformity :
≤±2.0ºC
Temperature Fluctuation :
≤±0.5ºC
Light Center Distance :
70mm
Samples with Light Center Distance :
50mm
Description

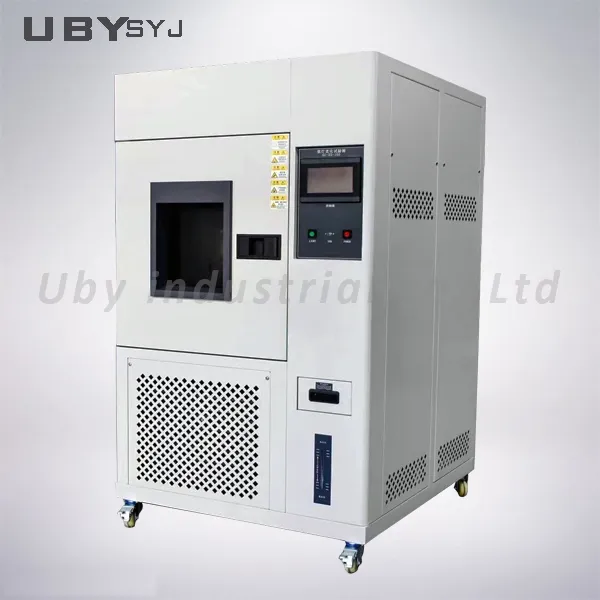

Xenon Accelerated Testing Chamber for Non-Ferrous Organic Rubber Plastic UP-6117

Description:
90 ~ 98% RH Humidity Range Xenon Accelerated Testing Chamber is to test the product undergone illumination/rain/condensation/temperature/humidity/wind and any other climatic changes. This aging tester mainly for the test of non-ferrous/organic/rubber/plastic and building materials. It can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.

Specifications:

Studio Size 750*500*600mm
Dimensions 1350*1200*1750
Temperature range normal temperature ~80ºC
Humidity range light cycle 45% ~ 95% R.H, dark cycle 30% ~ 95% adjustable
Temperature uniformity ≤±2.0ºC
Temperature fluctuation ≤±0.5ºC
Temperature control PID self-tuning temperature control mode
Light center distance 70mm
Samples with light center distance 50mm
Standard Specimen size 75 × 150 mm or 75 × 300 mm
Sink Depth Requirements 25mm, automatic control
Effective radiation area 900 × 210 mm
UV wavelength UV-A wavelength range of 315-400nm; UV-B wavelength range of 280-315nm
Test time 0 ~ 999H, adjustable, UV Gel time alternately adjustable
Blackboard Temperature 45ºC~100ºC
Power supply 3 ∮, AC380V/50HZ
Weight (approximately) about 110kg


Xenon Accelerated Testing Chamber with 90 ~ 98% RH Humidity Range and PID Self-Tuning Temperature Control for UV-A and UV-B Wavelength Testing

Xenon Accelerated Testing Chamber with 90 ~ 98% RH Humidity Range and PID Self-Tuning Temperature Control for UV-A and UV-B Wavelength Testing
Xenon Accelerated Testing Chamber with 90 ~ 98% RH Humidity Range and PID Self-Tuning Temperature Control for UV-A and UV-B Wavelength Testing


Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
