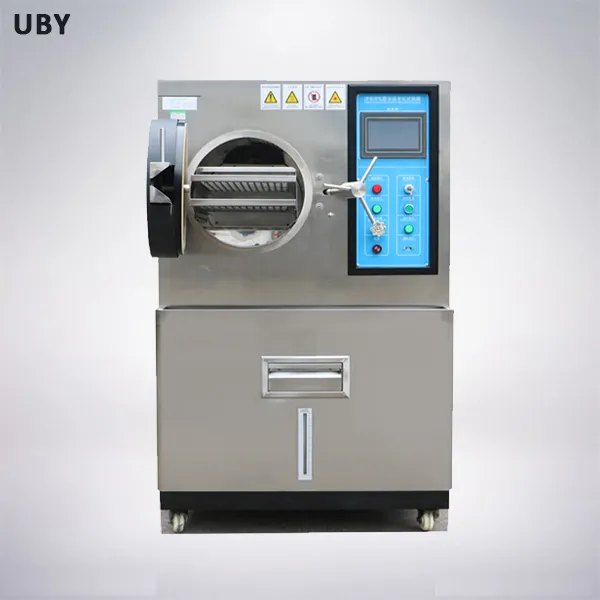

UP-6124 HAST Highly Accelerated Stress Test Chamber , Automatic Reliability Testing Machine
UP-6124 HAST Highly Accelerated Stress Test Chamber , Automatic Reliability Testing Machine
UP-6124 HAST Highly Accelerated Stress Test Chamber , Automatic Reliability Testing Machine
UP-6124 HAST Highly Accelerated Stress Test Chamber , Automatic Reliability Testing Machine
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-6124
Place of Origin :
CHINA
Payment Terms :
T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability :
30 Unit/month
Delivery Time :
5-15 work days
Packaging Details :
Professional Export Wooden Box Packaging
Product name :
Highly Accelerated Stress Test Chamber
Model NO. :
UP-6124
Additional Service :
Support Customer Customization
Size Service :
Support Customer Customization
Third-Party Calibration Service :
Support Customer Customization
Color Service :
Support Customer Customization
Temperature Range :
105ºC~132ºC
Custom Service :
OEM,ODM
Pressure Range :
Table Pressure 0.2~2.0kg/Cm2
Range Humidity :
75%~100%Rh
Warranty :
1 Year
Description

up-6124 High-efficiency HAST Test Chamber Accelerates Reliability Testing of Electronic Components

HAST (Highly Accelerated Stress Test) chambers reduce the time it takes to complete humidity testing for semiconductors. By elevating temperatures above 100°C and increasing the pressure, simulation of normal humidity tests can be made while maintaining the same failure mechanisms. Tests can be completed in days, or weeks. Our HAST systems have a modern design that's easier to use:
1,Automatic humidity filling
2,Automatic door lock
3,A round workspace,allowing wider sample boards to be loaded
4,Convenient,hermetic power-pin system for bias testing
We now offer and "Air HAST" modification for faster testing of lead-free solder whisker resistance to humidity.

Features:
Operation Features
1,Unsaturated or sturated humidity control
2,Multi-mode M system(wet bulb/dry bulb) controls humidity,even during heat-up and cool-down.Fully conforms to EIA/JEDEC Test Method A100 & 102C
3,Touch-screen controller with temperature,humidity,and count-down display.Includes Ethernet Interface.
4,12 specimen power terminals,allows power-up of specimens(12 per workspace on "double" units)
5,Automatic fill of the humidity water at the start of a test.

Cabinet Features:
1,Inner cylinder and door shield protect specimens from dew condensation
2,Interior is cylindrical for maximum product loading
3,Two stainless steel shelves
4,Set casters for easy movement of the chamber(Except double units)
5,Push button door lock
6,Bottom of the unit allows storage space for peripheral equipment.

Product Specification:
Temperature
Range of
Saturated Steam
(Operating temperature)		 (Temperature Rangeof Saturated Steam:100ºC~135ºC) ,Temperature Range: 120ºC,100Kpa/ 133ºC 200 Kpa;(143ºC is special order)
Relative Pressure/
Absolute Pressure		 Relative pressure: display values indicated on the pressure gaugeAbsolute pressure:
Value that add 100 Kpa based on display values indicated on the pressure gauge (The actual value in the inner box)
Humidity of Saturated Steam 100%RH saturation steam humidity
Steam Pressure
(Absolute Pressure)		 101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 (3.0Kg/cm2 is special standard)
Recursive Device Steam Natural convection circulation
Safety Protective Devise Water short storage protect, over pressure protect. (have automatically/manual water replenishing, automatically discharge pressure function )
Accessories Two layers stainless steel plate
Powder AC 220V, 1ph 3 Lines ,50/60HZ ;

UP-6124 HAST Highly Accelerated Stress Test Chamber , Automatic Reliability Testing Machine
UP-6124 HAST Highly Accelerated Stress Test Chamber , Automatic Reliability Testing Machine
UP-6124 HAST Highly Accelerated Stress Test Chamber , Automatic Reliability Testing Machine

Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
