UP-6122 High Precision Controlled Environment Chamber / Intelligently Ozone Aging Test Chamber
UP-6122 High Precision Controlled Environment Chamber / Intelligently Ozone Aging Test Chamber
UP-6122 High Precision Controlled Environment Chamber / Intelligently Ozone Aging Test Chamber
UP-6122 High Precision Controlled Environment Chamber / Intelligently Ozone Aging Test Chamber
UP-6122 High Precision Controlled Environment Chamber / Intelligently Ozone Aging Test Chamber
UP-6122 High Precision Controlled Environment Chamber / Intelligently Ozone Aging Test Chamber
UP-6122 High Precision Controlled Environment Chamber / Intelligently Ozone Aging Test Chamber
UP-6122 High Precision Controlled Environment Chamber / Intelligently Ozone Aging Test Chamber
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
CHINA
Brand Name :
YOUBI
Payment Terms :
T/T,D/P,Western Union,Paypal,Money Gram
Packaging Details :
Professional Export Wooden Box Packaging
Supply Ability :
30 Unit/month
Model Number :
UP-6122
Delivery Time :
5-15 work days
Name :
Ozone Aging Test Chamber
Warranty :
1 Year
Custom Service :
OEM,ODM
Model NO. :
UP-6122
Accuracy :
0.1℃
Temperature Fluctuation :
≤±0.5℃
Temperature Uniformity :
±2℃
Size Service :
Support Customer Customization
Ozone Concentration Accuracy :
10 ~ 1000pphm ± 10%
HS Code :
8514199000
Description
UP-6122 Intelligently High-Precision Controlled Ozone Aging Test Chamber
Product Overview

The UP-6122 High-Precision Intelligently Controlled Ozone Aging Test Chamber is designed for testing the ozone aging resistance of polymer materials and products, particularly rubber. While atmospheric ozone levels are low, ozone remains a primary factor in polymer material aging. This chamber simulates and intensifies atmospheric ozone conditions to achieve results approximating actual use or reproduce test outcomes in significantly reduced timeframes.

This equipment enables the study of ozone effects on rubber products, facilitating rapid identification and evaluation of rubber material resistance to ozone and anti-ozonant protection efficiency. This allows for implementing effective anti-aging measures to extend rubber product service life.

Compliance Standards

JIS K 6259, ASTM1149, ASTM1171, ISO1431, DIN53509, GB/T13642, GB/T 7762-2003, GB 2951

Technical Specifications
Parameter Specification
Model UP-6122
Inner Material SUS 304 stainless steel
Outer Material SPCC Painted
Temperature Range RT+10°C~60°C
Temperature Deviation ±0.5°C (no load)
Temperature Uniformity ±2°C (no load)
Ozone Concentration Range 0~500pphm (or custom made)
Ozone Concentration Deviation 10%
Ozone Flow Rate 12~16mm/s
Sample Shelf Rotating Speed 20~25mm/s
Controller Touch screen programmable controller
Ozone Generator Using voltage silent discharge tube produce ozone
Power AC 380V 3 phase 4 lines

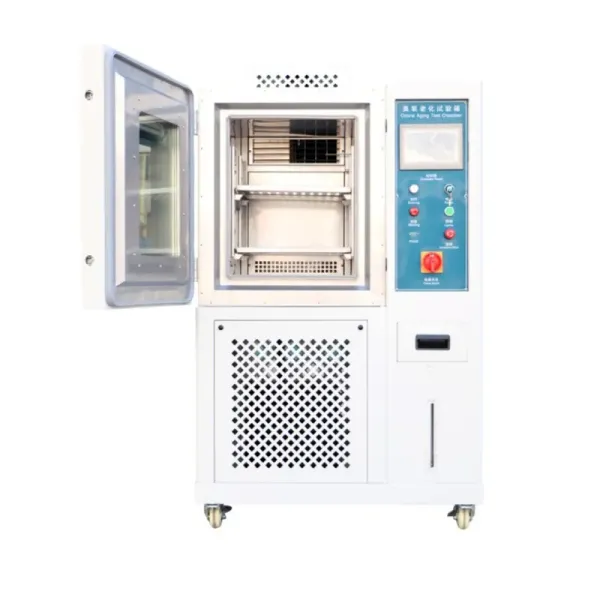

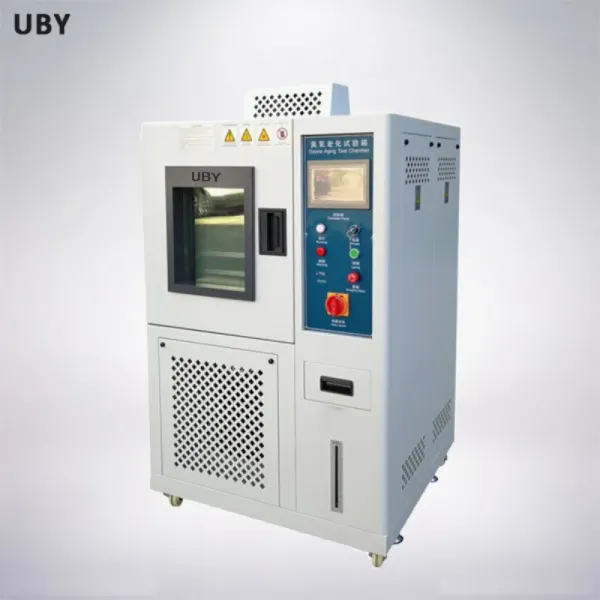

Product Images
UP-6122 High Precision Controlled Environment Chamber / Intelligently Ozone Aging Test Chamber UP-6122 High Precision Controlled Environment Chamber / Intelligently Ozone Aging Test Chamber
Service Process
  • Customer Inquiry: Technical requirement discussion, product recommendations, and quotation based on specifications
  • Customization Process: Technical drawings, product appearance references, and final solution confirmation
  • Production & Delivery: Manufacturing according to PO requirements, production progress updates, factory calibration, and timely shipping
  • Installation & Support: Field installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with 12 months of free maintenance. Considering sea transportation, we extend an additional 2 months for international customers. For technical issues, contact us via email or phone - we provide troubleshooting support through conversation or video chat, with solutions typically provided within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days; Custom orders: 15-20 working days after payment receipt; Expedited arrangements available for urgent requirements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to customer requirements. We provide OEM and ODM services, including custom branding and logo application.

How can I install and use the machine?

We provide comprehensive English operation manuals and videos via email. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
