Low Noise IPX56 Protection Sand And Dust Test Chamber With Programmable Touch Screen Controller
Low Noise IPX56 Protection Sand And Dust Test Chamber With Programmable Touch Screen Controller
Low Noise IPX56 Protection Sand And Dust Test Chamber With Programmable Touch Screen Controller
Low Noise IPX56 Protection Sand And Dust Test Chamber With Programmable Touch Screen Controller
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-6316
Place of Origin :
CHINA
Payment Terms :
T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability :
30 Unit/month
Delivery Time :
10-15 work days
Packaging Details :
Professional Export Wooden Box Packaging
Product name :
Dust and sand proof test chamber
Internal dimensions (mm) :
800*1000*1000
verall dimensions (mm) :
1050*1420*1820
Normal Wire Diameter :
50um
Normal Width of a Gap Between Wires :
75um
The Talcum Powder Amount :
2kg ~ 4kg/M3
Fight Time :
0 ~ 99h59m
Power supply :
380V, 50Hz
Description
up-6316 Low Noise Lab Sand and Dust Test Chamber Ipx56 Protection Test Equipment


Standard: IEC60529


Features:

Test area size is 1000*1000*1000mm D*W*H
Interior material is SUS304 stainless steel
Exterior material is Steel Plate with protective coating, color is blue
Dust is blown in test area by air motor
Dust re-cycle blowing by circulating pump
A heater fixed into test chamber to keep dust dry
Wiper is fitted to view window, window size is 35*45cm
Silicon seal for door
Programmable color display touch screen controller which located on right side of chamber
A stainless steel shelf is fixed above the sieve and funnel
Chamber inside equipped with power interface for test specimen

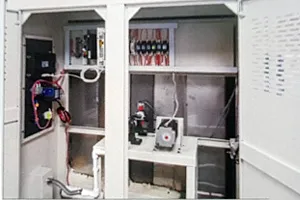

Bottom of chamber is fitted with circulating pump, vacuum pump, motor
Temperature sensor PT-100
Safety protection
Guarantee a long service lifetime
Easy to operate on control panel
380V, 50Hz

Technical Parameters :
Note: Chamber size can be customized according to customer request. We have experience of producing and installing walk in dust chamber.

Internal dimensions (mm)

800*1000*1000

Overall dimensions (mm)

1050*1420*1820

Performance index

Normal wire diameter

50um

Normal width of a gap between wires

75um

The Talcum powder amount

2kg ~ 4kg/m3

Fight time

0 ~ 99H59M

Fan cycle time

0 ~ 99H59M

Specimen power outlet

Dust-proof socket AC220V 16A

Control system

Controller

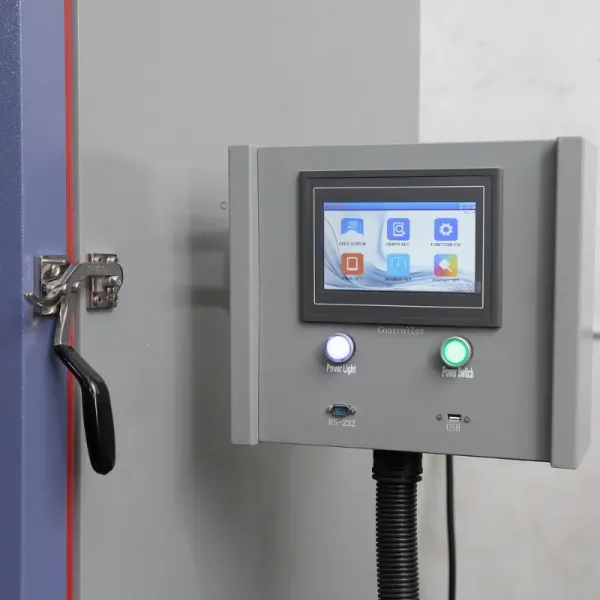

5.7" programmable color display touch screen controller

PC Link with software, R-232 interface

Vacuum system

Equipped with vacuum pump, a pressure gauge, air filter, pressure regulating triple, connecting tube

Circulating fan

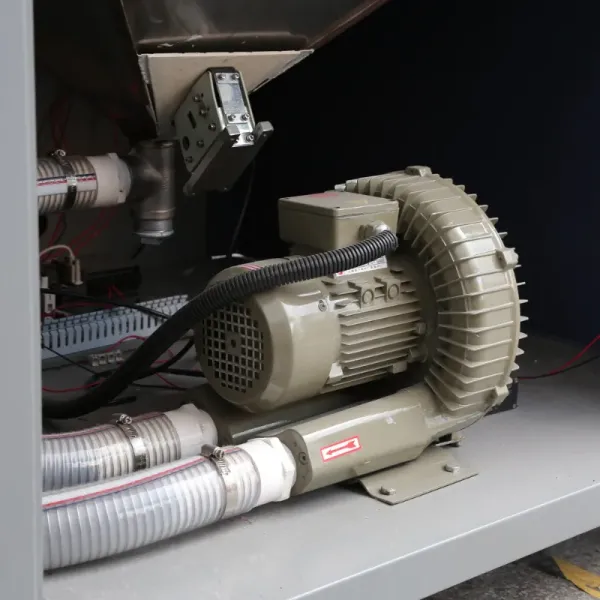

Enclosed alloy low-noise motor, multi-vane centrifugal fan

Heating system

Independent Nichrome electronic heating system

Power supply

380V 50HZ;

Safety Devices

Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller
