UP-6124 Environmental Test Chamber High Pressure Accelerated Ageing Chamber
UP-6124 Environmental Test Chamber High Pressure Accelerated Ageing Chamber
UP-6124 Environmental Test Chamber High Pressure Accelerated Ageing Chamber
UP-6124 Environmental Test Chamber High Pressure Accelerated Ageing Chamber
Specifications
Model Number :
UP-6124
Delivery Time :
5-15 work days
Product name :
Environmental Test Chamber
Model NO. :
UP-6124
Steam Temperature Range :
100ºC~135ºC, (143ºC is optional)
Steam Humidity Range :
70~100%R.H. steam humidity adjustable
Additional Service :
Support Customer Customization
Custom Service :
OEM, ODM
Color Service :
Support Customer Customization
Size Service :
Support Customer Customization
Place of Origin :
CHINA
Brand Name :
YOUBI
Payment Terms :
T/T,D/P,Western Union,Paypal,
Packaging Details :
Professional Export Wooden Box Packaging
Supply Ability :
30 Unit/month
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Description
HAST Electronic Components High Pressure Accelerated Aging Test Chamber
Product Overview

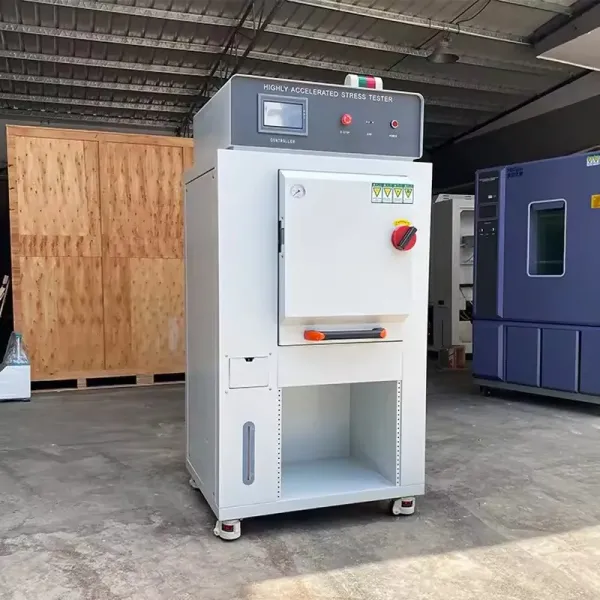

The UP-6124 HAST High Pressure Accelerated Aging Test Chamber is designed for rigorous testing of electronic components under controlled high-pressure steam conditions.

  • Circular liner design prevents test condensation dripping, eliminating direct steam impact on products
  • Double-layer stainless steel product frame with customizable rack options
  • Standard eight test sample signal application terminals, expandable up to 55 bias terminals
  • Specialized sample rack eliminates complex wiring operations
Technical Specifications
Name HAST Accelerated Pressure Aging Test Machine
Model UP-6124A | UP-6124B | UP-6124C
Internal Dimension ΦxD (mm) 350x450 | 450x550 | 550x650
External Dimension (mm) W900xH1350xD900mm | W1000xH1480xD1000 | W1150xH1650xD1200
Steam Temperature Range 100ºC~135ºC (143ºC optional)
Steam Humidity 70~100% R.H. steam humidity adjustable
Recursive Device Steam in forced-circulation
Safety Protective Device Water short storage protect, over pressure protect (automatic/manual water replenishing, automatic discharge pressure function)
Accessories Two layers stainless steel plate
Product Images
UP-6124 Environmental Test Chamber High Pressure Accelerated Ageing Chamber UP-6124 Environmental Test Chamber High Pressure Accelerated Ageing Chamber
Our Service Process
  • Customer Inquiry: Technical consultation and product recommendations with competitive pricing
  • Customization: Detailed drawings and reference photos for specification confirmation
  • Production & Delivery: Production updates, calibration services, and timely shipping
  • Installation & Support: Field installation and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes 12-month warranty after shipment with extended coverage for sea transportation. Technical support is available via email, phone, or video chat with solutions provided within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with logo placement.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
