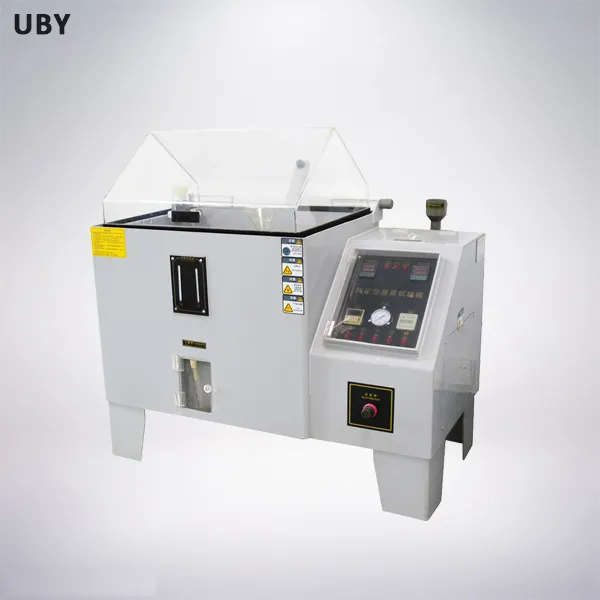

UP-6197 Customized Salt Spray Test Chamber OEM With Remote Monitoring Capability
UP-6197 Customized Salt Spray Test Chamber OEM With Remote Monitoring Capability
UP-6197 Customized Salt Spray Test Chamber OEM With Remote Monitoring Capability
UP-6197 Customized Salt Spray Test Chamber OEM With Remote Monitoring Capability
Specifications
Brand Name :
YOUBI
Model Number :
UP-6197
Place of Origin :
CHINA
Payment Terms :
T/T,D/P,Western Union,Paypal,
Supply Ability :
30 Unit/month
Delivery Time :
5-15 work days
Packaging Details :
Professional Export Wooden Box Packaging
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Product name :
Salt Spray Test Chamber
Color Service :
Support Customer Customization
Size Service :
Support Customer Customization
Third-Party Calibration Service :
Support Customer Customization
Temperature Range :
Rt+5°C~55°C
Brine Temperature :
35°C±1°C
Description
UP-6197 Customized Salt Spray Test Chamber With Remote Monitoring Capability
Product Overview

Salt Spray Corrosion Aging Testing Chamber determines the corrosion resistance of iron metal or inorganic/organic film tests for various industries including automotive electronics, lighting, electrical products, watches, hardware, communication equipment, aerospace, and more. Interior testing chamber can be custom made according to specific application requirements.

Compliance Standards
  • CNS: 3627, 3385, 4159, 7669, 8886
  • JIS: D0201, H8502, H8610, K5400, Z2371
  • ISO: 3768, 3769, 3770
  • ASTM: 8117, B268
Technical Specifications
Parameter UP6197-60 UP6197-90 UP6197-120
Internal Dimension WxHxD (mm) 600x400x450 900x500x600 1200x500x800
External Dimension WxHxD (mm) 1100x600x1200 1400x1200x900 2100x1400x1300
Lab Temperature Saline test (NSS ACSS) 35±1°C; Corrosion Test (CASS) 50±1°C
Pressure Bucket Temperature Saline test method (NSS ACSS) 47±1°C / Corrosion Test (CASS) 63±1°C
Lab Capacity (L) 270 480 640
Saline Capacity (L) 25 40 40
Saline Concentration 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O
Compressed Air Pressure 1.0~6.0 Kgf
Spray Volume 1.0~2.0ml /80cm² /h (working at least 16 hours, and take the average value)

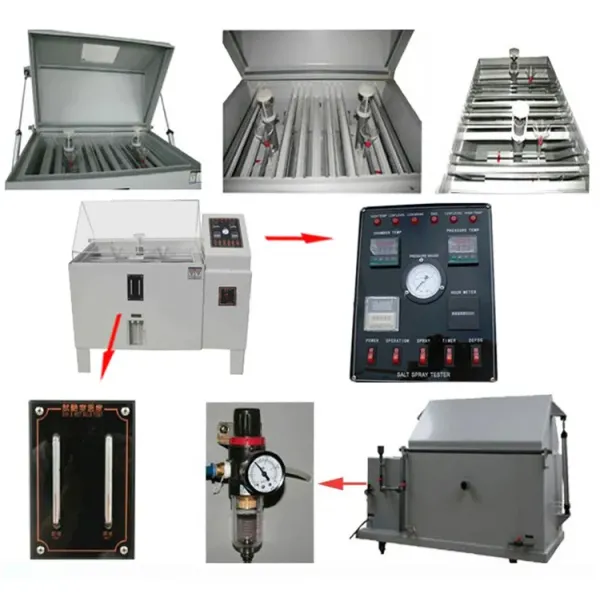

Product Gallery
UP-6197 Customized Salt Spray Test Chamber OEM With Remote Monitoring Capability UP-6197 Customized Salt Spray Test Chamber OEM With Remote Monitoring Capability UP-6197 Customized Salt Spray Test Chamber OEM With Remote Monitoring Capability
Our Service Process
  • Customer Inquiry: Technical consultation and product recommendation with competitive pricing
  • Customization: Detailed drawings and reference photos for specification confirmation
  • Production & Delivery: Production monitoring with progress photos, calibration services, and timely delivery
  • Installation & Support: On-site installation and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? What is your warranty policy?

Yes, we are professional manufacturers of Environmental Chambers and testing equipment. All machines include 12-month warranty with free maintenance, extendable to 14 months considering sea transportation. Technical support available via email, phone, or video chat with solutions provided within 24-48 hours.

What is the delivery time?

Standard machines: 3-7 working days (in stock) or 15-20 working days (no stock). Urgent orders receive special arrangements.

Do you accept customization and OEM services?

Yes, we offer both standard and customized machines according to specific requirements, including OEM and ODM services with logo placement.

How do I install and operate the machine?

Complete operation manuals and videos provided in English. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
