UP-6196 Robust Battery Testing Equipment , Battery Explosion Proof Test Chamber
UP-6196 Robust Battery Testing Equipment , Battery Explosion Proof Test Chamber
UP-6196 Robust Battery Testing Equipment , Battery Explosion Proof Test Chamber
UP-6196 Robust Battery Testing Equipment , Battery Explosion Proof Test Chamber
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Model Number :
UP-6196
Delivery Time :
5-15 work days
Place of Origin :
CHINA
Brand Name :
YOUBI
Payment Terms :
T/T,D/P,Western Union,Paypal,
Packaging Details :
Professional Export Wooden Box Packaging
Supply Ability :
30 Unit/month
Product name :
Battery Explosion Proof Test Chamber
Model NO. :
UP-6196
Test temperature: :
0-100 centigrade
Temperature wave: :
±0.5 centigrade
Temperature rise: :
3 ℃ / min
Temperature cooling: :
1 ℃/min
Power supply: :
380V 50Hz, 1.5KW
Color Service :
Support Customer Customization
Description
UP-6196 Robust Alarm-Equipped Battery Testing Equipment Battery Explosion Proof Test Chamber
Equipment Overview

Battery Explosion Proof Test Chamber is a specialized device designed for testing the safety of batteries, especially lithium-ion batteries. Its core features focus on explosion-proofing and safety protection.

Construction & Materials
  • Outer Box: 1.5mm thick cold rolled sheet with baking finish
  • Inner Box: SUS#201 stainless steel, 1.0mm thickness
  • Door System: Single or double door configuration with stainless steel construction, silicone fastening bar, and observation window
  • Door Mechanism: Strong hinge connection with explosion-proof cold handle door lock
  • Interior: Corrosion-resistant, insulating, flame-retardant tape lining for easy cleaning
  • Wiring: φ50mm circular wire hole on left side (number and direction customizable)
  • Ventilation: Individual test panels per layer with exhaust fans (φ120mm) and exhaust ducts
  • Lighting: Each cabinet layer equipped with observation lighting
  • Insulation: Thermal insulation between layers to prevent testing interference
Product Images

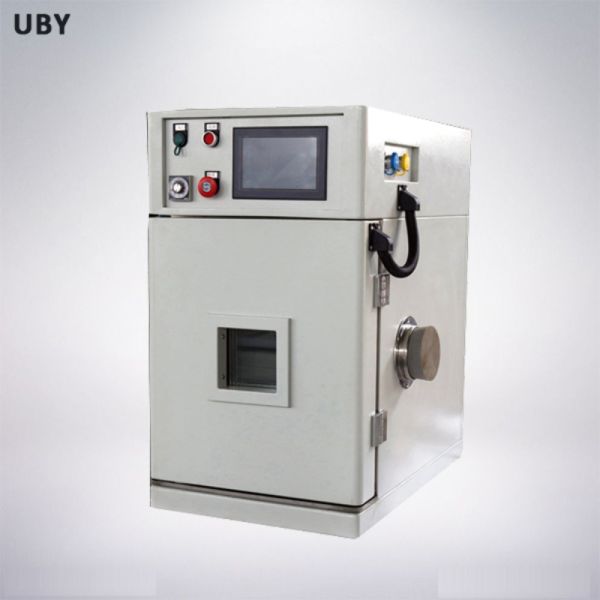

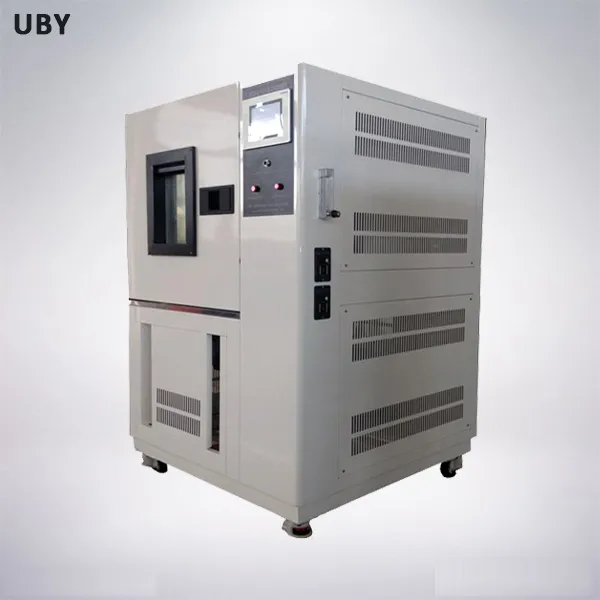

UP-6196 Robust Battery Testing Equipment , Battery Explosion Proof Test Chamber UP-6196 Robust Battery Testing Equipment , Battery Explosion Proof Test Chamber
Our Service Process
Stage Service Details
Customer Inquiry Technical requirement discussion, product recommendation, and quotation based on customer specifications
Customization Technical drawings, reference photos, solution confirmation, and final pricing
Production & Delivery Manufacturing according to PO requirements, production progress photos, calibration services, quality testing, and shipping coordination
Installation & Support Field installation and comprehensive after-sales support services
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with 12 months of free maintenance. Considering sea transportation, we extend this to 14 months for our customers. For technical issues, contact us via email or phone for diagnosis and solutions provided within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority scheduling.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and fully customized machines according to your specifications. We provide OEM and ODM services including custom branding and logos.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
