Dual Zone Impact Temperature Test Chamber With Independent Humidity Control
Dual Zone Impact Temperature Test Chamber With Independent Humidity Control
Dual Zone Impact Temperature Test Chamber With Independent Humidity Control
Dual Zone Impact Temperature Test Chamber With Independent Humidity Control
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-6118
Place of Origin :
CHINA
Payment Terms :
T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability :
30 Unit/month
Delivery Time :
5-15 work days
Packaging Details :
Professional Export Wooden Box Packaging
Product name :
Temperature Test Chamber
Model NO. :
UP-6118
Temperature Range of High-Temperature Ta :
80ºC~200ºC
Temperature Range of Low-Temperature Tan :
-10ºC~75ºC
Humidity Range :
85%Rh
Heating Rate :
3~5ºC/Min
Cooling Rate :
1~1.5ºC/Min
Custom Service :
OEM,ODM
Description

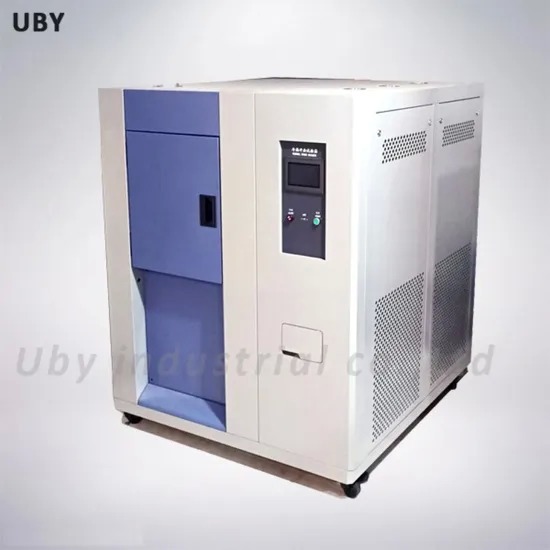

Dual-zone impact temperature test chamber with independent humidity control


Key Features:

1. Adopting true color touch screen display for intuitive and easy operation, with 250 day historical data storage function;
2. Appointment on/off function, end planning settings, automatically save data curves during power outages, etc;3. Real time experimental curve analysis, equipped with RS232 and USB data storage connection;
4. After the experiment, the tested product will automatically return to normal temperature to avoid frost and condensation protection mechanism;
5. Adopting servo refrigerant flow control technology effectively achieves energy savings of over 30%;6. The experimental cycle is conducted, effectively defrosting once every 3 days, and defrosting only takes 2 hours.

Application:Suitable for assembly of battery, vehicles, chemical, aerospace,metal parts,electronics,car spare parts, building materials,communication equipment, plastic rubber products, etc.
Specification:

System

Two-zone test by means of damper switching

Three-zone chamber

Model

UP-6118-50L

UP-6118-100L

Customized

Performance

Test area

High temp. exposure range*1

+60°C to +200°C

Low temp. exposure range*1

-65°C to 0 °C

Temp. fluctuation *2

±1.8°C

Hot chamber

Pre-heat upper limit

+200°C

Temp. heat up time*3

Ambient temp. to +200°C within 30min

Cold chamber

Pre-cool lower limit

-65°C

Temp. pull down time*3

Ambient temp. to -65°C within 70min

Temp. recovery (2-zone)

Recovery conditions

Two-zone: High temp. exposure +125°C 30 min, Low temp. exposure -40°C 30 min; Specimen 6.5 kg (specimen basket 1.5kg)

Temp. recovery time

Within 10 min.

Construction

External material

Cold-rolled rust-proofed steel plate

Test area material

SUS304 stainless steel

Door*4

Manually operated door with unlock button

Heater

Strip wire heater

Refrigeration unit

System*5

Mechanical cascade refrigeration system

Compressor

Hermetically sealed scroll compressor

Expansion mechanism

Electronic expansion valve

Refrigerant

High temp side:R404A, Low temp side R23

Cooler

Stainless steel welded plate heat exchanger

Air circulator

Sirocco fan

Damper driving unit

Air cylinder


Utility requirements


Allowable ambient conditions

+5~30°C

Power supply

AC380V, 50/60Hz, three phase , 30A

Cooling water supply pressure*6

02~0.4Mpa

Cooling water supply rate*6

8m³ /h

Operating cooling water temp. range

+18 to 23 °C

Noise Level

70 dB or lower

Dual Zone Impact Temperature Test Chamber With Independent Humidity Control
Dual Zone Impact Temperature Test Chamber With Independent Humidity Control
Dual Zone Impact Temperature Test Chamber With Independent Humidity Control
Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
