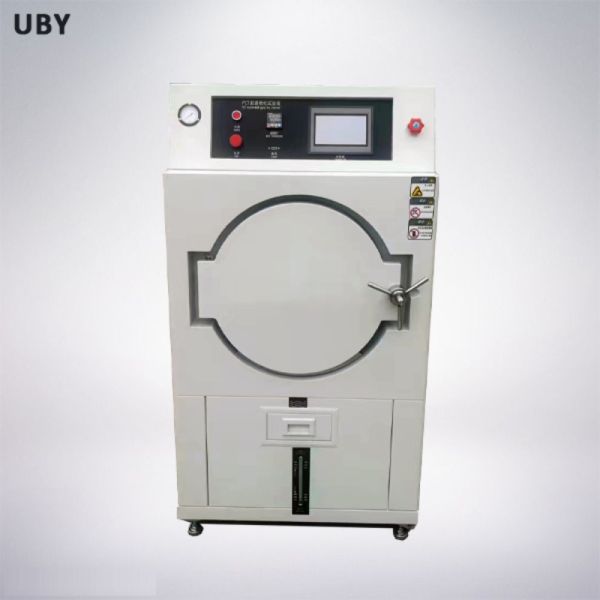

HAST Aging Test Chamber With Automatic Adding Water Function
HAST Aging Test Chamber With Automatic Adding Water Function
HAST Aging Test Chamber With Automatic Adding Water Function
HAST Aging Test Chamber With Automatic Adding Water Function
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
CHINA
Brand Name :
YOUBI
Payment Terms :
T/T,D/P,Western Union,Paypal,Money Gram
Packaging Details :
Professional Export Wooden Box Packaging
Supply Ability :
30 Unit/month
Model Number :
UP-6125
Delivery Time :
5-15 work days
Name :
Accelerated Aging Test Chamber
Model NO. :
UP-6125
Temperature Range :
100ºC~+135ºC
Humidity Range :
100%Rh
Control Accuracy :
≤± 0.5ºC
Temp Uniformity :
<±0.5ºC
Resolution Accuracy :
0.1ºC
Time Scale :
0 to 999 Hours Adjustable
Control Method :
Button or LCD Controller, Optional
Description

Aging Test Chamber With Automatic Adding Water Function

PCT High Pressure Accelerated Aging Test Chamber is to test products and materials in harsh temperatures, saturated humidity (100%R.H.[saturated water vapor] and pressure environment its high humidity resistance test equipment. For example, test the absorption rate of printed circuit board (PCB or FPC), the moisture resistance of semiconductor packaging, the circuit break caused by corrosion in the dynamic metallization area, and the short circuit caused by pollution between the package pins.

Features:
1. Automatic adding water function, and automatic filling water upon the water short storage while testing.
2. Automatic operation to test process finished, easy to use.
3. Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5. Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6. Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7. A integrated silic gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution

Specifications:

Inner Size mm
(Diameter*Height)		 300*500 400*500 300*500 400*500
External Size 650*1200*940 650*1200*940 650*1200*940 750*1300*1070
Temp Range 100ºC ~ +132ºC
saturated-steam temperature		 100ºC ~ +143ºC
saturated-steam temperature
Pressure Range 0.2~2kg/cm2(0.05~0.196MFa) 0.2~3kg/cm2(0.05~0.294MPa
Pressurization Time About 45min About 55min
Temp Uniformity <±0.5ºC
Temp Fluctuation ≤±0.5ºC
Humidity Range 100% R.H (saturated-steam humidity)
Controller Button or LCD controller, optional
Resolution Temp: 0.01ºC Humidity: 0.1% RH, Pressure 0.1kg/cm2, Voltage: 0.01DCV
Temp Sensor PT-100 ohnΩ
External Material SUS 304 with Painting coating
Internal Material SUS 304 with Glass Wool
BIAS Terminal Optional, with extra cost, please contact OTS
Power 3 Phase 380V 50Hz/ customized
Safety System Sensor protection; Phase 1 High temp protection; Phase 1 High pressure protection; Voltage overload; Voltage monitoring; Manual
adding water; Automatic depressurize and automatic water withdraw when machine in fault; Fault code displays for checking
solution; Fault in record; Grounding wire leakage; Motor overload protection;

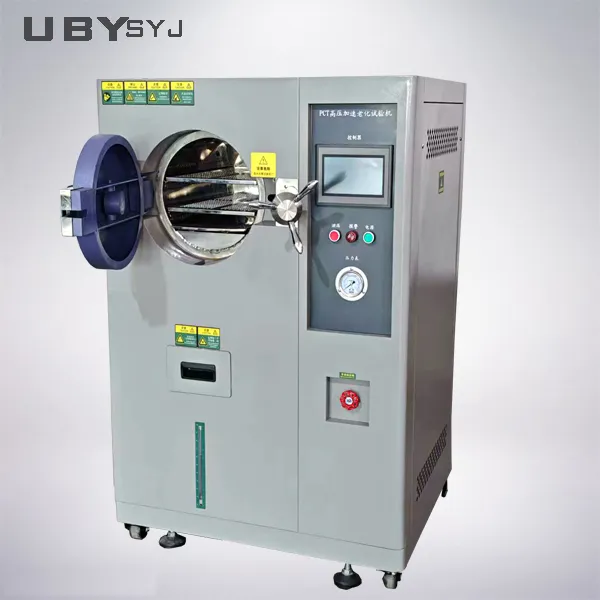

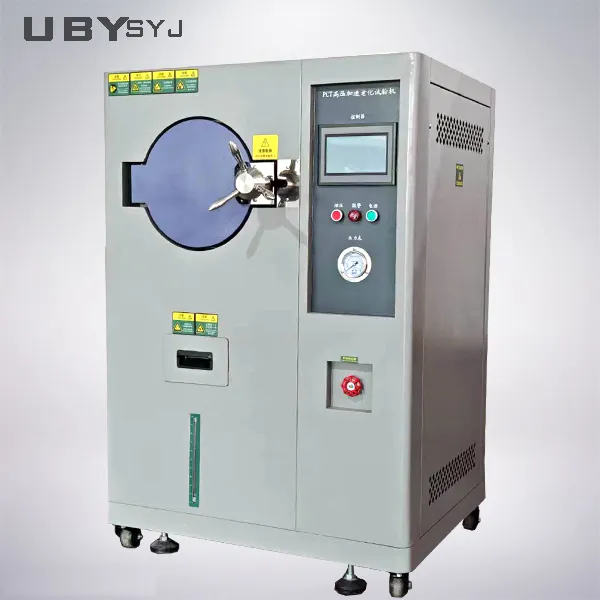

HAST Aging Test Chamber With Automatic Adding Water Function
HAST Aging Test Chamber With Automatic Adding Water Function

Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
