UP-6200 Vertical Tower UV Weathering Tester with UVA-340/UVB-313 Lamps and 0.26~1.13 W/m² Adjustable Irradiance in SUS#304 Stainless Steel
UP-6200 Vertical Tower UV Weathering Tester with UVA-340/UVB-313 Lamps and 0.26~1.13 W/m² Adjustable Irradiance in SUS#304 Stainless Steel
UP-6200 Vertical Tower UV Weathering Tester with UVA-340/UVB-313 Lamps and 0.26~1.13 W/m² Adjustable Irradiance in SUS#304 Stainless Steel
UP-6200 Vertical Tower UV Weathering Tester with UVA-340/UVB-313 Lamps and 0.26~1.13 W/m² Adjustable Irradiance in SUS#304 Stainless Steel
UP-6200 Vertical Tower UV Weathering Tester with UVA-340/UVB-313 Lamps and 0.26~1.13 W/m² Adjustable Irradiance in SUS#304 Stainless Steel
UP-6200 Vertical Tower UV Weathering Tester with UVA-340/UVB-313 Lamps and 0.26~1.13 W/m² Adjustable Irradiance in SUS#304 Stainless Steel
Specifications
HS Code :
8514199000
Model Number :
UP-6200
Model NO. :
UP-6200
Brand Name :
YOUBI
UV Irradiance Range :
0.26~1.13 W/m² adjustable
Warranty :
1 Year
MOQ :
1
Delivery Time :
10~20 work days
Temperature Fluctuation :
±0.5ºC
Payment Terms :
D/P,T/T,Western Union
Custom Service :
OEM,ODM
Supply Ability :
20 Unit/month
Materials :
SUS#304 Stainless Steel
Price :
Negotiable
UV Light Source :
UVA-340 / UVB-313 fluorescent UV lamp (customizable)
Certification :
CE, ISO
Temperature Uniformity :
±2ºC
Place of Origin :
CHINA
Temperature Range :
Rt+10ºC~70ºC
Packaging Details :
Professional export wooden packaging
Description
UP-6200 Vertical Tower UV Weathering Tester Auto Cycle Irradiation Condensation Test Chamber
Product Overview

The UP-6200 Vertical Tower UV Weathering Tester simulates real outdoor ultraviolet sunlight, rain, and dew environments to quickly evaluate material weathering resistance. It utilizes professional UV fluorescent lamps as light sources and features automatic cycling of UV irradiation, condensation humidification, and temperature control, significantly shortening material aging test periods.

Equipped with an intelligent touch controller for stable operation, easy programming, and data storage, this chamber is widely used for raw material incoming inspection and finished product weather resistance verification across various industries.

Compliance Standards
  • ASTM G154 - Standard Practice for Operating Fluorescent Ultraviolet (UV) Lamp Apparatus for Exposure of Nonmetallic Materials
  • ASTM G53 - Standard Practice for Operating Light-Exposure Apparatus (Fluorescent UV-Condensation Type) for Exposure of Nonmetallic Materials
  • ISO 4892-3 - Plastics - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps
  • GB/T 16422.3 - China National Standard Plastics laboratory light exposure test
  • JIS K5600 - Japanese paint UV aging test standard
  • SAE J2020 - Automotive exterior material fluorescent UV aging test standard
Technical Specifications
Item Standard Parameter
Model UV Accelerated Aging Test Chamber (Tower Type)
Internal Test Size 450×1100×380 mm (W×H×D)
External Cabinet Size 650×1520×600 mm
UV Light Source UVA-340 / UVB-313 fluorescent UV lamp (customizable)
Lamp Power 40W per lamp, total 8 lamps installed
UV Irradiance Range 0.26~1.13 W/m² adjustable
Temperature Control Range Irradiation stage: 45℃ ~ 80℃; Condensation stage: 40℃ ~ 60℃
Temperature Control Accuracy ±0.5℃, Uniformity ≤±2℃
Condensation Humidity ≥95%RH (automatic pure water heating condensation)
Controller 7-inch touch screen intelligent controller
Program Storage Max 100 groups test programs
Communication Interface RS485 (support PC data export)
Protection Device Over temperature, water shortage, door interlock, emergency stop, overload protection
Power Supply AC220V / 380V 50Hz (customized for different countries)
Machine Weight About 180 KG
Optional Accessories UV irradiance meter, extra spare UV lamps, sample test racks

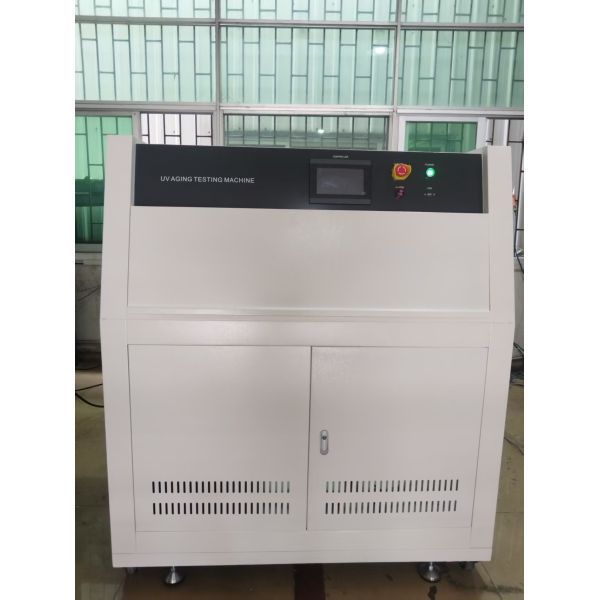

Product Images
UP-6200 Vertical Tower UV Weathering Tester with UVA-340/UVB-313 Lamps and 0.26~1.13 W/m² Adjustable Irradiance in SUS#304 Stainless Steel UP-6200 Vertical Tower UV Weathering Tester with UVA-340/UVB-313 Lamps and 0.26~1.13 W/m² Adjustable Irradiance in SUS#304 Stainless Steel UP-6200 Vertical Tower UV Weathering Tester with UVA-340/UVB-313 Lamps and 0.26~1.13 W/m² Adjustable Irradiance in SUS#304 Stainless Steel UP-6200 Vertical Tower UV Weathering Tester with UVA-340/UVB-313 Lamps and 0.26~1.13 W/m² Adjustable Irradiance in SUS#304 Stainless Steel
Our Service Process

Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.

Specifications Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solutions and pricing.

Production and Delivery Process: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange timely shipping.

Installation and After-Sales Service: Provide installation support and comprehensive after-sales services.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased includes a 12-month warranty after shipment, with free maintenance during this period. Considering sea transportation, we extend an additional 2 months for our customers.

If your machine experiences issues, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days

For non-stock items: 15-20 working days after payment receipt

We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email upon order completion. Most machines are shipped fully assembled - simply connect the power cable to begin use. When necessary, we offer on-site installation assistance.
