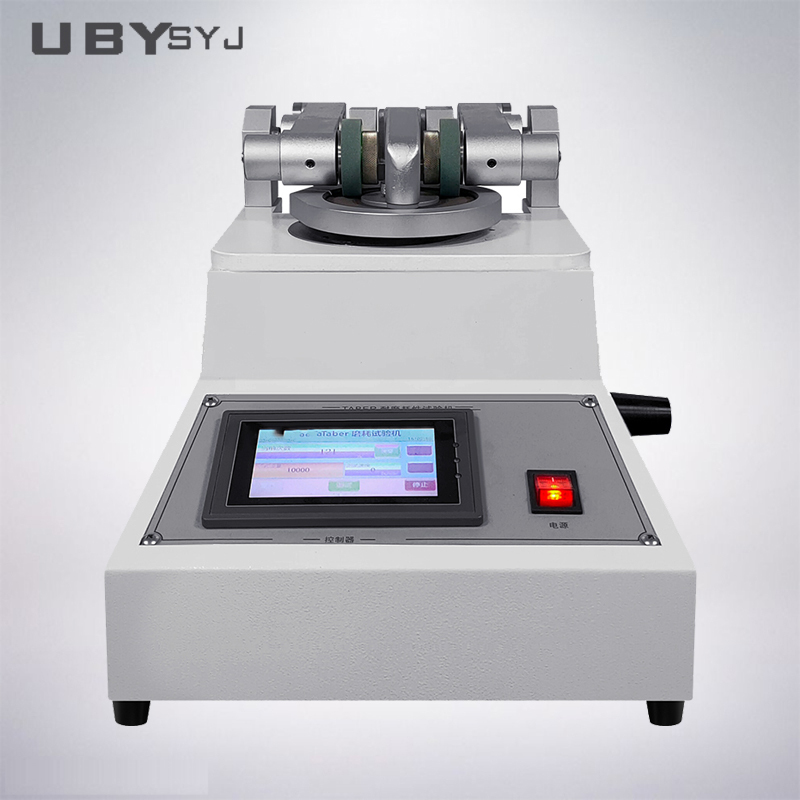

Digital Taber Abrasion Tester with Interchangeable Abrasive Wheels 60 RPM UP-1010
Product Introduction

The Taber Abrasion Tester is an instrument designed for evaluating the wear resistance of materials through accelerated rotary abrasion testing. The test specimen is mounted on a rotating turntable, while two abrasive wheels with specified loads are applied to the sample surface. As the turntable rotates, the wheels abrade the material in a unique X-pattern, simulating wear in all directions relative to any potential grain or weave.

The abrasion resistance is quantified by measuring mass loss, thickness loss, or visual changes after a set number of cycles. This instrument provides reliable, repeatable data and is essential for quality control, R&D, and material certification across diverse industries.

Compliance Standards
  • ASTM D4060: Standard Test Method for Abrasion Resistance of Organic Coatings by the Taber Abraser
  • ASTM D1044 / D3884: Standard Test Methods for Abrasion Resistance of Plastics / Textiles
  • ISO 9352 / ISO 5470-1: Plastics / Rubber- or plastics-coated fabrics - Abrasion resistance testing
  • JIS K7204 / JIS L1096 / JIS A1453: Japanese industrial standards for plastics, textiles, and floor coverings
  • DIN 53754 / 53109 / 52347: German industrial standards for abrasion testing
  • TAPPI T476: Abrasion resistance of paper and paperboard
Technical Specifications
Item Specification
Test Method Rotary Abrasion
Turntable Speed 60 ± 2 RPM or 72 ± 2 RPM (Selectable)
Standard Loads 250 g, 500 g, 750 g, 1000 g per wheel (includes arm weight)
Specimen Size Outer Diameter: approx. 100-110 mm; Center Hole: 6.5-8 mm diameter
Specimen Thickness Up to 6 mm (max, depending on accessories)
Abrasive Wheels Various Calibrase® wheels available (e.g., CS-10, CS-17, H-18, H-22) depending on material
Wheel Center Distance 63.5 mm (standard configuration)
Counter LCD Digital, 0 - 999,999 cycles, auto-stop
Vacuum System Built-in or external vacuum cleaner to remove debris
Power Supply AC 220V, 50/60Hz, Single Phase
Machine Dimensions Approx. 55 × 38 × 47 cm (varies by model)
Machine Weight Approx. 30 - 50 kg (varies by model)
Digital Taber Abrasion Tester with 60 RPM Speed and Interchangeable Abrasive Wheels for Wear Resistance Testing Digital Taber Abrasion Tester with 60 RPM Speed and Interchangeable Abrasive Wheels for Wear Resistance Testing Digital Taber Abrasion Tester with 60 RPM Speed and Interchangeable Abrasive Wheels for Wear Resistance Testing
Our Service Commitment

During the entire business process, we offer consultative selling services:

  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization: Create detailed drawings for customized requirements, provide reference photos, and confirm final solutions
  • Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation and After-Sales: Provide field installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation.

If your machine requires service, you can contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For out-of-stock items: 15-20 working days after payment receipt. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply connect the power cable and begin operation. When necessary, we can assist with on-site installation.
