Programmable Linear Rapid Temperature Change Test Chamber with 1℃-15℃/min Rate and -70℃ ~ +150℃ Range
Programmable Linear Rapid Temperature Change Test Chamber with 1℃-15℃/min Rate and -70℃ ~ +150℃ Range
Programmable Linear Rapid Temperature Change Test Chamber with 1℃-15℃/min Rate and -70℃ ~ +150℃ Range
Programmable Linear Rapid Temperature Change Test Chamber with 1℃-15℃/min Rate and -70℃ ~ +150℃ Range
Programmable Linear Rapid Temperature Change Test Chamber with 1℃-15℃/min Rate and -70℃ ~ +150℃ Range
Programmable Linear Rapid Temperature Change Test Chamber with 1℃-15℃/min Rate and -70℃ ~ +150℃ Range
Specifications
Custom Service :
OEM,ODM
Model Number :
UP-6195
Temperature Uniformity :
≤±1.0℃
MOQ :
1 Unit
Delivery Time :
5~15 work days
Temperature Range :
-70℃ ~ +150℃ (Optional)
Payment Terms :
T/T; D/P; Wester Union; Paypal;
Packaging Details :
Professional Export Wooden Box Packaging
Cooling Time :
10°C/min (non-linear，no load)
Brand Name :
YOUBI
Temperature Fluctuation :
≤±0.5℃
Place of Origin :
CHINA
Warranty :
1 Year
Price :
$5999~$9999
Product name :
Linear Rapid Temperature Change Test Chamber
Supply Ability :
20 Unit/month
Linear Temp. Change Rat :
1℃-15℃/min (Linear continuous ramp, customizable)
Certification :
CE,ISO
Description
Thermal Cycling Test Chamber Programmable Linear Rapid Temperature Change Test Chamber UP-6195
Product Overview

This linear rapid temperature change chamber utilizes advanced air circulation temperature control technology to achieve continuous linear temperature rising and falling without step pauses. The equipment features fast temperature change rates, high temperature uniformity, and stable performance.

The closed-loop control system ensures precise temperature variation, making it ideal for reliability screening, stress testing, and quality verification of electronic components and finished products. Customized temperature ranges, temperature change rates, and internal chamber sizes are available to meet specific testing requirements.

Compliance Standards
  • IEC 60068-2-1 (Environmental testing - Temperature test)
  • IEC 60068-2-2 (Environmental testing - Dry heat test)
  • IEC 60068-2-14 (Temperature cycling test)
  • GB/T 2423.1-2, GB/T 2423.22
  • MIL-STD-810H Temperature cycle test
Applications

Suitable for reliability testing of automotive electronics, new-energy battery components, semiconductor chips, PCB boards, optoelectronic devices, communication modules, aerospace parts, and household electrical appliances. Applied in R&D verification, production screening, and batch quality inspection for electronic and electrical industries.

Technical Specifications
Item Specification
Temperature Range -70℃ ~ +150℃ (Optional)
Linear Temp. Change Rate 1℃-15℃/min (Linear continuous ramp, customizable)
Temperature Uniformity ≤±1.0℃
Temperature Fluctuation ≤±0.5℃
Refrigeration System Air-cooled / Water-cooled cascade refrigeration
Control System PLC + Touch-screen controller, programmable ramp soak function
Safety Protection Over-temp protection, overload protection, low-pressure alarm, power-failure recovery function
Power Supply AC380V±10% 50Hz 3 phase / Customized

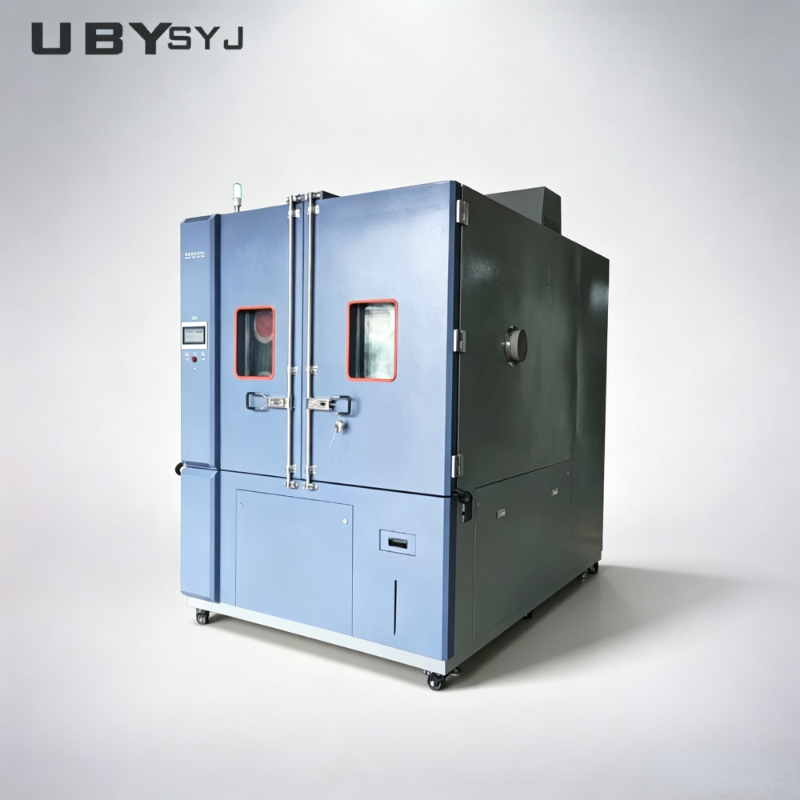

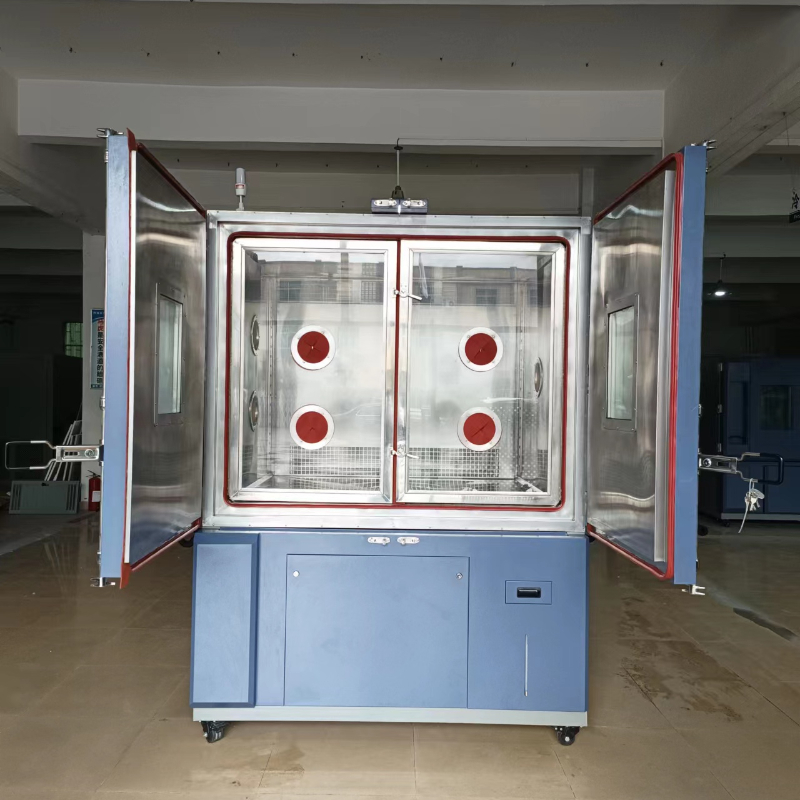

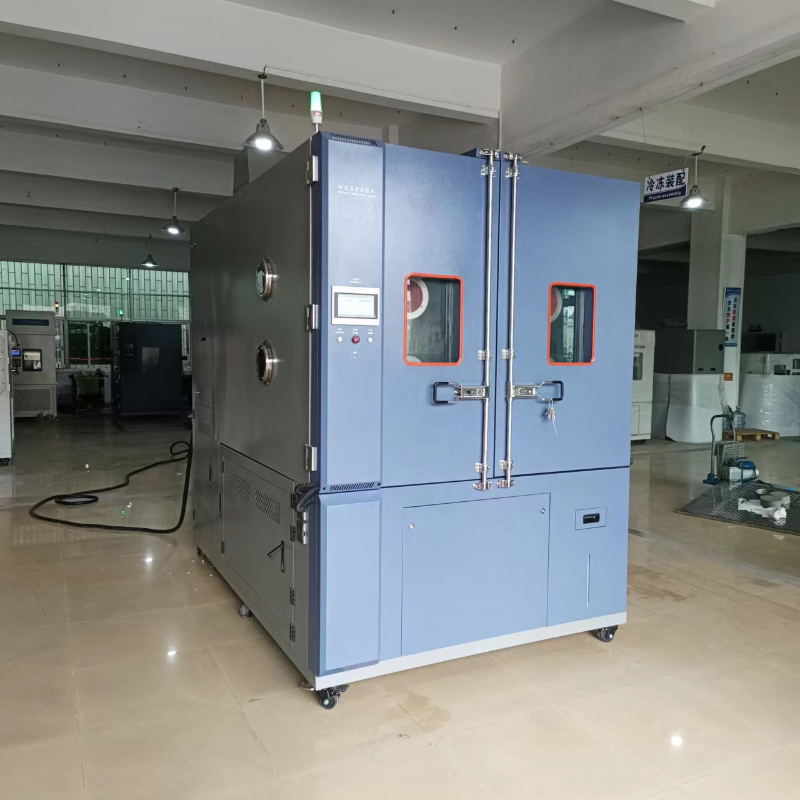

Product Images
Programmable Linear Rapid Temperature Change Test Chamber with 1℃-15℃/min Rate and -70℃ ~ +150℃ Range Programmable Linear Rapid Temperature Change Test Chamber with 1℃-15℃/min Rate and -70℃ ~ +150℃ Range Programmable Linear Rapid Temperature Change Test Chamber with 1℃-15℃/min Rate and -70℃ ~ +150℃ Range
Our Service

We provide comprehensive Consultative Selling services throughout the entire business process:

Customer Inquiry Process

Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.

Specifications Customization Process

Create detailed drawings for customized requirements, provide reference photos, and confirm final solutions and pricing.

Production and Delivery Process

Manufacture according to confirmed PO requirements, provide production progress photos, conduct factory or third-party calibration, and ensure proper packaging and timely delivery.

Installation and After-Sales Service

Provide field installation services and comprehensive after-sales support.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with FREE maintenance during this period. We extend an additional 2 months to account for sea transportation. For technical issues, contact us via email or phone - we provide solutions within 24 to 48 hours after problem confirmation.

What about the delivery term?

Standard machines in stock: 3-7 working days. Out-of-stock items: 15-20 working days after payment. Urgent requirements receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin use. On-site installation assistance is available when necessary.
