Large Capacity Rapid Temperature Cycle Test Chamber with 10℃/min Non-linear and Water Cooled System
Large Capacity Rapid Temperature Cycle Test Chamber with 10℃/min Non-linear and Water Cooled System
Large Capacity Rapid Temperature Cycle Test Chamber with 10℃/min Non-linear and Water Cooled System
Large Capacity Rapid Temperature Cycle Test Chamber with 10℃/min Non-linear and Water Cooled System
Large Capacity Rapid Temperature Cycle Test Chamber with 10℃/min Non-linear and Water Cooled System
Large Capacity Rapid Temperature Cycle Test Chamber with 10℃/min Non-linear and Water Cooled System
Specifications
Model Number :
UP-6195
Custom Service :
OEM,ODM
MOQ :
1 Unit
Delivery Time :
5~15 work days
Temperature Uniformity :
±2.0℃
Payment Terms :
T/T; D/P; Wester Union; Paypal;
Heating Time :
10°C/min (non-linear，no load)
Brand Name :
YOUBI
Product name :
Constant temperatrue and humidity chamber
Packaging Details :
Professional Export Wooden Box Packaging
Place of Origin :
CHINA
Temperature Range :
-60ºC~180ºC
Price :
$5999~$9999
Temperature Accuracy :
±0.1ºC
Supply Ability :
20 Unit/month
Cooling Time :
10°C/min (non-linear，no load)
Certification :
CE,ISO
Warranty :
1 Year
Description
Rapid Temperature Cycle Test Chamber Water Cooled 10℃/min Non-linear UP-6195
Product Overview

Large-capacity rapid temperature change test chamber is a high-performance environmental testing equipment customized for industrial high-standard temperature cycling and rapid temperature shock tests. Adopting water-cooled refrigeration system and non-linear fast temperature change technology, it achieves a stable temperature change rate of 10℃/min, supporting fast cooling from 80℃ to -40℃ and fast heating from -40℃ to 80℃.

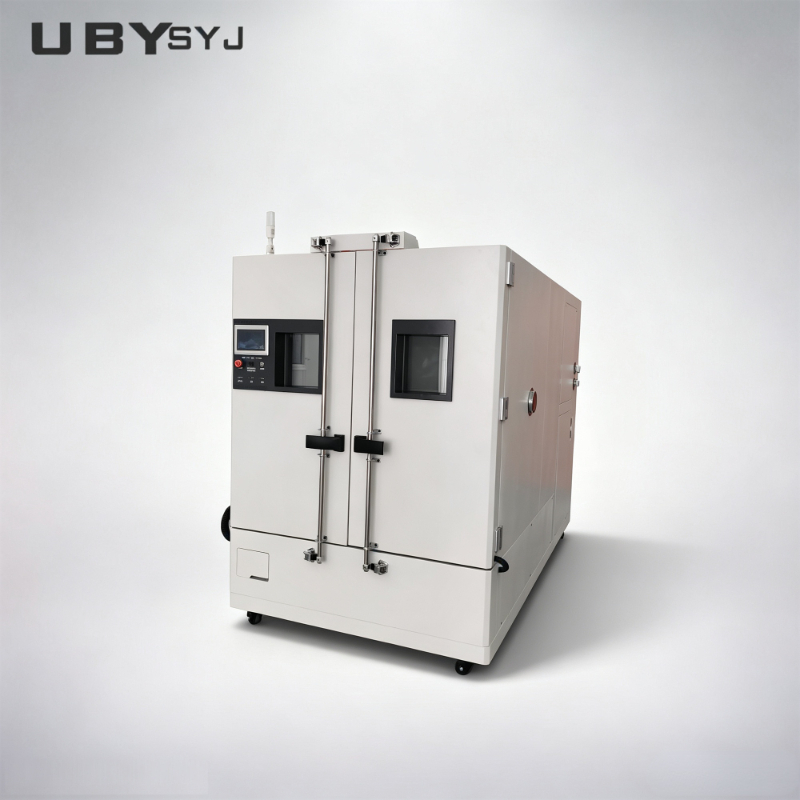

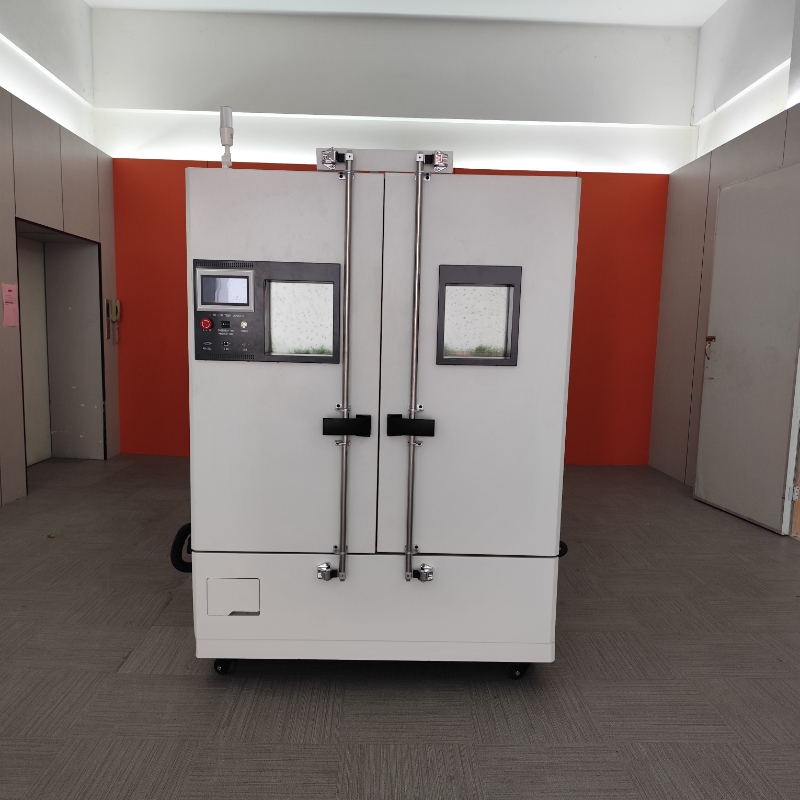

The equipment features a dual-door integrated structure with a 1.2m×1.2m×1.2m inner cavity, large test space, stable operation and high test repeatability. It is widely applied for environmental stress screening, temperature durability and reliability testing of electronic components, automotive parts, new energy products and industrial materials.

Applications

Suitable for reliability testing and quality inspection of various industries, including:

  • Consumer electronics
  • Automotive electronic parts
  • New energy batteries and components
  • Aerospace accessories
  • Communication equipment
  • Hardware materials
  • Plastic and rubber products
  • Precision instruments

It meets environmental stress screening (ESS), temperature cycle test and rapid temperature change aging test requirements.

Technical Specifications
Item Technical Specification & Custom Requirement

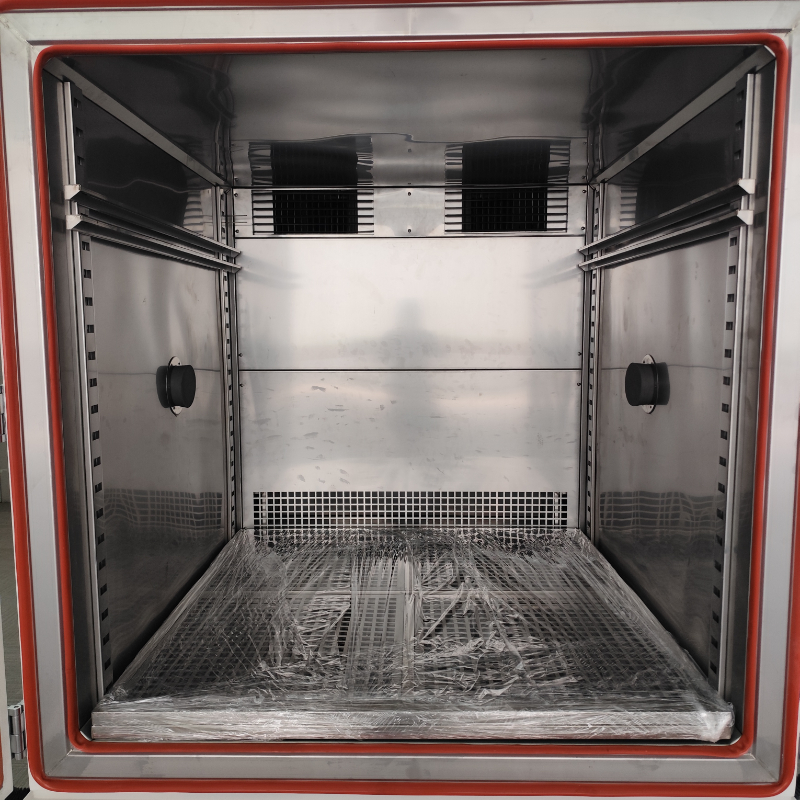

Internal Chamber Size 1.2m × 1.2m × 1.2m (Customized)
Chamber Volume 1728L
Door Structure Double open door design
Temperature Range -60℃ ~ +180℃ (Adjustable)
Heating Time 10°C/min (non-linear, no load)
Cooling Time 10°C/min (non-linear, no load)
Cooling Method Water cooling system
Reserved Test Holes Two 100mm diameter holes (left and right side each one)
Network Configuration Equipped with 50 meters network cable
Computer Configuration Comes with one set of non-brand industrial computer
Chamber Height from Floor 620mm distance between chamber bottom and ground floor
Controller Installation Position Installed on the upper part of the left door
Power Supply 380V/50Hz, 48KW/100A (Standard industrial power)
Product Gallery
Large Capacity Rapid Temperature Cycle Test Chamber with 10℃/min Non-linear and Water Cooled System Large Capacity Rapid Temperature Cycle Test Chamber with 10℃/min Non-linear and Water Cooled System Large Capacity Rapid Temperature Cycle Test Chamber with 10℃/min Non-linear and Water Cooled System
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide pricing
  • Specifications Customization: Create drawings for customized requirements, provide reference photos, and confirm final solution
  • Production and Delivery: Manufacture according to confirmed requirements, provide production photos, perform calibration, and arrange shipping
  • Installation and After-Sales: Provide installation support and ongoing after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. We offer 12 months for FREE maintenance, extended to 14 months considering sea transportation. If your machine doesn't work, contact us via email or phone - we'll diagnose the problem and provide solutions within 24 to 48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment. Special arrangements available for urgent needs.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services including placing your logo on the machine.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you just need to connect the power cable and start using. On-site installation assistance is available when necessary.
