Computer Control Peel Strength Tester with 600 mm Test Stroke and Class 1 Accuracy Universal Testing Machine
Computer Control Peel Strength Tester with 600 mm Test Stroke and Class 1 Accuracy Universal Testing Machine
Computer Control Peel Strength Tester with 600 mm Test Stroke and Class 1 Accuracy Universal Testing Machine
Computer Control Peel Strength Tester with 600 mm Test Stroke and Class 1 Accuracy Universal Testing Machine
Computer Control Peel Strength Tester with 600 mm Test Stroke and Class 1 Accuracy Universal Testing Machine
Computer Control Peel Strength Tester with 600 mm Test Stroke and Class 1 Accuracy Universal Testing Machine
Specifications
Model Number :
UP-2001
Control :
Computer Control
MOQ :
1 Unit
Delivery Time :
5-15 work days
Product name :
Tensile Tester Equipment
Power Source :
AC110-220V
Payment Terms :
T/T,D/P,Western Union,Paypal
Load Capacity :
2-200KG (Optional)
Brand Name :
YOUBI
Test Speed Range :
10~500 mm/min
Packaging Details :
Professional Export Wooden Box Packaging
Delivery Terms :
CIF, DDP, DDU, FedEx, DHL, FOB
Place of Origin :
CHINA
Accuracy Grade :
1
Price :
Negotiable
Effective Test Stroke :
600 mm
Certification :
CE,ISO
Test Force Range :
0.4%~100% FS
Supply Ability :
30 Unit/month
Force Accuracy :
Within±0.5%
Description

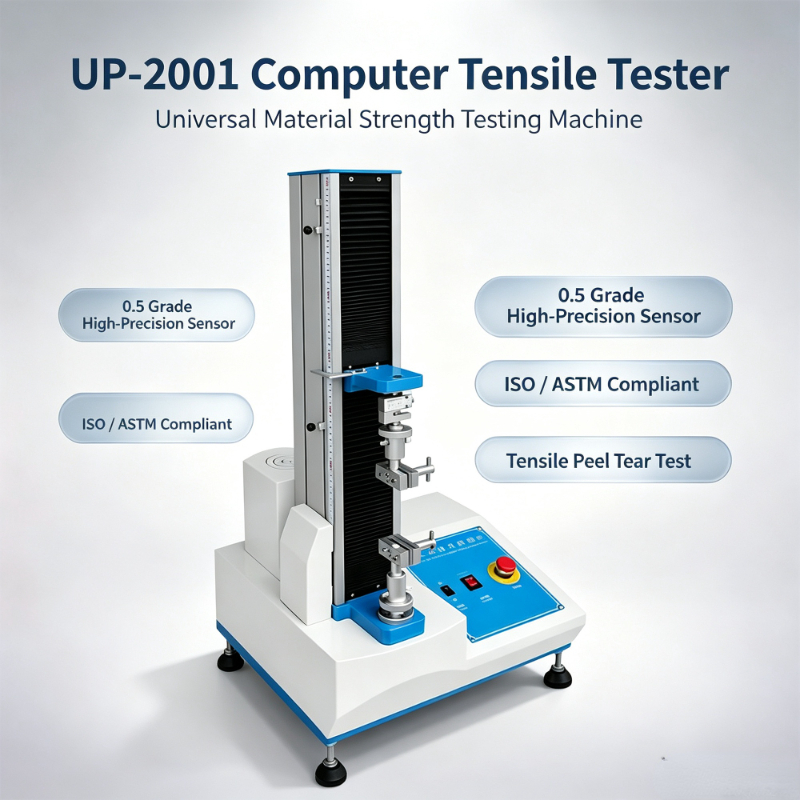

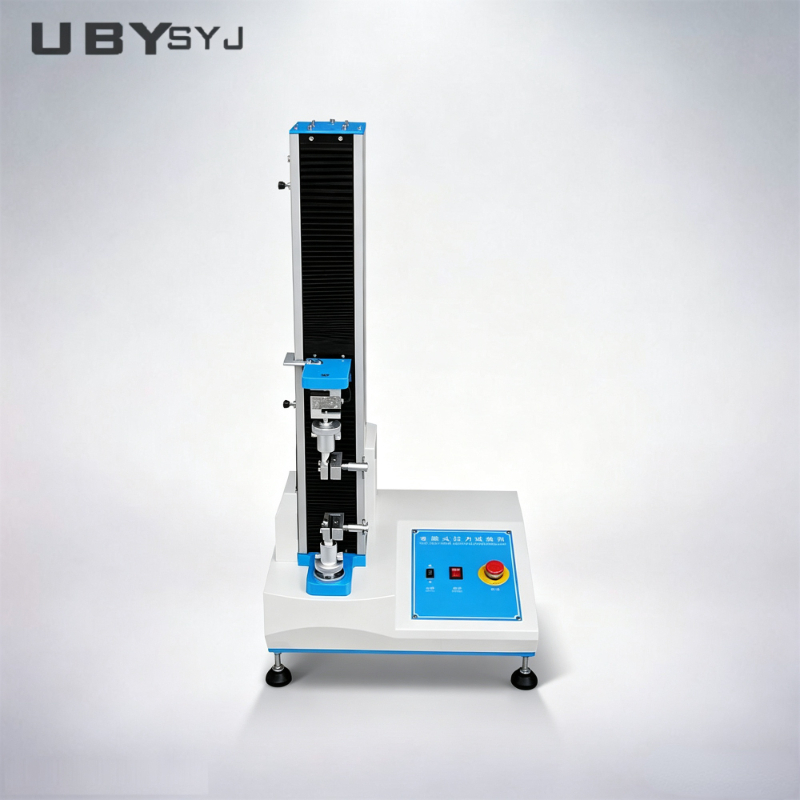

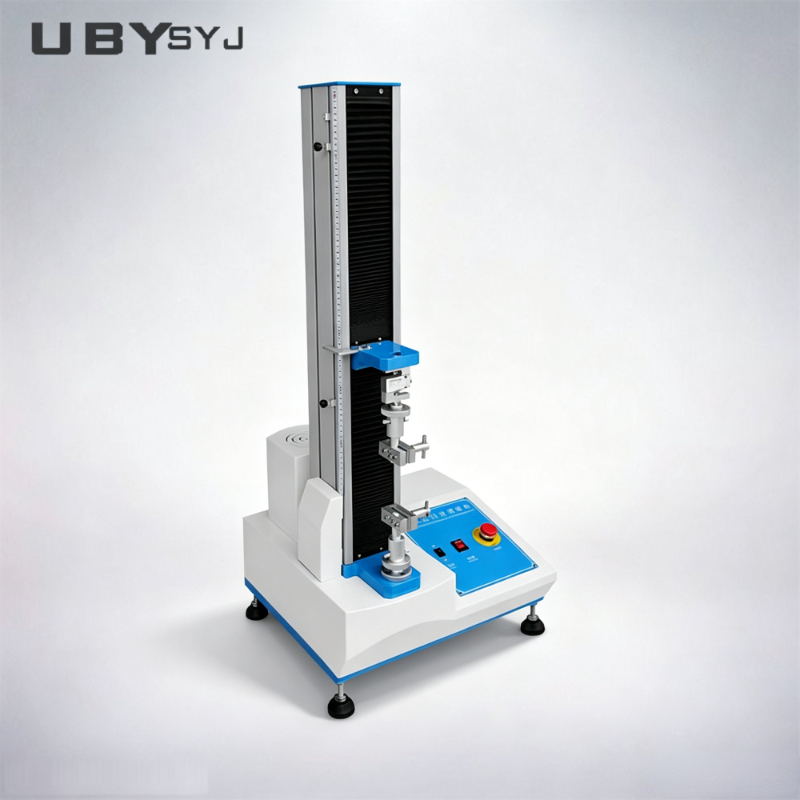

Peel Tear Bending Strength Tester for Footwear Adhesive Tape UP-2001

The UP-2001 is a computer-controlled tensile and peel testing machine designed as a multi-function material testing instrument. This versatile equipment performs tensile, tearing, 90°/180° peel, bending, and other mechanical property tests for material research, development, and quality inspection applications.

Key Applications
  • Rubber & plastic industry
  • Footwear & leather industry
  • Adhesive tape & sticker industry
  • Textile materials
  • Electronic insulation parts
  • Terminal connectors
  • Packaging materials
Technical Specifications
Specification Details
Load Cell 0.5 grade high precision force sensor
Load Capacity 2-200 kg (Optional)
Accuracy Class Class 1
Test Force Range 0.4% ~ 100% FS
Force Accuracy Within ±1%
Displacement Indication Error Within ±1% of indicated value

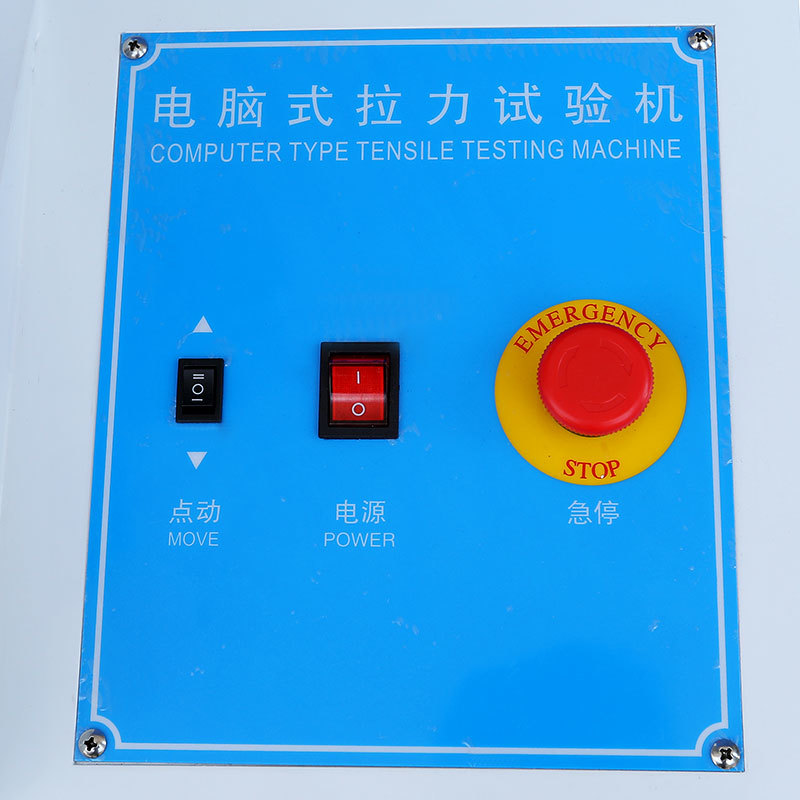

Control Mode Full computer control
Transmission Stepper motor + high strength timing pulley
Ball Screw Taiwan-made double-structure precision ball screw
Machine Structure Separate design for main frame and control box
Test Speed Range 10~500 mm/min
Speed Accuracy Within ±1% of indicated value
Effective Test Stroke 600 mm (Excluding Fixture)

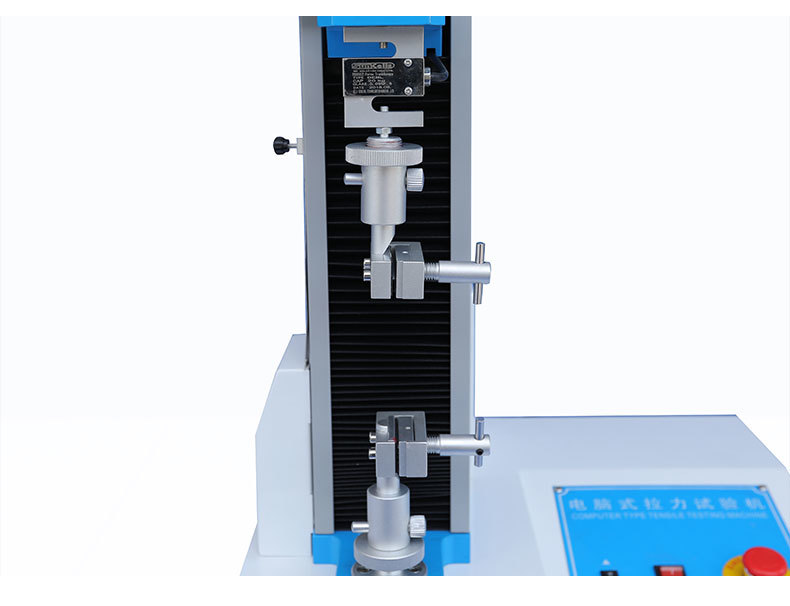

Fixture Surface Treatment Hard-chrome plated, hardness ≥ HRC55
Data Transmission 24-bit high-precision acquisition, RS-232 transmission
Dimension 50 × 40 × 150 cm
Net Weight Approx. 60 kg
Power Supply AC 220V, 50Hz
Compliance Standards

ASTM D412, ASTM D624, ISO36, ISO37, ISO20872, ISO20874, and related industry standards.

Product Images
Computer Control Peel Strength Tester with 600 mm Test Stroke and Class 1 Accuracy Universal Testing Machine Computer Control Peel Strength Tester with 600 mm Test Stroke and Class 1 Accuracy Universal Testing Machine Computer Control Peel Strength Tester with 600 mm Test Stroke and Class 1 Accuracy Universal Testing Machine Computer Control Peel Strength Tester with 600 mm Test Stroke and Class 1 Accuracy Universal Testing Machine
Our Service Commitment

We provide comprehensive consultative selling services throughout the entire business process:

  • Inquiry Process: Technical discussion, product recommendations, and competitive pricing
  • Customization: Detailed drawings, reference photos, and final solution confirmation
  • Production & Delivery: Quality production with progress updates, calibration services, and timely shipping
  • Installation & Support: Field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic rubber testing equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months consideration for sea transportation. For technical support, contact us via email or phone - we provide solutions within 24-48 hours after problem confirmation.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including custom branding with your logo.

How can I install and use the machine?

We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
