UP-5009 Mooney Viscometer with ±0.5 MU Accuracy and 0.01 MU Resolution for Rubber Testing
UP-5009 Mooney Viscometer with ±0.5 MU Accuracy and 0.01 MU Resolution for Rubber Testing
UP-5009 Mooney Viscometer with ±0.5 MU Accuracy and 0.01 MU Resolution for Rubber Testing
UP-5009 Mooney Viscometer with ±0.5 MU Accuracy and 0.01 MU Resolution for Rubber Testing
UP-5009 Mooney Viscometer with ±0.5 MU Accuracy and 0.01 MU Resolution for Rubber Testing
UP-5009 Mooney Viscometer with ±0.5 MU Accuracy and 0.01 MU Resolution for Rubber Testing
UP-5009 Mooney Viscometer with ±0.5 MU Accuracy and 0.01 MU Resolution for Rubber Testing
UP-5009 Mooney Viscometer with ±0.5 MU Accuracy and 0.01 MU Resolution for Rubber Testing
Specifications
Standard Rotor Speed :
2 ±0.02 rpm
Certification :
CE,ISO
Measuring Range :
0 ~ 200 Mooney Units (MU)
Model Number :
UP-5009
Measuring Accuracy :
±0.5 MU
MOQ :
1
Delivery Time :
5~10 work days
Temperature Resolution :
0.1°C
Payment Terms :
D/P,T/T,Western Union
Temperature Range :
Ambient ~ 200°C
Price :
Negotiable
Mooney Value Resolution :
0.01 MU
Supply Ability :
20 Unit/month
Model :
UP-5009
Brand Name :
Rubber Mooney Viscometer
Packaging Details :
Professional Export Packing
Temperature Control Precision :
±0.3°C
Place Of Origin :
China
Description
UP-5009 Laboratory Mooney Viscometer Tester

For Natural Synthetic Rubber Compound Mooney Viscosity Measurement

Product Introduction

The Mooney Viscometer is a core laboratory testing instrument for the rubber and elastomer industry. It measures Mooney viscosity, Mooney scorch time, and stress relaxation characteristics of uncured raw rubber, rubber compounds, and masterbatch. The instrument detects the shear torque resistance of a rotor rotating inside a rubber sample under constant temperature, evaluating rubber processability, batch consistency, and premature vulcanization risk.

Equipped with high-precision torque sensor and intelligent temperature control system, the UP-5009 supports computer data acquisition, curve display, automatic data recording, and export functions.

Compliance Standards
  • ASTM D1646
  • ISO 289
  • GB/T 1232
  • GB/T 1233
  • DIN 53523
  • JIS K6300
Applications

Suitable for incoming inspection, production quality control, and material research & development, including:

  • Natural rubber, synthetic rubber, rubber compound & masterbatch manufacturers
  • Tire, rubber hose, sealing parts, conveyor belt, and rubber footwear factories
  • Universities and material research centers
Technical Specifications
Item Specification
Measuring Range 0 ~ 200 Mooney Units (MU)
Mooney Value Resolution 0.01 MU
Measuring Accuracy ±0.5 MU
Standard Rotor Speed 2 ±0.02 rpm
Rotor Options Large rotor Φ38.10 mm (Standard); Small rotor Φ30.48 mm (Optional)
Temperature Range Ambient ~ 200°C
Temperature Control Precision ±0.3°C; Temperature Resolution: 0.1°C
Test Modes Mooney Viscosity, Mooney Scorch, Stress Relaxation

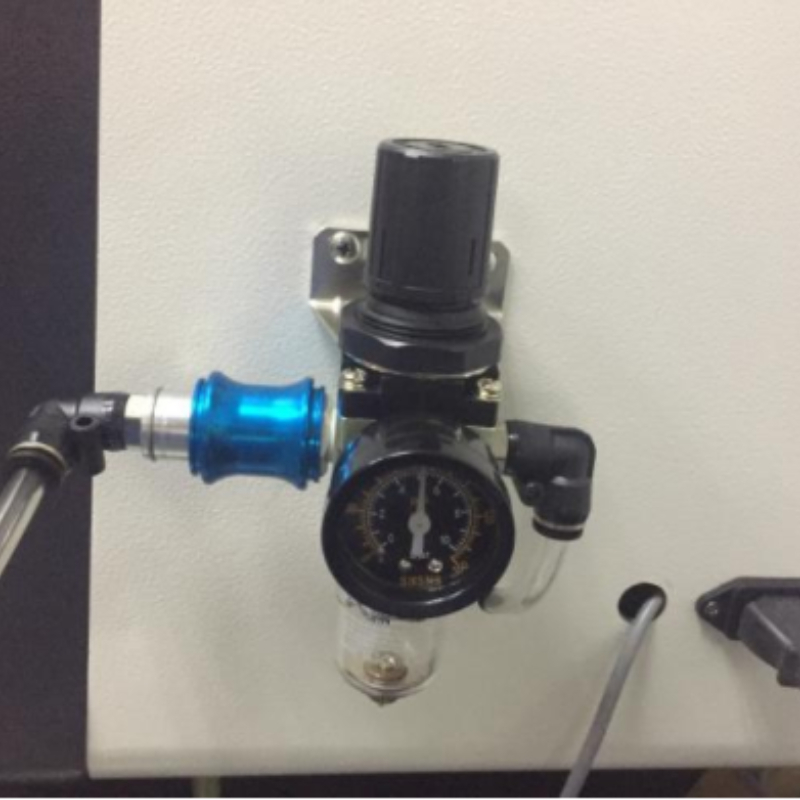

Closing Method Pneumatic clamping
Data Output USB, RS232; Support curve print & data export
Power Supply AC220V±10%, 50Hz, 1500W
Overall Dimension (W×D×H) 550 × 620 × 1260 mm
Net Weight Approx. 180 kg
