UP-3002 Dual-Arm Drop Impact Tester with Three-Dimensional Drop Test and 60kg Maximum Weight for Packaging Impact Resistance Testing
UP-3002 Dual-Arm Drop Impact Tester with Three-Dimensional Drop Test and 60kg Maximum Weight for Packaging Impact Resistance Testing
UP-3002 Dual-Arm Drop Impact Tester with Three-Dimensional Drop Test and 60kg Maximum Weight for Packaging Impact Resistance Testing
UP-3002 Dual-Arm Drop Impact Tester with Three-Dimensional Drop Test and 60kg Maximum Weight for Packaging Impact Resistance Testing
UP-3002 Dual-Arm Drop Impact Tester with Three-Dimensional Drop Test and 60kg Maximum Weight for Packaging Impact Resistance Testing
UP-3002 Dual-Arm Drop Impact Tester with Three-Dimensional Drop Test and 60kg Maximum Weight for Packaging Impact Resistance Testing
Specifications
Supply Ability :
20 Unit/month
Applications :
Package Carton Box
Model Number :
UP-3002
Testing Height :
40~150cm
MOQ :
1
Delivery Time :
5-10work days
Language :
Chinese and English
Falling Error :
±5mm
Payment Terms :
D/A,D/P,T/T
Ffalling Plane Error :
<1°
Price :
Negotiable
Single Strut Length :
30cm
Certification :
CE,ISO
Maximum Weight :
60kg
Brand Name :
YOUBI
Model NO. :
UP-3002
Place of Origin :
CHINA
Maximum Size Specimen :
800*800*800mm or Customized
Packaging Details :
Professional export wooden box packaging
Service Support :
OEM ODM
Description
UP-3002 Dual-Arm Drop Impact Tester Free Fall Drop Test Machine
Product Overview

The Dual-Arm Drop Impact Tester is engineered to evaluate drop resistance and structural integrity of finished products and packaging containers during transportation, handling, and storage. Featuring a stable dual-arm support structure, this machine ensures balanced operation, precise drop height control, and free drop without angle deviation. It supports comprehensive three-dimensional drop tests on product surfaces, edges, and corners, accurately simulating accidental drop impact conditions encountered in real-world logistics scenarios. With stable operation, low failure rate, and high test repeatability, this equipment provides reliable and objective impact resistance test data for product quality inspection and packaging optimization.

Compliance Standards
  • ISO 2248:1985 Packaging - Complete, filled transport packages - Vertical impact test by dropping
  • ASTM D5276 Standard Test Method for Drop Test of Loaded Containers by Free Fall
  • JIS Z 0202-1987 Drop test method for packaged goods
  • GB/T 4857.5-2019 Packaging transport packages - Test method for vertical drop impact
Technical Specifications
Item Specifications
Drop Height Range 400mm - 1500mm (customizable)
Height Accuracy ±2mm
Max Load Capacity 60kg (optional 100kg/200kg)
Max Sample Size 800×800×800mm
Drop Mode Free drop (face, edge, corner three modes)
Driving Mode Electric lifting, pneumatic release
Test Platform High-strength steel flat platform (anti-deformation)
Power Supply AC220V 50Hz
Machine Structure Dual-arm stable support, vertical guide rail design
Machine Dimension 1200×1000×2200mm (L×W×H)

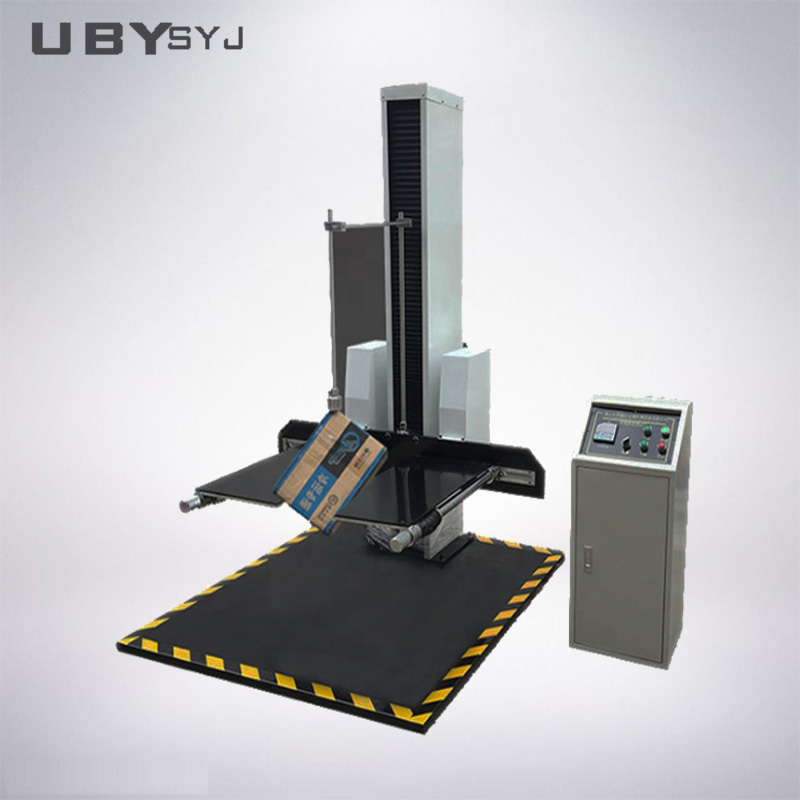

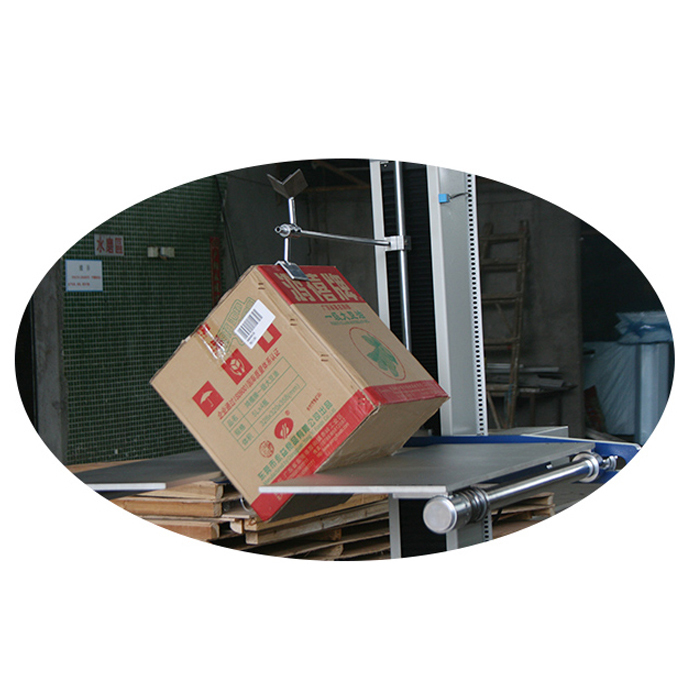

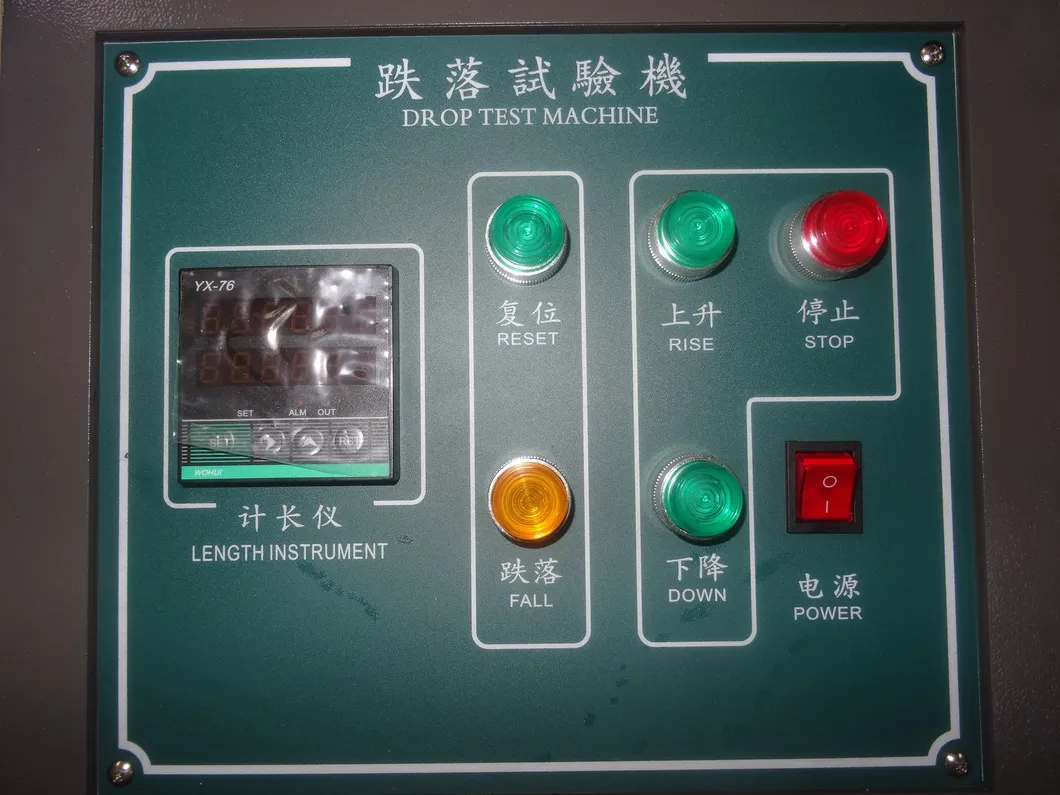

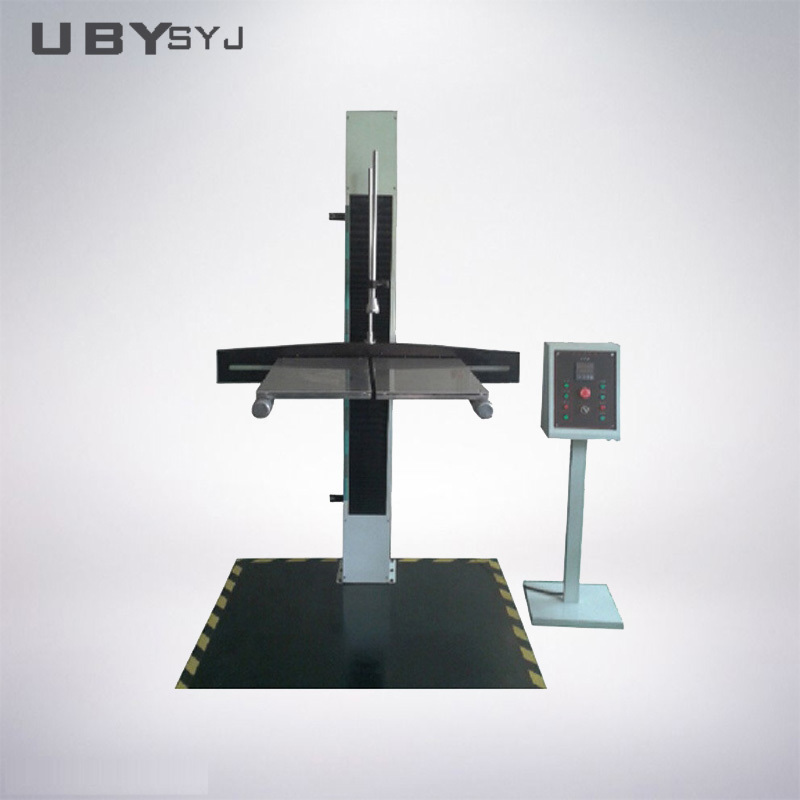

Product Images
UP-3002 Dual-Arm Drop Impact Tester with Three-Dimensional Drop Test and 60kg Maximum Weight for Packaging Impact Resistance Testing UP-3002 Dual-Arm Drop Impact Tester with Three-Dimensional Drop Test and 60kg Maximum Weight for Packaging Impact Resistance Testing UP-3002 Dual-Arm Drop Impact Tester with Three-Dimensional Drop Test and 60kg Maximum Weight for Packaging Impact Resistance Testing
Our Service Commitment

Throughout the entire business process, we provide comprehensive Consultative Selling services:

  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions
  • Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation and Support: Provide field installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment, with 12 months of free maintenance. Considering sea transportation, we extend this to 14 months for our customers. If your machine requires service, contact us via email or phone. We'll diagnose the issue and provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days; Custom orders: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your specifications. We provide OEM and ODM services, including placing your logo on the equipment.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos via email. Most machines ship fully assembled - simply connect power and begin operation. When necessary, we offer on-site installation assistance.
