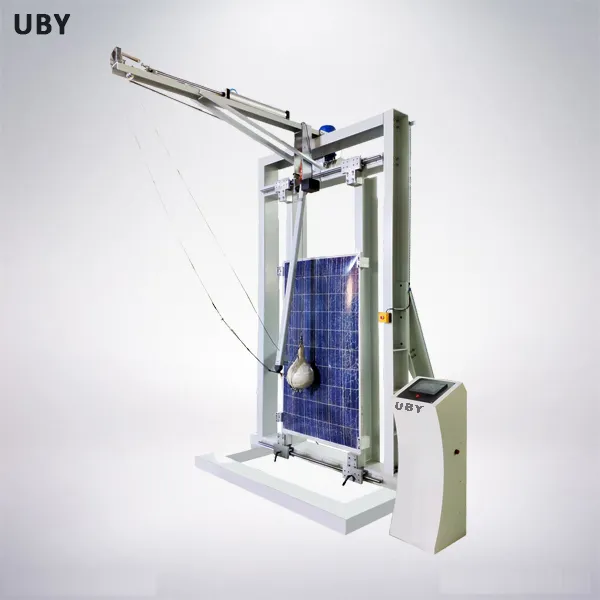

UP-3009 High-Precision PV Module Shot Bag Impact Tester with IEC61730-2 Compliance and Customizable Impact Area
UP-3009 High-Precision PV Module Shot Bag Impact Tester with IEC61730-2 Compliance and Customizable Impact Area
UP-3009 High-Precision PV Module Shot Bag Impact Tester with IEC61730-2 Compliance and Customizable Impact Area
UP-3009 High-Precision PV Module Shot Bag Impact Tester with IEC61730-2 Compliance and Customizable Impact Area
UP-3009 High-Precision PV Module Shot Bag Impact Tester with IEC61730-2 Compliance and Customizable Impact Area
UP-3009 High-Precision PV Module Shot Bag Impact Tester with IEC61730-2 Compliance and Customizable Impact Area
Specifications
MOQ :
1
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-3009
Place of Origin :
CHINA
Payment Terms :
D/P,T/T,Western Union,Paypal
Supply Ability :
10 Unit/month
Delivery Time :
10-20 work days
Packaging Details :
Professional export wooden box packaging
Model NO. :
UP-3009
Service Support :
OEM ODM
Language :
Chinese and English
Applications :
Glass, Safety Glass PV Module
Transport Package :
Professional Export Packing
Specification :
Refer to the actual size specifications
Impact area :
2m×1m (customized)
Impact height :
300mm~1220mm
The mass of impactor :
45.5±0.5kg
Inner filling diameter :
2.5~3.0mm
Description
UP-3009 High-Precision PV Module Shot Bag Impact Tester with IEC61730-2
Product Overview

Specialized testing equipment designed for evaluating impact resistance of toughened glass, measuring penetration resistance and intensity under different impact heights with consistent mass.

Compliance Standards
  • IEC 61730:2-2004 No.10.10 "Module Rupture Test"
  • JJG 128-1999 "Safety Glass Shot Bag Impact Tester"
  • GB9962-1999 - Suitable for testing impact resistance of laminated glass
  • GB17841-1999 - Suitable for testing toughened glass and semi-tempered glass
Technical Specifications
Parameter Specification
Product Name PV Module Shot Bag Impact Tester / Tempered glass impact testing with IEC61730-2:2016
Testing Standard IEC61730-2:2016 testing
Suitable Applications Solar panel, PV Module, Safety glass, Tempered glass etc
Impact Area 2m×1m (customized)
Impact Height 300mm~1220mm
Impactor Mass 45.5±0.5kg
Inner Filling Diameter 2.5~3.0mm
Protection Measure Installation of protection frame
Electrical Requirements 220V 50HZ
Shot Bag Details

Mass of shot bag: 45±0.1kg
Maximum diameter: 250mm

Test Framework

Internal dimensions of sample frame: length 19200+10mm, width 8450+10mm. Framework includes markings with 3mm thickness, 15mm width, and hardness A50°.

Product Images
UP-3009 High-Precision PV Module Shot Bag Impact Tester with IEC61730-2 Compliance and Customizable Impact Area UP-3009 High-Precision PV Module Shot Bag Impact Tester with IEC61730-2 Compliance and Customizable Impact Area UP-3009 High-Precision PV Module Shot Bag Impact Tester with IEC61730-2 Compliance and Customizable Impact Area
Our Service Process

We provide comprehensive consultative selling services throughout the entire business process:

  • Customer Inquiry: Technical discussion, requirement analysis, and product recommendation with competitive pricing
  • Customization: Detailed drawings, reference photos, and final solution confirmation
  • Production & Delivery: Quality production with progress updates, calibration services, and timely shipping
  • Installation & Support: Professional installation and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes 12-month warranty after shipment with free maintenance. For technical issues, contact us via email or phone - we provide solutions within 24-48 hours after problem confirmation.
What about the delivery term?
Standard machines with stock: 3-7 working days; Without stock: 15-20 working days after payment; Urgent requirements receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services including logo placement.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
