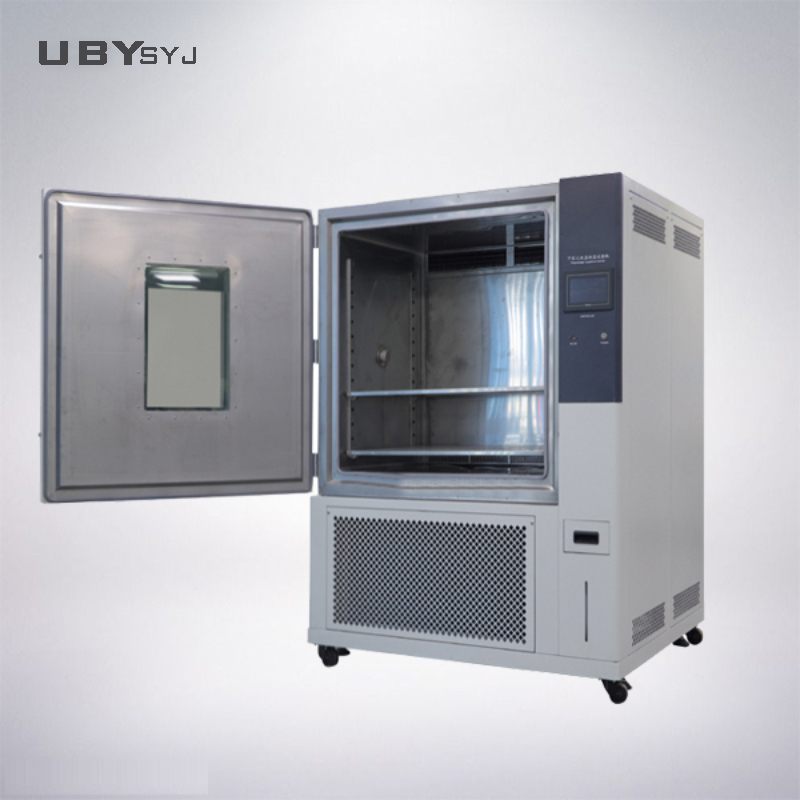

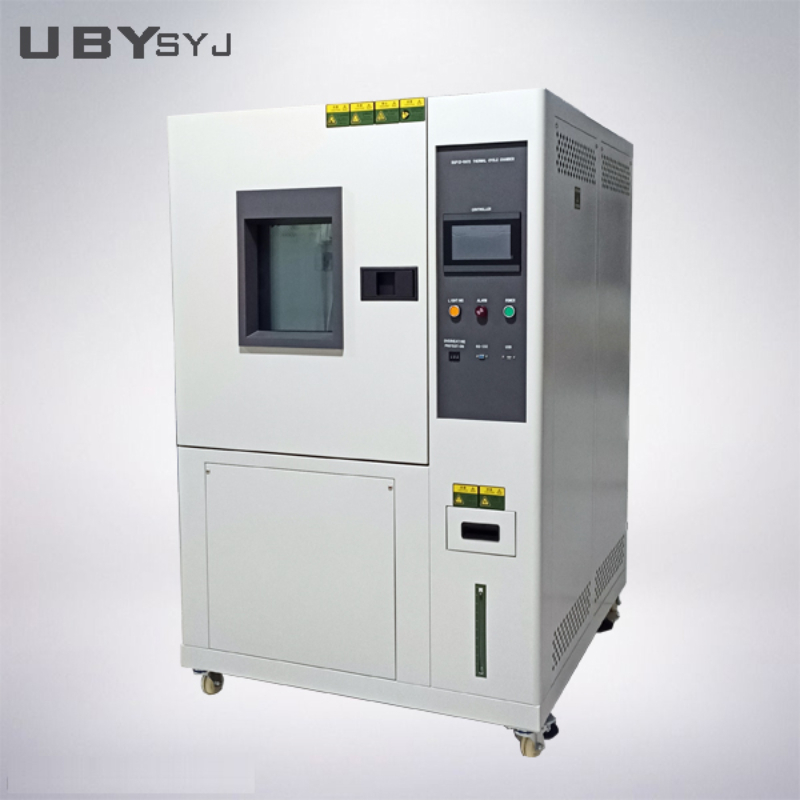

IEC 60068 Compliant Rapid Temperature Change Test Chamber with 5~20℃/min Linear Rate and SUS304 Stainless Steel Inner Chamber
IEC 60068 Compliant Rapid Temperature Change Test Chamber with 5~20℃/min Linear Rate and SUS304 Stainless Steel Inner Chamber
IEC 60068 Compliant Rapid Temperature Change Test Chamber with 5~20℃/min Linear Rate and SUS304 Stainless Steel Inner Chamber
IEC 60068 Compliant Rapid Temperature Change Test Chamber with 5~20℃/min Linear Rate and SUS304 Stainless Steel Inner Chamber
IEC 60068 Compliant Rapid Temperature Change Test Chamber with 5~20℃/min Linear Rate and SUS304 Stainless Steel Inner Chamber
IEC 60068 Compliant Rapid Temperature Change Test Chamber with 5~20℃/min Linear Rate and SUS304 Stainless Steel Inner Chamber
Specifications
Supply Ability :
20 Unit/month
Warranty :
1 Year
Model Number :
UP-6195
HS Code :
8479899990
MOQ :
1 Unit
Delivery Time :
10~20 work days
Temp Fluctuation :
±0.3℃
Payment Terms :
T/T,D/P,Western Union,Paypal
Custom Service :
OEM,ODM
Price :
Negotiable
Temp Uniformity :
≤±1.5℃
Certification :
CE,ISO
Temperature Range :
-70~150ºC
Brand Name :
YOUBI
Model NO. :
UP-6195
Place of Origin :
CHINA
Linear Temp Change Rate :
5~20℃/min full range linear
Packaging Details :
Professional Export Wooden Box Packaging
Description
UP-6195IEC 60068 Rapid Temperature Change Test Chamber Fast Thermal Cycling ESS Chamber

UP-6195 IEC 60068 Rapid Temperature Change Test Chamber Fast Thermal Cycling ESS Chamber

Product Introduction

This rapid temperature change test chamber supports linear 5~20℃/min fast heating & cooling rate, complies with IEC 60068, JEDEC JESD22 standards. Widely used for electronics, PCB, lithium battery and auto parts ESS accelerated stress screening test. Features stable PLC touch screen control, exported to Vietnam, Thailand, Malaysia, Indonesia and Singapore labs & manufacturing factories.

Design Standards
  • IEC60068-2
  • JEDEC JESD22-A104
  • ISO 16750
Specifications
Item Parameter
Volume Options 100L / 225L / 408L / 1000L Customizable
Temp. Working Range -70℃ ~ +150℃
Linear Temp Change Rate 5~20℃/min full range linear
Temp Fluctuation ±0.3℃
Temp Uniformity ≤±1.5℃
Control System Touch screen PLC, English interface, USB data export
Main Material SUS304 stainless steel inner chamber
Safety System Complete overheat, overload, emergency stop protection
Power Supply 380V 50Hz / 220V 60Hz for Southeast Asia market
IEC 60068 Compliant Rapid Temperature Change Test Chamber with 5~20℃/min Linear Rate and SUS304 Stainless Steel Inner Chamber IEC 60068 Compliant Rapid Temperature Change Test Chamber with 5~20℃/min Linear Rate and SUS304 Stainless Steel Inner Chamber
Our Service

During the whole business process, we offer Consultative Selling services.

Customer Inquiry Process

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

Specifications Customize Process

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

Production and Delivery Process

We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.

Installation and After-Sale Service

Defines installing those products in the field and providing after-sales support.

Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.

Moreover, if your machine doesn't work, you can send us an e-mail or call us. We will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?

For our standard machine which means normal machines:

  • If we have stock in the warehouse: 3-7 working days
  • If there is no stock: normally 15-20 working days after payment is received
  • If you are in urgent need, we will make a special arrangement for you
3. Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.

Most of our machines are shipped as complete units, which means they are already installed. You just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
