UP-3007 Glass Impact Test Equipment with 0 ~ 2.5 J Impact Energy Range and Φ 20 ~ 165 mm Sample Diameter Range GB6552-2015 Compliant
UP-3007 Glass Impact Test Equipment with 0 ~ 2.5 J Impact Energy Range and Φ 20 ~ 165 mm Sample Diameter Range GB6552-2015 Compliant
UP-3007 Glass Impact Test Equipment with 0 ~ 2.5 J Impact Energy Range and Φ 20 ~ 165 mm Sample Diameter Range GB6552-2015 Compliant
UP-3007 Glass Impact Test Equipment with 0 ~ 2.5 J Impact Energy Range and Φ 20 ~ 165 mm Sample Diameter Range GB6552-2015 Compliant
UP-3007 Glass Impact Test Equipment with 0 ~ 2.5 J Impact Energy Range and Φ 20 ~ 165 mm Sample Diameter Range GB6552-2015 Compliant
UP-3007 Glass Impact Test Equipment with 0 ~ 2.5 J Impact Energy Range and Φ 20 ~ 165 mm Sample Diameter Range GB6552-2015 Compliant
Specifications
Language :
Chinese and English
MOQ :
1
Price :
Negotiable
Payment Terms :
D/A,D/P,T/T
Impact Energy Range :
0 ~ 2.5 J
Certification :
CE,ISO
Packaging Details :
Professional export packing
Sample Height Range :
10 ~ 400 mm
Service Support :
OEM ODM
Applications :
Glass Bottle Jars
Supply Ability :
30 Unit/month
Resolution :
0.05 J (0–1.0 J) / 0.1 J (1.0–2.5 J)
Place of Origin :
CHINA
Brand Name :
YOUBI
Model NO. :
UP-3007
Model Number :
UP-3007
Delivery Time :
5-10work days
Sample Diameter Range :
Φ 20 ~ 165 mm
Description

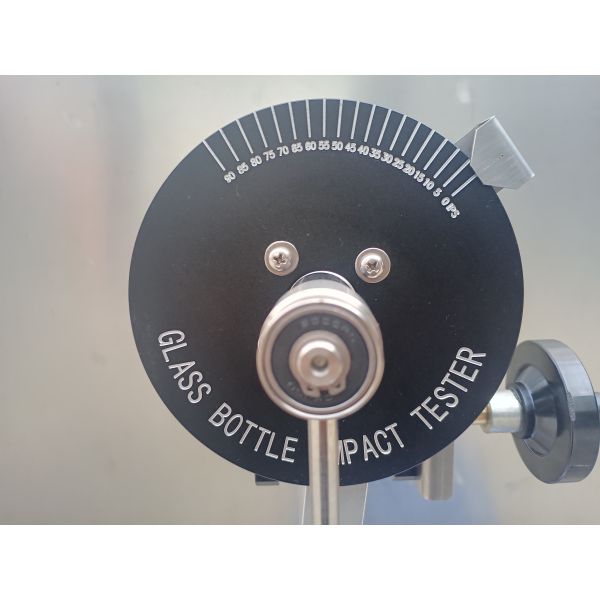

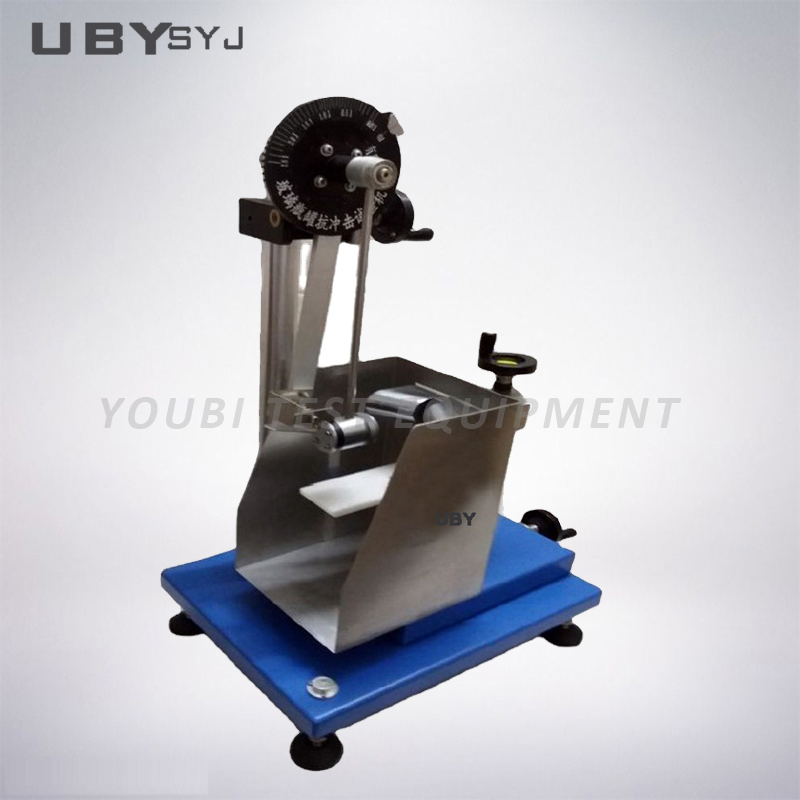

UP-3007 Glass Impact Test Equipment Tempered Glass Pendulum Impact Testing Machine
Glass bottle impact tester is used to measure the impact strength of various glass bottles, in accordance with the national standard GB6552-2015 Glass glass container mechanical impact test method requirements for testing methods. This equipment can complete both passing and incremental tests as specified by the national standard.
Technical Specifications
Item Specification
Impact Energy Range 0 ~ 2.5 J
Resolution 0.05 J (0-1.0 J) / 0.1 J (1.0-2.5 J)
Measurement Accuracy ≤ 1.5% FS (percentage of full scale)
Applicable Bottle Diameter Φ 20 ~ 165 mm
Impact Height Range 20 ~ 180 mm
Pendulum Deflection Angle Range 0 ~ 120°
Machine Dimensions (L×W×H) 450 × 300 × 650 mm
Package Dimensions (L×W×H) 610 × 450 × 880 mm
Gross Weight (with package) 38 kg
UP-3007 Glass Impact Test Equipment with 0 ~ 2.5 J Impact Energy Range and Φ 20 ~ 165 mm Sample Diameter Range GB6552-2015 Compliant UP-3007 Glass Impact Test Equipment with 0 ~ 2.5 J Impact Energy Range and Φ 20 ~ 165 mm Sample Diameter Range GB6552-2015 Compliant
Our Service Commitment
During the entire business process, we offer consultative selling services:
  1. Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
  2. Specifications Customization: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions.
  3. Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery.
  4. Installation and After-Sales: Provide installation support and comprehensive after-sales service.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of free maintenance, extended to 14 months considering sea transportation. If your machine requires service, contact us via email or phone. We will diagnose the issue and provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable and begin operation. We offer on-site installation assistance when necessary.
