UP-3001 Single Wing Drop Tester with ISO ISTA Standard Adjustable Drop Height and Electromagnetic Release Impact Test Machine
UP-3001 Single Wing Drop Tester with ISO ISTA Standard Adjustable Drop Height and Electromagnetic Release Impact Test Machine
UP-3001 Single Wing Drop Tester with ISO ISTA Standard Adjustable Drop Height and Electromagnetic Release Impact Test Machine
UP-3001 Single Wing Drop Tester with ISO ISTA Standard Adjustable Drop Height and Electromagnetic Release Impact Test Machine
UP-3001 Single Wing Drop Tester with ISO ISTA Standard Adjustable Drop Height and Electromagnetic Release Impact Test Machine
UP-3001 Single Wing Drop Tester with ISO ISTA Standard Adjustable Drop Height and Electromagnetic Release Impact Test Machine
Specifications
Applications :
Package Carton Box
Supply Ability :
30 Unit/month
HS Code :
9024800000
Deviation of Horizontal Angle During Des :
≤ 1 °
Delivery Time :
5~10 work days
Drop Height :
100~2000mm (Adjustable)
Horizontal Deviation of Impact Plate :
≤ 1 °
Service Support :
OEM ODM
Specification :
Refer to the actual size specifications
Payment Terms :
D/A,D/P,T/T
Model NO. :
UP-3001
MOQ :
1
Price :
Negotiable
Packaging Details :
Professional export packing
Max. Specimen Weight :
80kg
Language :
Chinese and English
Description
UP-3001 Single Wing Drop Tester ISO ISTA Standard Packaging Carton Free Fall Impact Test Machine
The Single Wing Drop Tester (also called Single Arm Drop Test Machine) is professional packaging laboratory testing equipment. It lifts packaged products to a preset height via electric screw drive, then releases the sample for free fall to simulate collision damage during logistics, transportation and manual handling.
This equipment supports three-dimensional drop tests on package surface, edge and corner, and is equipped with digital height display, electromagnetic instant release and buffer protection device. Adopting a stable double-column single-wing structure, it features small angle deviation, high test repeatability, safe limit protection and easy operation. Widely used for packaging structure verification and finished product reliability inspection.
Compliance Standards
  • ISO 2248 Packaging vertical drop impact test standard
  • ISTA International Safe Transit Association transport testing specifications
  • JIS Z0202 Japanese packaging drop test standard
  • GB/T 4857.5 China national standard for transportation package drop test
Technical Specifications
Max. sample weight 100KG
Sample size Three kinds of carton size in your file
Drop platform area As per three kinds of carton size in your file
Drop height 100-1000mm
Drop test Corners, edges, faces of sample
Drive mode Motor drive
Protection device Induction type protection device
Panel material 45# steel, solid steel plate
Arm material 45# steel

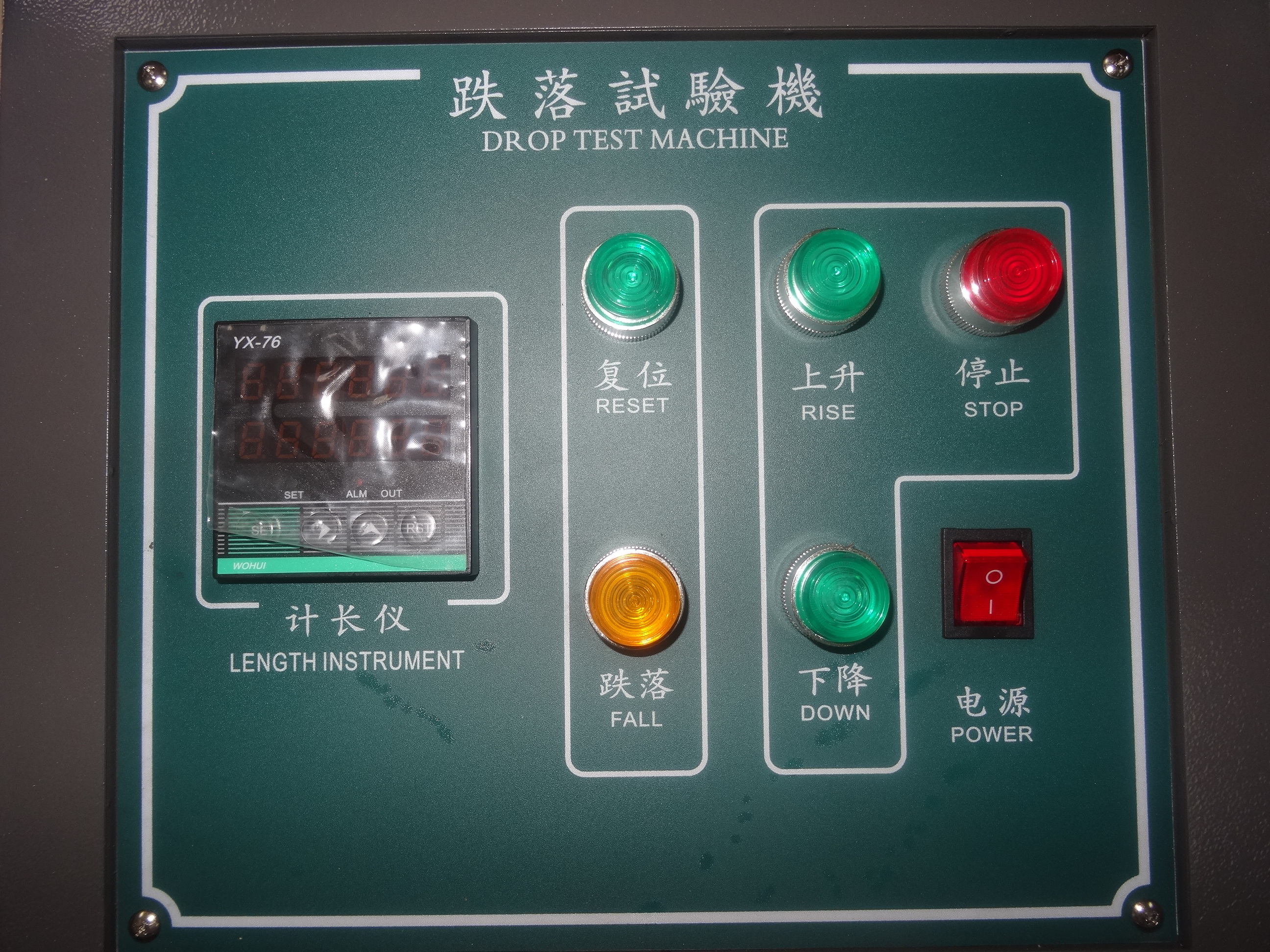

Height display Digital
Operate mode PLC
Drop method Electromagnetic and pneumatic comprehensive support
Machine dimension (L×W×H) 2000*1900*2450mm including control box (estimated)
Package Strong wooden case
Package Dimension (L×W×H) 2300*2200*2650mm (estimated)
Package Weight 800KG
Power Single phase, 220V, 50/60 Hz
Product Images
UP-3001 Single Wing Drop Tester with ISO ISTA Standard Adjustable Drop Height and Electromagnetic Release Impact Test Machine UP-3001 Single Wing Drop Tester with ISO ISTA Standard Adjustable Drop Height and Electromagnetic Release Impact Test Machine
Our Service Process
1) Customer Inquiry Process:
Discussing testing requirements and technical details, suggesting suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
2) Specifications Customize Process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
3) Production and Delivery Process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
4) Installation and After-Sale Service:
Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.
Moreover, if your machine doesn't work, you can send us an e-mail or call us. We will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, if we have stock in the warehouse, delivery time is 3-7 working days. If there is no stock, normally, the delivery time is 15-20 working days after payment is received. If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machines are shipped as a complete unit, which means they are already installed. You just need to connect the power cable and start using it. And if it's necessary, we can also assist you to install your machine on-site.
