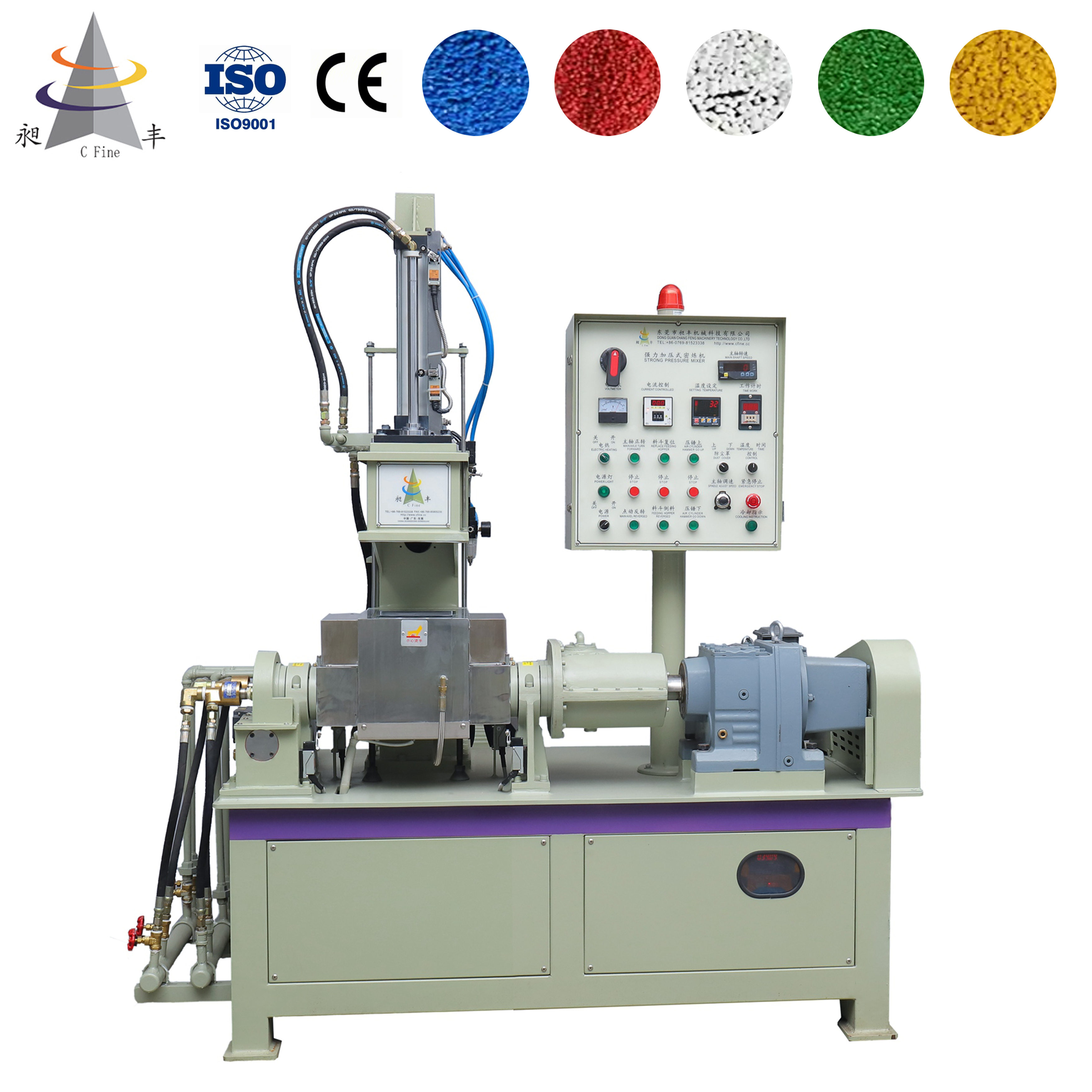

Lab Kneader with tungsten carbide coated mixing chamber side plate and pressure hammer for durable and metal powder mixing

• Featuring a sophisticated anti-powder-discharge construction, the design simplifies disassembly and installation while keeping contents fully contained.

• The refined heating/cooling mechanism reaches target temperatures more quickly and maintains excellent heat dissipation for consistently stable performance.

• Covered by utility model patents for use with ceramic or metal substrates, the unit's interior touchpoints are plated with a high-wear-resistance alloy, substantially prolonging its working lifespan.

Operating Principle

Two rotors in the mixing chamber rotate at specific speed ratios, capturing material from the feeding port and directing it through the roller gap. Here, the material undergoes squeezing and shearing. After passing the gap, it strikes the sharp edge of the "W"-shaped mixing chamber, splitting into two streams that flow along the front and rear chamber walls before returning to the rotor top. Within the sealed chamber, materials are subjected to intense shearing and mixing under controlled pressure and temperature, ensuring optimal dispersion, plasticization, and formula performance.

The "W"-shaped mixing chamber, combined with an "M"-shaped lower pressure cover, creates a fully enclosed mixing environment. The prismatic spiral stirring blade eliminates dead angles, enabling precise shearing and dispersion to meet physical property requirements. Constructed from high-quality, high-carbon steel, the hollow stirring blade and other material-contact components undergo tempering, deep nitriding heat treatment (72 hours in vacuum), and tungsten carbide coating with smooth surface finishing. This ensures wear resistance, corrosion resistance, non-stick properties, and extended service life.

• Changfeng's anti-leakage powder device uses mechanical shaft seal tightening with self-lubricating seal rings, maintaining compression and sealing during operation. This reduces wear and minimizes noise from leakage.
• Through-type heating system provides faster, more uniform temperature transfer, offering 50% greater efficiency than traditional heating plates. Optional PLC program control system available.
• Complex tube belt design in the mixing chamber ensures excellent heat exchange and precise temperature control. Water-cooled rotors prevent material sticking, enhance temperature accuracy, and promote even dispersion.

Non-consumable parts are guaranteed for one year under normal use. We provide on-site installation guidance and long-term technical support. Note: Electrical components and motors are sourced from Taiwan and international brands.
