Onsite Soil Density Test Equipment 200mm Sand Replacement Test Apparatus
Onsite Soil Density Test Equipment 200mm Sand Replacement Test Apparatus
Specifications
Brand Name :
SRI
Model Number :
GST
Certification :
ISO 9001
Place of Origin :
CHINA MAINLAND
MOQ :
1set
Price :
60-100
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, Paypal
Supply Ability :
1000sets per month
Delivery Time :
2-5 working days
Packaging Details :
wooden case
Type :
Manual
Standard :
GB,JTG
Customized :
Yes
Category :
Geotechnical test equipment
Description

This apparatus is used to test the soil density by sand replacement method. The soil particle max size normally not over than 15mm, the test soil layer thickness is 150-200mm. when test the fine soil, can use dia.100mm sand replacement apparatus, when the particle size is larger than 15mm but smaller than 40mm, can use 150mm dia. Type, when larger than 40mm, should use 200mm dia. Type.

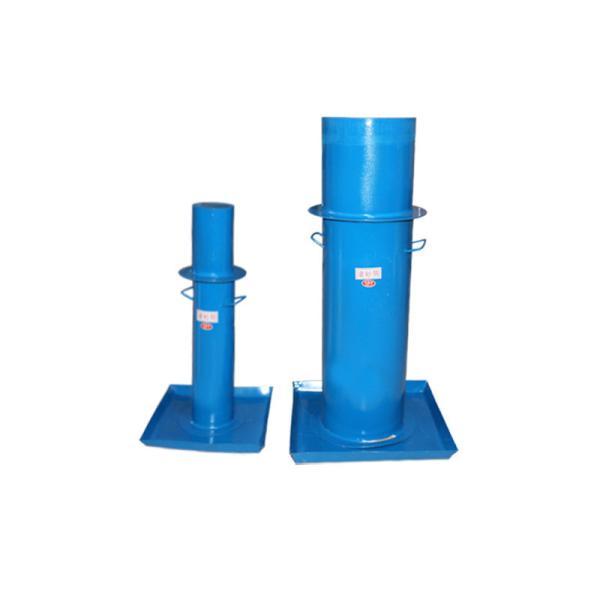

The sand replacement apparatus is mainly comprised of a storage tube and a cone type funnel.

Technical specifications

Model Sand storage cylinder(mm) Cone type funnel dia. (mm) Calibration container(mm)
Inner dia. Cylinder depth Cylinder base center opening dia. Upper opening dia. Lower opening dia. Height Inner dia. Depth
GST-100 100 270 10 10 100 90 100 150/200
GST-150 150 270 10 10 150 90 150 150/200
GST-200 200 350 25 25 200 165 200 200/250
Base platen 350mm*40mm(side length*height) , platen center round hole size: dia. 100mm

Auxiliary equipments for sand replacement field density test

Glass platen: 500*500mm square platen

Platform scale: 15kg/5g

Others: aluminum container, drying oven, sample container
