Specifications
Brand Name :
SRI
Model Number :
TSZ-B
Certification :
ISO 9001
Place of Origin :
CHINA MAINLAND
MOQ :
1set
Price :
7000-15000
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, Paypal
Supply Ability :
50sets per month
Delivery Time :
10-15 working days
Packaging Details :
wooden case
Type :
Strain
Operation form :
Semi-automatic
Test applicable :
UU/CU/CD
Load force :
10kn, 30kn, 60kn
Standard :
China GB/JTG/SL
Indication :
Dial gauge, LCD
Sample diameter :
39.1mm, 61.8mm, 101mm
Category :
Geotechnical lab equipment
Description

This triaxial testing machine is used to perform the triaxial compression (shearing) test of soil spcimens. It can perform UU, CU, and CD test.

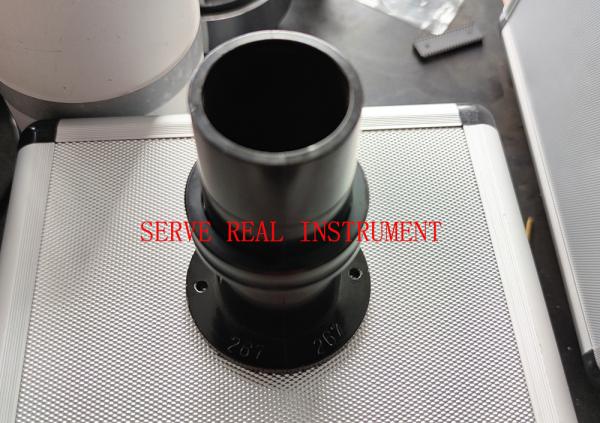

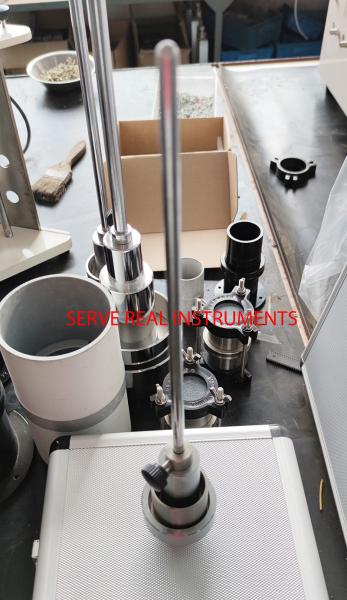

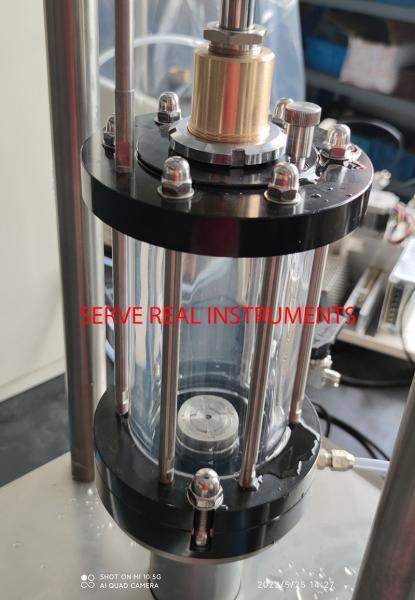

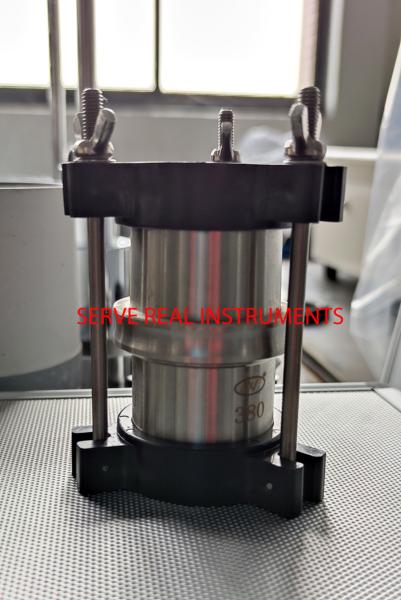

It's mainly comprised of load frame, control cabinet, pressure chamber, proving ring, displacement gauge, and specimen preparation apparatus. The load frame features stepless-speed regulation, confining pressure and back pressure can be setup on controller, pore pressure can be tested and indicated on screen in real time.

Technical Specifications

Specification TSZ-B1 TSZ-B2 TSZ-B6
Specimen size Φ39.1 x 80mm Φ39.1 x 80mm, Φ61.8mm x 125mm Φ39.1 x 80mm, Φ61.8 x 125mm, Φ101 x 200mm
Axial Loading Max. 10KN Max. 30KN Max. 60KN
Strain-controlled rate 0.0001-4.8mm/min, stepless regulation 0.0001-4.8mm/min, stepless regulation 0.0001-4.8mm/min, stepless regulation
Working table travel Max. 50mm 0-90mm 0-100mm
Confining pressure 0-1MPa 0-2MPa 0-2MPa
Back pressure 0-0.6MPa 0-0.8MPa 0-1MPa
Pore pressure 0-1MPa 0-2MPa 0-2MPa
Volume change 0-25ml/0.1ml 0-50ml/0.1ml 0-100ml/0.2ml
Axial displacement 0-30mm 0-30mm 0-30mm
Power supply AC 220V±10% 50Hz AC 220V±10% 50Hz AC 220V±10% 50Hz
Size 350 x 300 x 1100mm, 500 x 500 x 925mm

500 x 430 x 1200m

500 x 500 x 925mm

650 x 530 x 1200m

500 x 500 x 925mm
Net Weight 170Kg 175kg 240kg

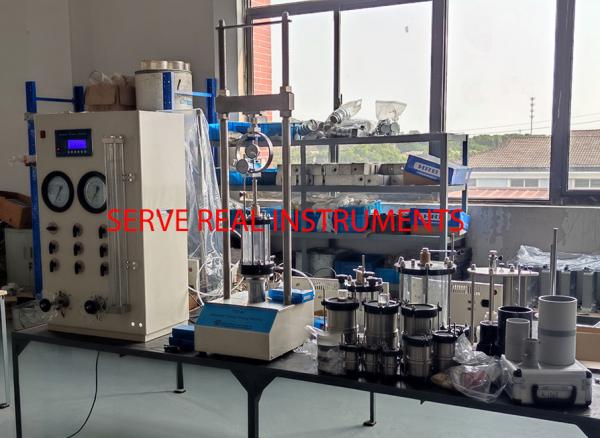

Automatic Triaxial testing machine and accessories
