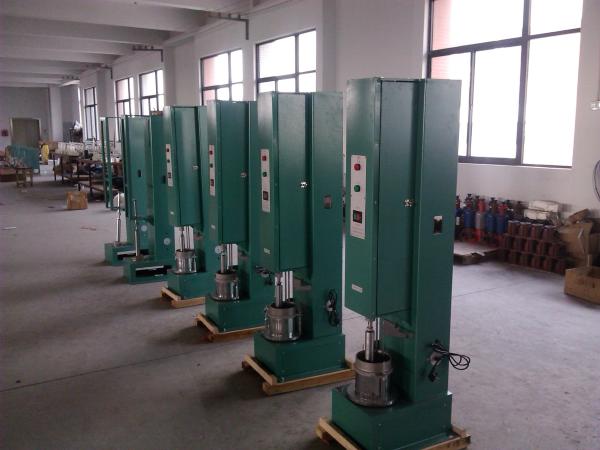

Geotechnical Test Equipment Automatic Mechanical Soil Compactor ASTM EN NF BS
Geotechnical Test Equipment Automatic Mechanical Soil Compactor ASTM EN NF BS
Geotechnical Test Equipment Automatic Mechanical Soil Compactor ASTM EN NF BS
Geotechnical Test Equipment Automatic Mechanical Soil Compactor ASTM EN NF BS
Specifications
Brand Name :
SRI
Model Number :
TDJS-1
Certification :
ISO 9001
Place of Origin :
CHINA MAINLAND
MOQ :
1set
Price :
1500-2500
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, Paypal
Supply Ability :
50sets per month
Delivery Time :
5-10 working days
Packaging Details :
wooden case
Type :
Automatic
Standard :
ASTM, AASHTO, EN, BS, NF
Customized :
Yes
Category :
Geotechnical lab equipment
Description

Description

This automatic soil compactor is used to determine the relationship between molding water content and dry unit weight of soils (compaction curve), it’s kind of most-common soil test equipment in geotechnical laboratory.

Features

  • Automatic count, automatic stop, automatic cycling, digital display
  • Heavy & Light compaction test
  • Stable rigid body structure
  • Easy in use and maintenance
  • superior design, durable in use
  • Uniform compaction
  • Multi test standard adaptable, can be equipped with different configurations to adapt to ASTM, EN, NF standards.

Specifications

Rammer weight 2.5kg/4.5kg
Rammer drop height 300, 305, 450, 457 mm
Test mould dia. 100mm or 4inch, 152 or 6inch
Hammer head dia. Φ50mm or 2inch
Compacting frequency 14 times / min
Power supply AC 110VAC/ 220VAC, 50/60Hz
Overall Size 500 x 380 x1650mm (L x W x H)
Net Weight 180Kg

Specifications per standard

Standards Rammer face dia. Rammer weight Rammer drop height
ASTM 698 50.8mm 2.49kg 305mm
457mm
ASTM D1557 50.8mm 4.53kg 305mm
457mm
ASTM D1883 50.8mm 2.49kg 305mm
4.53kg 457mm
AASHTO T99 50.8mm 2.49kg 305mm
AASHTO T180 4.53kg 457mm
EN 13286-2 50mm 2.50kg 305mm
EN 13286-47 4.50kg 457mm
BS 1377:4 50mm 2.50kg 305mm
4.50kg 457mm
NF P94-093, NF P94-066 50mm 2.49kg 305mm
4.53kg 457mm
UNE 103-500 50.8mm 2.49kg 305mm
4.53kg 457mm

Configurations

Item Qty
Main machine 1set
Electric counter 1set
Hammer 2.5kg, 4.5kg, 1pc each
Moulds with collar, baseplate, spacer disc(152mm)* 100mm or 4inch, 152mm or 6inch, 1pc each
