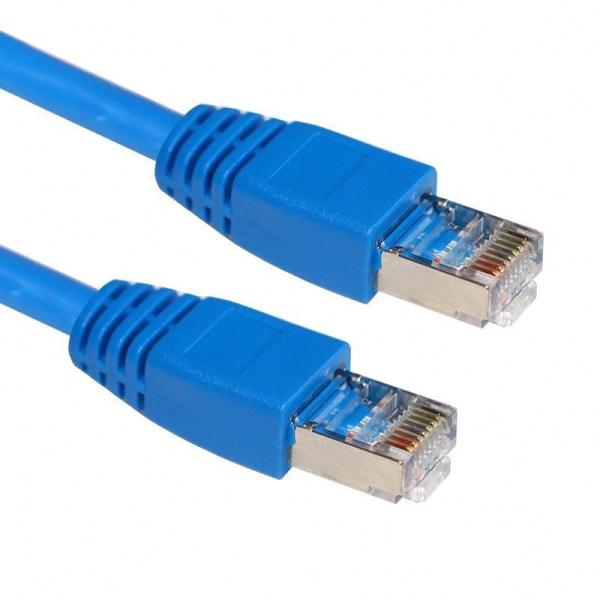

Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m
Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m
Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m
Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m
Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m
Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m
Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m
Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m
Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m
Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m
Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m
Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m
Specifications
Model Number :
NW--0314
Place of Origin :
Guangdong, China
Brand Name :
KUNCAN
Packaging Details :
pe to cartons or at your request.
carton=40x40x27cm
MOQ :
500 pieces
Price :
$0.60/pieces 500-999 pieces
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000PCS/Per Week
Delivery Time :
25days
Number of Conductors :
8
Type :
Cat 6/CAT5/CAT5E/CAT7
Application :
networking sysytem
Jacket Material :
PVC
Conductor Material :
Copper
colour :
white/gray
length :
1-10m
wechat :
aron113820
wires :
8P8C 8P6C
Shield :
YES
warranty :
2 years
Description

UTP Cat6 LAN Cable with RJ45 Connectors

550MHz Bandwidth • 10Gbps Ready • 24AWG Bare Copper

TIA/EIA-568-C.2 Certified RoHS Compliant 100% Copper 550MHz Bandwidth
[High-res cable with RJ45 connectors] [Close-up of gold-plated contacts] [Cable cross-section showing twisted pairs]

Technical Specifications

  • Category: Cat6 UTP (Unshielded Twisted Pair)
  • Speed: 10Gbps @ 55m / 1Gbps @ 100m
  • Bandwidth: 550MHz
  • Conductor: 24AWG solid bare copper
  • PoE Support: Up to IEEE 802.3bt (PoE++)
  • Jacket: PVC (CM/CMR) or LSZH options
  • Connectors: Gold-plated RJ45 (8P8C)
  • Impedance: 100Ω ±15%

Available Options

  • Lengths: 0.5m to 305m bulk spools
  • Colors: Blue, Black, White, Red, Green, Yellow
  • Jacket Rating: CM (General), CMR (Riser), CMP (Plenum)

Key Features

10Gbps Performance

Supports 10GBASE-T Ethernet at reduced distances (up to 55m) with backwards compatibility to 1000BASE-T.

Enhanced PoE Support

Delivers up to 90W (802.3bt PoE++) for power-hungry devices like PTZ cameras and WiFi 6 access points.

Precision Engineering

Precisely twisted 4 pairs with differentiated twist rates to minimize NEXT and FEXT interference.

Detailed Technical Specifications

Parameter Specification
Standard Compliance TIA/EIA-568-C.2, ISO/IEC 11801 Class E
Conductor Material 24AWG solid bare copper (±0.002")
DC Resistance ≤ 9.38Ω/100m @ 20°C
Propagation Delay ≤ 548 ns/100m (max)
Attenuation @ 250MHz ≤ 36.6 dB/100m
PSNEXT ≥ 42.3 dB @ 250MHz
Operating Temperature -20°C to 75°C (-4°F to 167°F)
Bend Radius ≥ 8x cable diameter

Recommended Applications

  • Network Infrastructure: 10Gbps switches, servers, NAS devices (up to 55m)
  • PoE++ Systems: High-power devices like PTZ cameras, LED lighting
  • Data Centers: Top-of-rack switching, server interconnects
  • AV Systems: HDBaseT extenders, digital signage
  • Gaming/Streaming: Low-latency connections for competitive gaming

UTP Jumper Patch Cord Cat5 Cat5e Cat6 Cat6e Cat7 Cat8 Network Ethernet Rj45 Cat8 Lan Cable


Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m

Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m

Cat6 UTP Ethernet Cable 10Gbps RJ45 8P8C 1-10m


Specifications



UTP Jumper Patch Cord Cat5 Cat5e Cat6 Cat6e Cat7 Cat8 Network Ethernet Rj45 Cat8 Lan Cable
Property Value Units
DC Conductor Resistance Max. 9.38 Ω/100m
Resistance Unbalance Max. 2%
Mutual Capacitance Nom. @1kHz 5.6 nF/100m
Capacitance Unbalance pair/ground Max. @1kHz 160 pF/100m
Characteristic Impedance 0.772 -100 MHz 100+15 Ω
Maximum Delay Skew 1.0-100 MHz 45 ns/100m
Velocity of Propagation 68% Speed of Light
Maximum Propagation Delay 10 MHz 545 ns/100m
