Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps
Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps
Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps
Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps
Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps
Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps
Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps
Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps
Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps
Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps
Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps
Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps
Specifications
Model Number :
KC-0713
Place of Origin :
Guangdong, China
Brand Name :
KUNCAN
Certification :
USA,CE,RoHS
MOQ :
500 pieces
Price :
$0.42/M
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000PCS/Per Week
Delivery Time :
25days
Packaging Details :
PE Bag/pcs
Type :
CAT 6, CAT5/CAT5e/CAT6/CAT7
Number of Conductors :
8
Product name :
Cat6 Lan Cable
Cable gauge :
24AWG/26AWG/28AWG
Color :
Red/White/Black/Grey/Blue/Green
Conductor :
Bare Copper
Length :
305M
Jacket :
PVC/LSZH
Shield :
UTP/FTP/SFTP
Warranty :
1 year
Description

Cat5e Ethernet Network Cable

24AWG Copper | 350MHz Bandwidth | UTP/STP Options

Professional-grade Category 5e network cables for high-speed Ethernet (1000Mbps), PoE applications, and structured cabling systems. Available in shielded (STP) and unshielded (UTP) versions.

TIA/EIA-568-C.2 Certified RoHS Compliant 100% Copper Conductors 350MHz Bandwidth

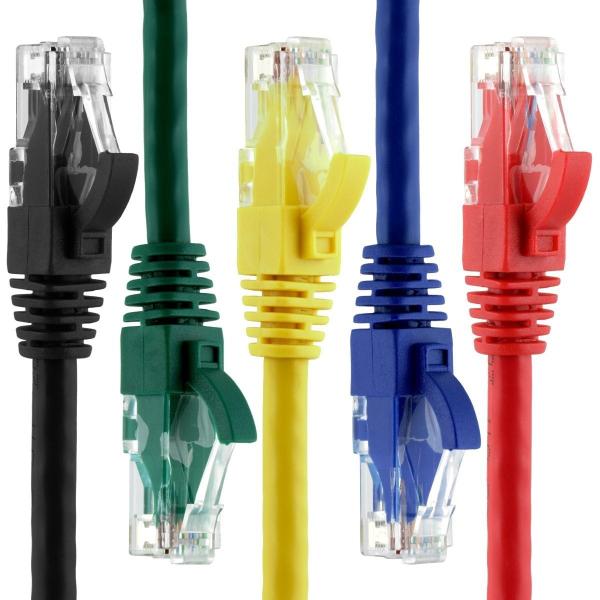

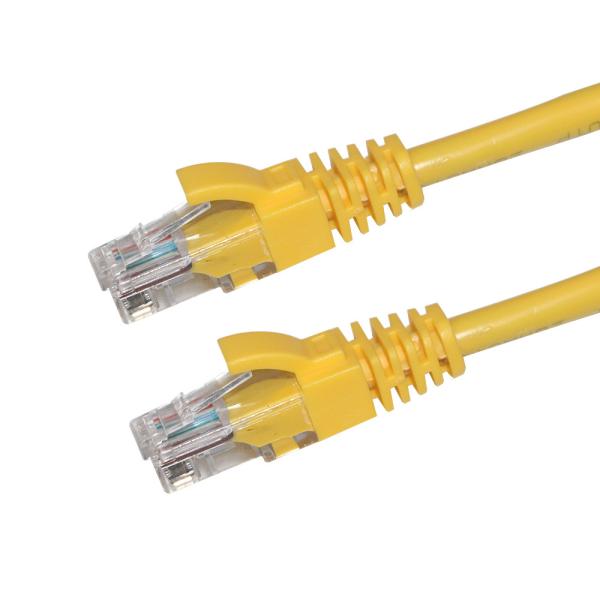

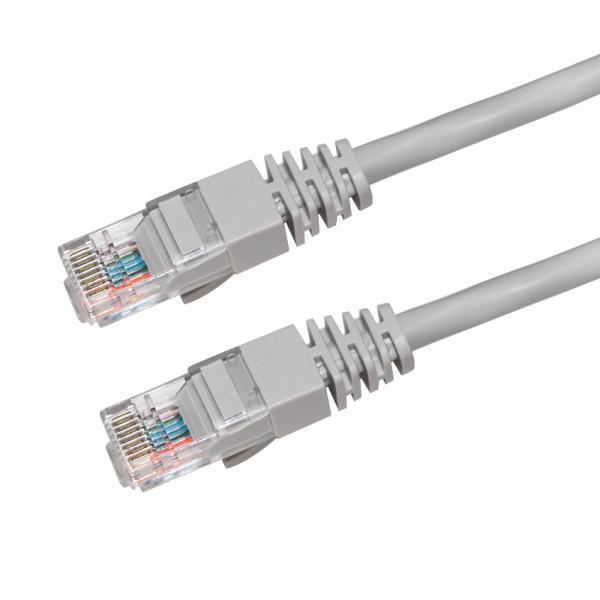

[Main product image showing cable with connectors] [Close-up of RJ45 connectors] [Label detail showing specifications]

Technical Specifications

  • Cable Standard: Cat5e
  • Conductor: 24AWG solid bare copper
  • Pairs: 4 twisted pairs (8 conductors)
  • Shielding: UTP (unshielded) or STP (foil shielded)
  • Bandwidth: 350MHz
  • Data Rate: Up to 1000Mbps (1Gbps)
  • PoE Support: IEEE 802.3af/at compatible
  • Jacket Material: PVC (CM/CMR) or LSZH

Available Options

  • Lengths: 1ft, 3ft, 5ft, 10ft, 25ft, 50ft, 100ft, 500ft (bulk)

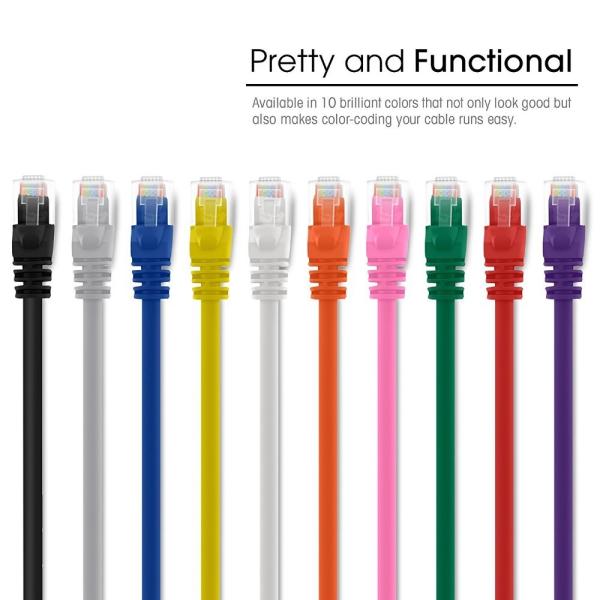

  • Colors: Blue, Gray, Black, White, Red, Green, Yellow
  • Connectors: RJ45 male to male (pre-terminated) or bare ends
  • Rating: CM (general use), CMR (riser), CMP (plenum)

Gigabit Ready

Supports 1000BASE-T (1Gbps) Ethernet for high-speed data transfer with minimal latency.

PoE Compatible

Delivers power and data simultaneously for IP cameras, VoIP phones, and wireless access points.

Reduced Crosstalk

Precision twisted pair design minimizes interference for stable connections.

Durable Construction

Gold-plated RJ45 connectors with strain relief boots for long-term reliability.

Detailed Specifications

Parameter Specification
Standard Compliance ISO/IEC
Conductor Material 100% bare copper (24AWG)
Impedance 100Ω ±15%
Propagation Delay ≤ 548 ns/100m
DC Resistance ≤ 9.38Ω/100m
Maximum Attenuation 22 dB @ 100MHz
NEXT Loss ≥ 30.1 dB @ 100MHz
Operating Temperature -20°C to 60°C (-4°F to 140°F)
Bend Radius ≥ 4x cable diameter

Applications

  • Office/enterprise network connectivity
  • Gigabit Ethernet (1000BASE-T)
  • Power over Ethernet (PoE) devices
  • CCTV and IP camera systems
  • Gaming consoles and streaming setups
  • Structured cabling systems

Networking Cable Connectors Ethernet Communication Cat 5 Cat5e Power Patch Cord

Product Parameters


Item Factory Price Cat5 Cat5e Cat6 Cat6A UTP FTP Ethernet Network Cable Patch Lan Cable
Category Cat5/Cat5e/Cat6/Cat7
Specification 2 pairs,4pairs,8pairs
Conductor 0.51mm(24AWG),0.4mm(26AWG)
Material Bare copper/CCS/CCA
Jacket PVC/LSZH
Shied

UTP(unshielded twisted pair), FTP(shielded foil twisted pair)

SFTP(shielded foil twisted pair)
Length Custom Made
Color Red/White/Black/Grey/Blue/Green,etc
Certification USA,CE,RoHS
Application Network Modem,LE Plate,Wall Socket,PC
Product Description

What are the details of our products?

Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps

Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1GbpsCat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps

Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1GbpsCat5e Ethernet Cable 24AWG UTP STP 350MHz 1GbpsCat5e Ethernet Cable 24AWG UTP STP 350MHz 1GbpsCat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps

Related Products




Buyer Feedback

Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps

FAQ

Q1: Are you factory or trade company?

A: We are factory of more than 16 years export experience.


Q2: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.


Q3: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.


Q4: Samples ?

A : 2-5 pieces free samples are available,fright on you. delivery time usually is 2-3 days. Customized samples will take 5-10days.


Q5: How will you maintain our long-term business relationship?

A: Quality is priority.We will keep offering products good in quality and competitive in price to ensure our customers benefit.


Q6:How to ship out the cargo?
A:At your request, by sea, by air, by express, all are available.

Cat5e Ethernet Cable 24AWG UTP STP 350MHz 1Gbps
