High-Capacity SF6 Recovery Unit 110m³/h Oil-Free Compressor | 1200L Storage | GIS/GIL Maintenance KSLH-110Y
High-Capacity SF6 Recovery Unit 110m³/h Oil-Free Compressor | 1200L Storage | GIS/GIL Maintenance KSLH-110Y
Specifications
Brand Name :
KSTONE
Model Number :
KSLH-110Y/160-1200WZ
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
1
Price :
$2000-$100000
Payment Terms :
T/T
Supply Ability :
10 per year
Delivery Time :
45 days
Packaging Details :
Carton / Wooden Box
Working Pressure :
0.5MPa
Application :
Gas Recovery
Vacuum Degree :
≤10Pa
Dimensions :
1200x800x1500mm
Recovery Rate :
99.9%
Noise Level :
≤75dB
Features :
High efficiency, low noise, easy operation
Capacity :
100kg/h
Weight :
≤800kg
Product Type :
Gas Recovery Machine
Description
High-Capacity SF6 Recovery Unit 110m³/h Oil-Free Compressor | 1200L Storage | GIS/GIL Maintenance KSLH-110Y

Industry Standard Leadership

As the principal drafter of China's DL/T1353-2024 technical specification for SF6 treatment systems, our solutions define industrial benchmarks. SF6 recovery equipment is custom-engineered with configurable features: negative-pressure recycling, oil-free compressionOil (optional), variable storage capacities, and fully automated operations.

System Overview

The KSLH-110Y/160-1200WZ high-capacity automated system is optimized for 550kV insulation pot withstand voltage testing. It integrates a 110m³/h oil-free main compressor, 160m³/h negative-pressure compressor (0.1MPa suction), 63m³/h pipeline vacuum pump (≤5Pa ultimate vacuum), and 1200L 304 stainless steel horizontal storage tank for efficient high-voltage SF6 management.

Technical Specifications Table

Component Specification
Main Compressor 110m³/h, oil-free, air-cooled piston
Negative-Pressure Compressor 160m³/h, 0.1MPa suction pressure
Pipeline Vacuum Pump 63m³/h, ≤5Pa ultimate vacuum
Liquid Storage Tank 1200L horizontal, 304 stainless steel(optional),

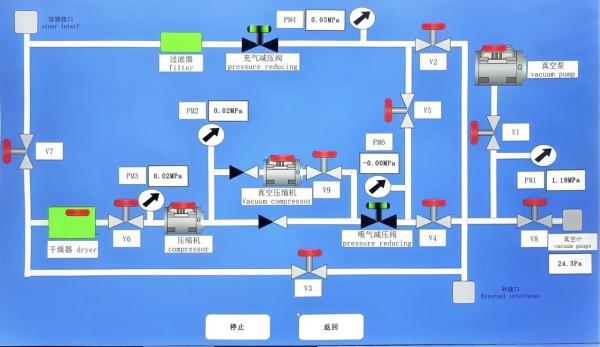

Control System PLC-based with HMI touchscreen
Filtration Module 0.1μm particle filter, 3ppm moisture trap
Power Supply 3Φ 380V 50Hz, 45kW total power

Custom Configuration Options

  • Compression Types: Oil-free / lubricated compressor selections
  • Storage Capacity: 500L–2000L tank volume variants
  • Functional Add-ons: Adsorption dehydration , gas purity analyzer
  • Mobility Solutions: Trailer-mounted

Compliance & Certifications

  • Compliant with DL/T1353-2024 and IEC 62271-403 standards
  • Rated for GIS/GIL systems up to 1100kV voltage class
  • ISO 14001:2015 environmental management certified
