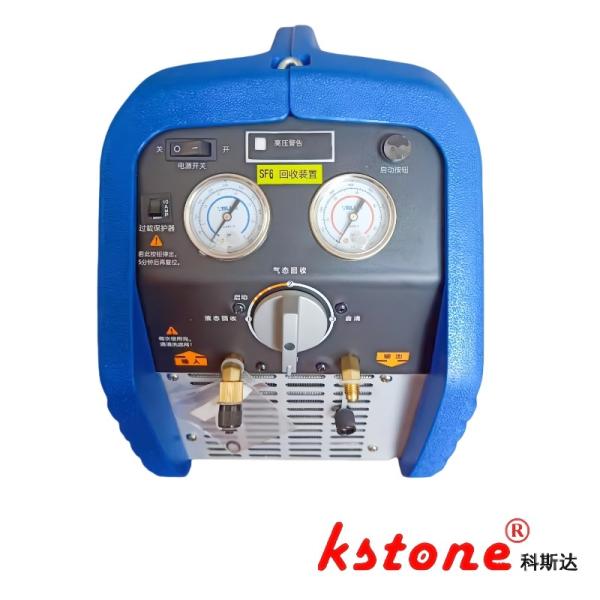

OEM 220V Portable Sf6 Gas Recovery Machine Steel Cylinder Filling KSLF-3Y/T
OEM 220V Portable Sf6 Gas Recovery Machine Steel Cylinder Filling KSLF-3Y/T
Specifications
Brand Name :
KSTONE
Model Number :
KSLF-3Y/T
Place of Origin :
Shanghai
Price :
$7000-$8000
Payment Terms :
T/T
Packaging Details :
Carton / Wooden Box
Certification :
ISO9000
MOQ :
5
Supply Ability :
100 per year
Delivery Time :
5 days
Application :
Gas Recovery and Purification
Weight :
≤ 25kg
Working Pressure :
≤ 0.5MPa
Power Supply :
AC 220V, 50Hz
Gas Type :
Sulfur Hexafluoride (SF6)
Power Consumption :
≤ 1.5kW
Warranty :
1 year
Operating Temperature :
0-50℃
Dimensions :
500mm x 400mm x 300mm
Description

OEM 220V Portable Sf6 Gas Recovery Machine Steel Cylinder Filling KSLF-3Y/T


This equipment is only used for the recovery of SF6 in 10-35kV medium-voltage switchgear. It is recommended to be used on-site, and it is generally not recommended for frequent use in the workshop.

Category Details
Model KSLF-3Y/T
Compressor Displacement 2.8m³/h
Compressor made in china (Imported option available)
Maximum Discharge Pressure 3.5MPa
Maximum Suction Pressure 0.4MPa
Allowable Discharge Pressure 3.2MPa
Cooling Method Air cooling
Recovery Final pressure ≤ 53Kpa. Gas recovery speed: 20 - 30 kg/h. Liquid recovery: 70 - 80 kg/h
Storage In liquid state, it can be directly pressed into the cylinder for storage. The total weight of the whole machine is less than 25 kg (excluding the gas cylinder)
Noise 60DB
Dimensions Length 500 * Height 400 * Width 300 (Estimated, subject to actual delivery)
Power 1KW
Power Supply 220V

Attachment List

Name Technical Parameters or Description Quantity
Compressor (Built-in) Maximum pressure 3.5MPa, displacement 2.8m³/h 1
Interface Pipeline Dedicated for Inflatable Cabinets Can be customized according to customer needs 1
Interface Pipeline for Connecting Gas Cylinders Standard configuration 1
Aluminum Alloy Outer Box Portable outer box 1


Preliminary:
A spare gas tank
Self-sealing valves that can be connected to electrical equipment

Operation:
Left side (input) connected to electrical equipment
Right (output) gas cylinder
Connect power supply AC220
Turn on the power switch
Gaseous recovery is generally used.
