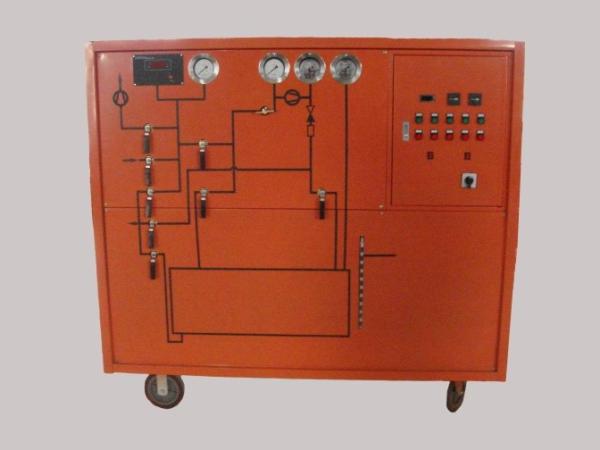

Manual Operation Basic SF6 Recovery Device Working Voltage Three-phase 230V 60Hz KSLH-18Y54100
Manual Operation Basic SF6 Recovery Device Working Voltage Three-phase 230V 60Hz KSLH-18Y54100
Specifications
Brand Name :
KSTONE
Model Number :
KSLH-18Y54100(23060Hz)
Certification :
ISO9001
Place of Origin :
shanghai
MOQ :
1
Price :
&12000-15000
Supply Ability :
1000set/year
Delivery Time :
10 work days
Packaging Details :
Fumigation wooden box
Description

Manual operation, basic SF6 recovery device, working voltage three-phase 230V 60Hz

KSLH-18Y54100(23060Hz)


Suitable for single-phase 110V regions such as the United States, Canada, Mexico, Cuba, Panama, Jamaica, Bolivia, Ecuador, etc

Suitable for 60Hz


1.Main technical performance parameters


Performance Parameters of the Device Details
Type Freeze liquefied, air-cooled, hand-pushed mobile
Working environment temperature -10 ℃~40 ℃
Initial pressure (MPa) 0.8
Recovery final pressure (MPa) ≤ 0.053
Time required for 1m³ volume (h/m³) * ≤ 0.5
Initial pressure (Pa) ≤ 133
Inflation final pressure (MPa) 0.7
Time required for 1m³ volume (h/m³) ≤ 0.2
Vacuumizing from 0.1MPa to 133Pa takes time (h/m³) ** ≤ 1.0
Ultimate vacuum (Pa) ≤ 10
Vacuum maintained at 133Pa for 24 hours with an increase value (Pa) ≤ 400
Annual leakage rate ≤ 1%
SF6 moisture content after recycling (PPM/V)*** ≤ 60
Gas purity and oil content (PPM/G) ≤ 10
Storage method Liquid
Storage pressure (MPa) 8
Capacity (L) 100
Gas storage capacity (kg) 100
Drying filter regeneration method Vacuum heating activation regeneration


2. Power supply three-phase four wire system 3 Φ 230V

Parameter Specification
Total power (kW) ≤ 10
Noise dB (A) ≤ 75


3. Main component performance parameters

Parameter Details
Form Semi enclosed
Theoretical displacement 18 m³/h
Maximum exhaust pressure 3.5 MPa
Allowable exhaust pressure 3.0 MPa
SF6 compressor
Minimum allowable suction pressure 53 KPa
Maximum allowable suction pressure 1.0 MPa
Maximum exhaust temperature 130 ℃
Power 2.2 kW
Power supply 3 Φ 230V 60Hz
Extraction rate 15 L/s
Vacuum pump ultimate vacuum ≤ 15 Pa
Lubricating oil HD25 refrigeration oil
Container
Category 2
Design pressure 8 MPa
Design temperature 45 ℃
Capacity 100 L
Storage capacity 100 kg


4. Transportation parameters

Item Details
Packaging Fumigation wooden box
Dimensions 1600 * 830 * 1200
Gross weight 570kg
