Large SF6 Vacuum Pump Unit, 2000m3/H, Multi Channel, DN40, DN80 [KSCZ-2000/600]
Large SF6 Vacuum Pump Unit, 2000m3/H, Multi Channel, DN40, DN80 [KSCZ-2000/600]
Large SF6 Vacuum Pump Unit, 2000m3/H, Multi Channel, DN40, DN80 [KSCZ-2000/600]
Large SF6 Vacuum Pump Unit, 2000m3/H, Multi Channel, DN40, DN80 [KSCZ-2000/600]
Large SF6 Vacuum Pump Unit, 2000m3/H, Multi Channel, DN40, DN80 [KSCZ-2000/600]
Large SF6 Vacuum Pump Unit, 2000m3/H, Multi Channel, DN40, DN80 [KSCZ-2000/600]
Specifications
Brand Name :
KSTONE
Model Number :
KSCZ-2000/600
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
1
Price :
$25000-$30000
Payment Terms :
T/T
Supply Ability :
10 per year
Delivery Time :
15 days
Packaging Details :
Wooden Box
Pump Configuration :
2000 m³/h Roots pump + 2×300 m³/h front-end pumps
Anti-Backflow :
Oil-based design for contamination prevention
Ultimate Vacuum :
6×10⁻² Pa
Power Supply :
380V AC, 50Hz
Standard Accessories :
3×10m DN40 pipelines
Pump Brand Options :
Leybold, Busch, or Made-in-China models
Pipeline Customization :
Adjustable quantity and length
Description

Large vacuum unit, 2000m3/h, multi-channel pipeline, anti backflow oil,KSCZ-2000/600

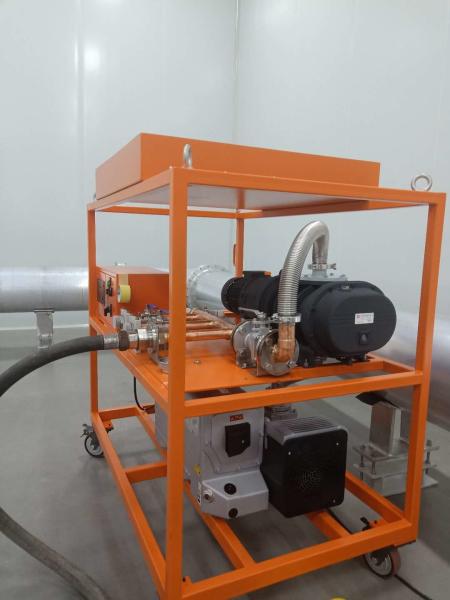

Engineered for heavy-duty industrial applications, the KSCZ-2000/600 vacuum unit features a 2000 m³/h Roots pump paired with two 300 m³/h front-end pumps, integrated with anti-backflow oil protection to prevent contamination. Capable of achieving an ultimate vacuum of 6×10⁻² Pa, the system is equipped with multi-channel connectivity via standard interfaces. Operating on a 380V AC 50Hz power supply, it includes three 10m DN40 pipelines as standard accessories. Customers can choose premium vacuum pumps from brands like Leybold or Busch, or opt for domestic Chinese models, with customizable pipeline quantity and length to suit specific project requirements.

Technical Parameter Table

Parameter Description
Model KSCZ-2000/600
Pump Configuration 2000 m³/h Roots pump + 2×300 m³/h front-end pumps
Anti-Backflow Protection Oil-based design for contamination prevention
Ultimate Vacuum 6×10⁻² Pa
Power Supply 380V AC, 50Hz
Standard Accessories 3×10m DN40 pipelines
Pump Brand Options Leybold, Busch, or Made-in-China models
Pipeline Customization Adjustable quantity and length
