DN20, Vacuum Unit, SF6 Gas Refilling Device, 220V 50Hz, 300L/S [KSCZ-1080/300]
DN20, Vacuum Unit, SF6 Gas Refilling Device, 220V 50Hz, 300L/S [KSCZ-1080/300]
Specifications
Brand Name :
KSTONE
Model Number :
KSCZ-1080/300
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
1
Price :
$25000-$30000
Payment Terms :
T/T
Supply Ability :
100 per year
Delivery Time :
10 days
Packaging Details :
Wooden Box
Pump System :
300 m³/h front-stage pump
Valve Connections :
M27 threaded ports for multi-channel integration *2
Ultimate Vacuum :
6×10⁻² Pa
Anti-Backflow Protection :
Oil-based design for contamination prevention
Pump Brand Options :
Leybold, Busch, or Made-in-China models
Description

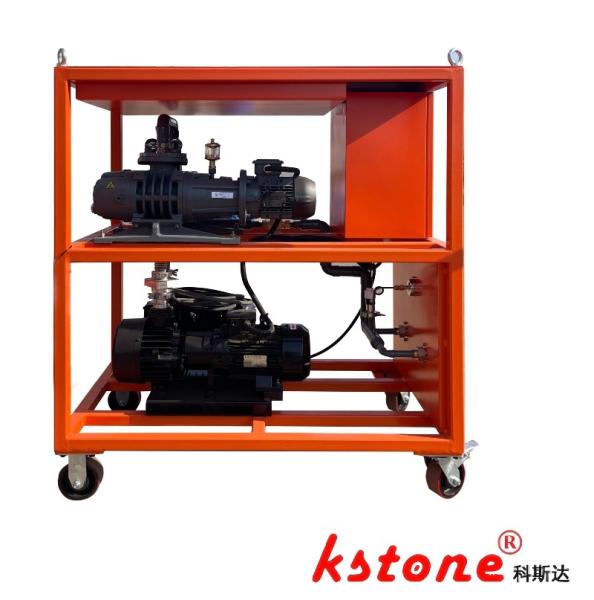

High-Efficiency Large Vacuum System - Model KSCZ-1080/300

Applicable voltage:220v50Hz

Designed for industrial scenarios requiring extreme vacuum conditions, the KSCZ-1080/300 integrates a 1080 m³/h Roots pump and 300 m³/h front-stage pump. Its anti-backflow oil mechanism prevents contamination, while dual M27 threaded ports enable multi-channel pumping. The system achieves an ultimate vacuum of 6×10⁻² Pa, operating on 380V AC 50Hz power. Standard accessories include three 10m DN20 pipelines with M36 threads. Customers can choose premium pumps from Leybold/Busch or cost-effective Chinese models, with customizable pipeline length and quantity to fit project needs.

Technical Parameters Table

Parameter Description
Model KSCZ-1080/300
Pump Configuration 1080 m³/h Roots pump + 300 m³/h front-stage pump
Anti-Backflow Protection Oil-based design to prevent contamination
Valve Ports 2× M27 threaded ports for multi-channel operation
Ultimate Vacuum 6×10⁻² Pa
Power Supply 380V AC, 50Hz
Standard Accessories 3×10m DN20 pipelines (M36 threads)
Pump Brand Options Leybold, Busch, or Made-in-China models
Pipeline Customization Adjustable quantity and length according to requirements
