Fully Automatic Vacuum Unit, Multi-Channel Vacuum Pumping, Precise Control Of Vacuum Degree, Static Vacuum Degree [KSCZ-300/1000Z]
Fully Automatic Vacuum Unit, Multi-Channel Vacuum Pumping, Precise Control Of Vacuum Degree, Static Vacuum Degree [KSCZ-300/1000Z]
Fully Automatic Vacuum Unit, Multi-Channel Vacuum Pumping, Precise Control Of Vacuum Degree, Static Vacuum Degree [KSCZ-300/1000Z]
Fully Automatic Vacuum Unit, Multi-Channel Vacuum Pumping, Precise Control Of Vacuum Degree, Static Vacuum Degree [KSCZ-300/1000Z]
Fully Automatic Vacuum Unit, Multi-Channel Vacuum Pumping, Precise Control Of Vacuum Degree, Static Vacuum Degree [KSCZ-300/1000Z]
Fully Automatic Vacuum Unit, Multi-Channel Vacuum Pumping, Precise Control Of Vacuum Degree, Static Vacuum Degree [KSCZ-300/1000Z]
Fully Automatic Vacuum Unit, Multi-Channel Vacuum Pumping, Precise Control Of Vacuum Degree, Static Vacuum Degree [KSCZ-300/1000Z]
Fully Automatic Vacuum Unit, Multi-Channel Vacuum Pumping, Precise Control Of Vacuum Degree, Static Vacuum Degree [KSCZ-300/1000Z]
Specifications
Brand Name :
KSTONE
Model Number :
KSCZ-300/1000Z
Place of Origin :
Shanghai
Price :
$20000-$25000
Payment Terms :
T/T
Packaging Details :
Wooden Box
MOQ :
1
Delivery Time :
30 days
Certification :
ISO9000
Supply Ability :
10 per year
Type :
Air-cooled hand-push mobile type
Operating Environment Temperature :
-10℃～40℃
Pre-stage Vacuum Pump Extraction Rate :
300 m³/s
Ultimate Vacuum :
≤10 Pa
Power :
4 kW
Brand :
Leybold (optional)
Roots Vacuum Pump Extraction Rate :
1000 m³/s
Description

Full-Auto Vacuum Pumping Unit – Air-Cooled, Hand-Push Mobile, Leybold or Made in China (optional) Pumps KSCZ-300/1000Z

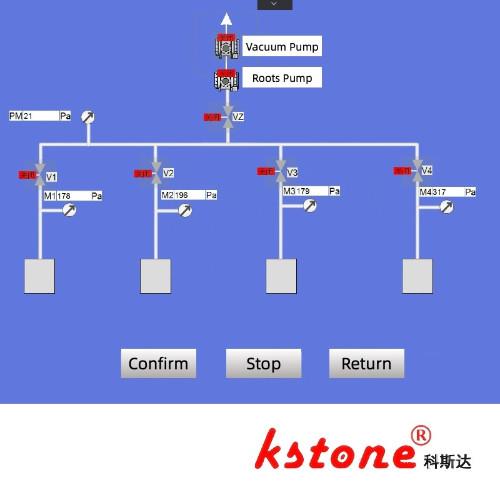

This vacuum unit adopts fully automatic control and can vacuum 4 products at once, with static control of vacuum degree；

Target vacuum value can be set, and vacuum pumping delay time can be set;
Can calculate the change in vacuum degree after stopping vacuuming;

Fully Automatic Vacuum Unit, Multi-Channel Vacuum Pumping, Precise Control Of Vacuum Degree, Static Vacuum Degree [KSCZ-300/1000Z]


Technical Parameters and Performance Indicators of the Device

Model

KSCZ-300/1000Z
Type Air-cooled hand-push mobile type
Operating Environment Temperature

-10℃～40℃
Pre-stage Vacuum Pump Extraction Rate (m³/s) 300
Ultimate Vacuum (Pa) ≤20
Power (kW) 7.5
Brand Leybold(optional);
Roots Vacuum Pump Extraction Rate (m³/s) 1000
Ultimate Vacuum (Pa) ≤10
Power (kW) 4
Brand Leybold(optional);
External Interface Dn20 4 channels (default)
Power Supply Three-phase four-wire system 3Φ 380(optional);
Total Power (kW) ≤15
Noise dB(A) ≤75

The electrical system automatically verifies and manually adjusts the three-phase power supply.

It is also equipped with a phase loss protection function, which can effectively prevent the reverse rotation of the vacuum pump and the operation of all main units under phase loss conditions. Additionally,

it has a power failure protection function to prevent oil backflow in the vacuum pump during power outages.

Power Supply optional;
Vacuum pump brands are optional;
