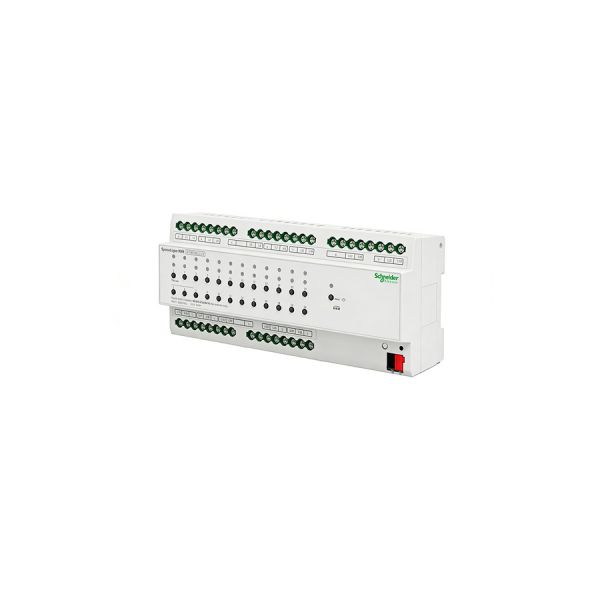

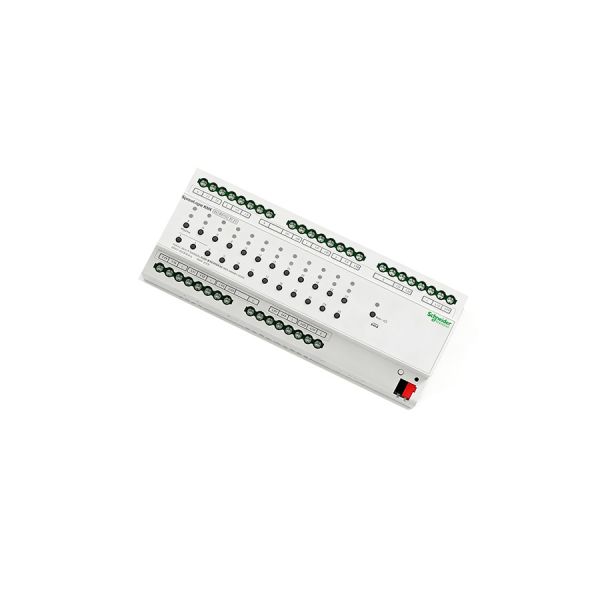

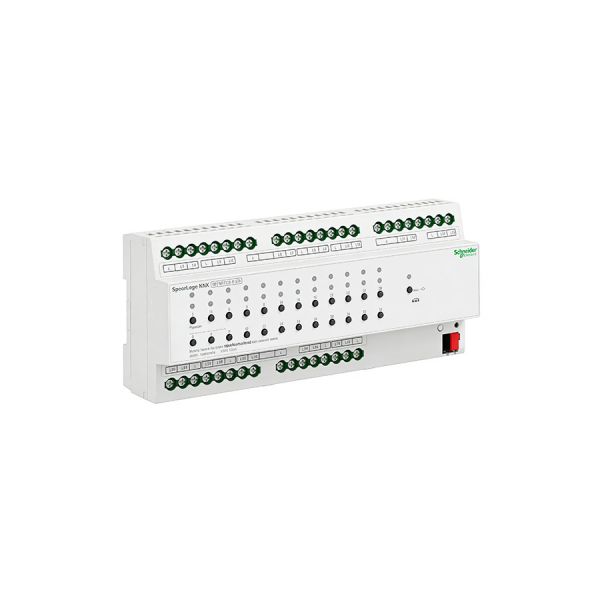

MTN6700-0124 Schneider SpaceLogic KNX 24-Channel Hybrid Switch Actuator with Manual Override
MTN6700-0124 Schneider SpaceLogic KNX 24-Channel Hybrid Switch Actuator with Manual Override
MTN6700-0124 Schneider SpaceLogic KNX 24-Channel Hybrid Switch Actuator with Manual Override
MTN6700-0124 Schneider SpaceLogic KNX 24-Channel Hybrid Switch Actuator with Manual Override
MTN6700-0124 Schneider SpaceLogic KNX 24-Channel Hybrid Switch Actuator with Manual Override
MTN6700-0124 Schneider SpaceLogic KNX 24-Channel Hybrid Switch Actuator with Manual Override
Specifications
Brand Name :
Schneider
Model Number :
MTN6700-0124
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Device Type :
Hybrid Switch Actuator
Rated Voltage :
250 V AC
Number of Channels :
24 Independent Channels
Rated Current :
10A
Description
Schneider SpaceLogic KNX 24-Channel Hybrid Switch Actuator with Manual Override
The MTN6700-0124 Schneider SpaceLogic KNX 24-Channel Hybrid Switch Actuator delivers advanced building automation control with manual override capabilities for reliable operation in commercial and industrial applications.
Technical Specifications
Model Number MTN6700-0124
Product Series SpaceLogic
Communication Protocol KNX Building Automation
Device Type Hybrid Switch Actuator
Number of Channels 24 Independent Channels
Rated Voltage 250 V AC
Rated Current 10 A per Channel
Compatible Load Types Resistive, Inductive, Capacitive, LED, Lighting and Small Electrical Loads
Manual Operation Manual Override / Local Operation
Mounting Type DIN-Rail Mounting
Protection Features Overload, Overcurrent, Over-Temperature Protection
Core Functions
  • 24-channel independent switching control via KNX bus communication
  • Hybrid output technology supports wide range of electrical load types
  • Manual mode for commissioning and emergency local control operations
  • Advanced control features including scene control, group control, timing functions, and staircase lighting
  • Real-time status feedback through KNX communication system
  • High stability design for continuous 24/7 building automation operation
Application Environments
This hybrid switch actuator is engineered for demanding commercial and public building applications:
  • Large office buildings and corporate complexes
  • Commercial centers and retail shopping malls
  • Hotels, convention centers, and lobby areas
  • Transportation hubs including airports and train stations
  • Healthcare facilities, hospitals, and educational institutions
  • Large-scale residential complexes and high-density KNX lighting systems
Key Advantages
  • 24-channel high-density design optimizes cabinet space utilization
  • Hybrid technology ensures broad compatibility with various electrical loads
  • Manual override mode enhances safety and commissioning efficiency
  • Compact DIN-rail installation for easy integration
  • Proven reliability for large commercial and public building automation systems
