Core Technical Parameters

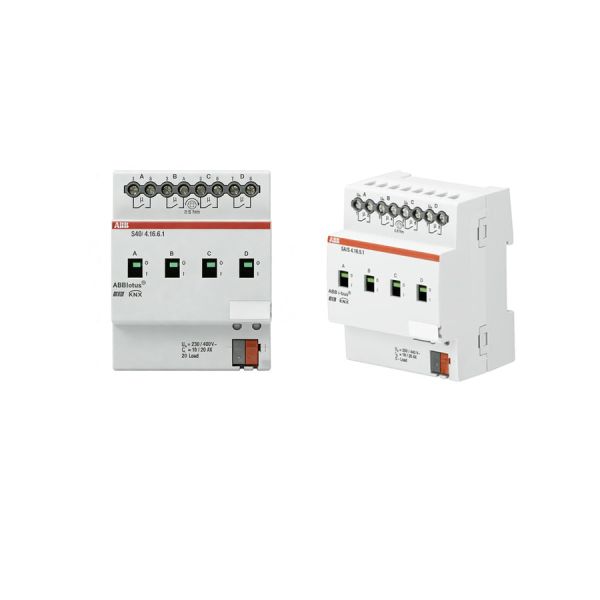

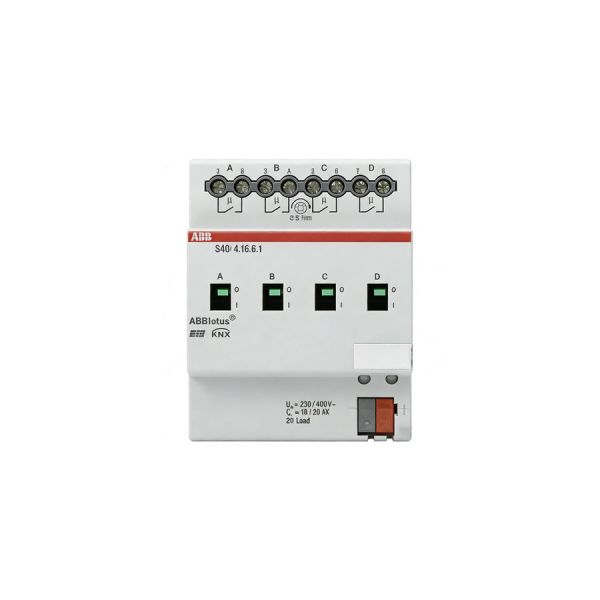

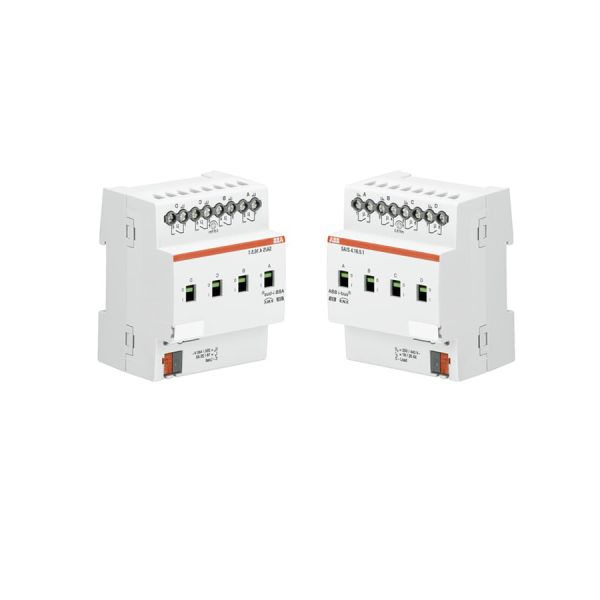

• Basic Specification: Model SA/S 4.16.5.1, belonging to the ABB MDRC professional actuator series, is an industrial-grade dual-rating switch actuator designed specifically for capacitive loads. Its core positioning is a core executive device for medium and high-power capacitive loads in intelligent buildings, suitable for the precise management of capacitive loads in large building partitions or the whole of small and medium-sized buildings.
• Rated Load: Dual-rating AC switching capacity (16 AX/20 AX), optimally designed for capacitive loads and can be flexibly adapted according to load power — 16 AX for small and medium-sized capacitive loads, 20 AX for medium and high-power capacitive loads. It is mainly compatible with LED lighting, fluorescent lamps, capacitive fans/water pumps, landscape lighting capacitive circuits, etc., and also compatible with conventional resistive and inductive auxiliary loads, with far higher adaptation flexibility than single-rating products.
• Communication & Compatibility: Natively compatible with ABB building automation control system, perfectly supporting the KNX/EIB intelligent building control bus (mainstream industry protocol). It can realize three modes: centralized control, distributed control and remote linkage, adapting to the standardized wiring and commissioning of intelligent buildings. It can seamlessly connect with the central control system, feed back the operation status of capacitive loads in real time, support multi-device linkage programming, and adapt to complex capacitive load management scenarios.
• Product Attributes: Adopting industrial-grade high-strength design, it has the characteristics of strong anti-electromagnetic interference, temperature resistance (-10℃~50℃), moisture resistance and vibration resistance, and can stably work in complex electrical environments such as large building distribution boxes and control cabinets. With a solid structure and size adapted to the layout of large load control equipment, it supports 24-hour continuous and stable operation, and is convenient for disassembly, debugging and maintenance in the later stage, adapting to industrial-grade long-term use needs.
• Core Features: Built-in triple electrical protection of overload, short circuit and over-temperature. Aiming at the characteristics of large starting current and easy surge of capacitive loads, it optimizes on-off control and heat dissipation logic, effectively avoiding equipment damage and extending the service life of products and controlled capacitive loads. It is adapted to wide voltage input, compatible with building power grid standards in different countries/regions, with strong versatility and no need for additional adaptive accessories.

2. Core Application Scenarios

• Commercial Complexes: Start-stop and linkage control of large-area LED public lighting, fluorescent lighting circuits, high-power LED display cabinets in shopping windows, capacitive ventilation fans, and high-power capacitive circuits for landscape lighting in large shopping malls, high-end office buildings and five-star hotels, adapting to the needs of intelligent energy saving and lighting atmosphere management in commercial scenarios.
• Industrial Buildings: On-off control of workshop LED main lighting, computer room capacitive cooling fans, capacitive power circuits in production auxiliary areas, and high-power LED lighting in storage areas in standard factories, large R&D workshops and medium data centers, taking into account the anti-interference of industrial scenarios and the control stability of capacitive loads.
• Large Public Buildings: Control of main venue lighting (LED/fluorescent lamps), high-power capacitive lighting in public areas, small central air conditioning capacitive auxiliary water pumps, and landscape lighting capacitive circuits in stadiums, convention and exhibition centers, cultural and art centers, and large hospitals, adapting to the centralized management needs of large spaces and multiple heavy-duty capacitive loads in public buildings.
• Smart Parks & Large Residences: Control of road LED lighting, park capacitive water supply and drainage pumps, and large landscape lighting capacitive circuits in smart industrial parks; centralized linkage control of underground garage LED lighting/capacitive exhaust equipment and high-power LED lighting in community public areas in large commercial and residential complexes and high-end residential communities, adapting to the convenient management of large-scale capacitive loads.
