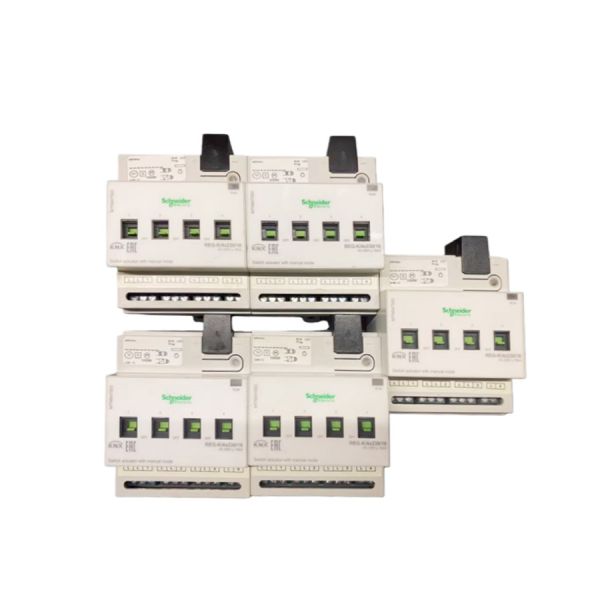

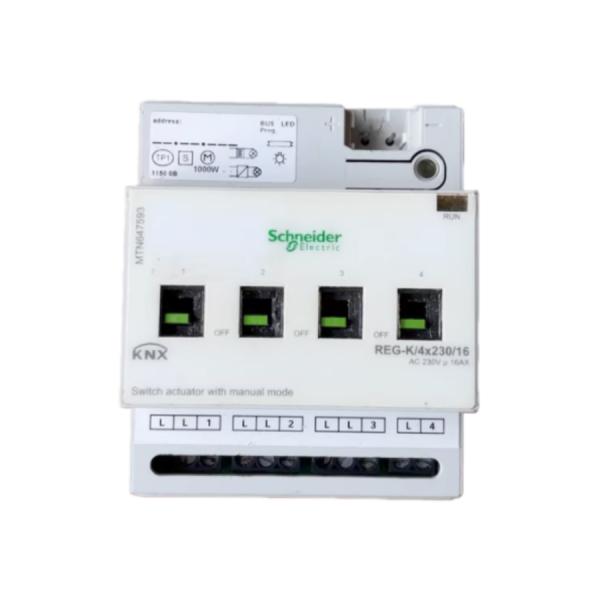

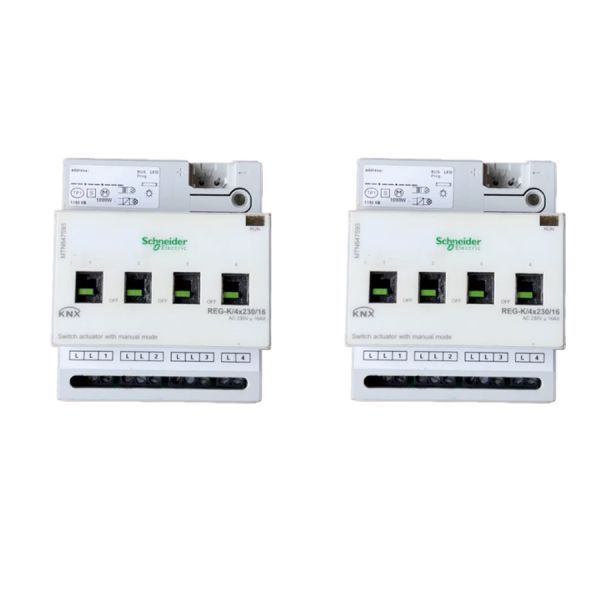

MTN647593 Schneider SpaceLogic KNX REG-K Switch Actuator 4x230V/16A with Manual Mode

I. Core Parameter Analysis

1. Core Functional Parameters

2. General Technical Parameters (Referenced from Similar REG-K Series Actuators)

II. Main Application Scenarios

1. Commercial Building Scenarios

• Small-to-Medium-Sized Offices/Startup Studios:The 4 channels control the power supply of office central air conditioners, meeting room projection equipment, ventilation fan arrays and large ceiling lighting systems. Link with temperature sensors to automatically turn on air conditioners when the room temperature exceeds the set value; the delayed start/stop function avoids grid impact when multiple devices start simultaneously.
• Retail Stores/Boutiques:Control the power supply of store display cabinet lighting, commercial air conditioners, background music systems and fitting room ventilation fans. Set "business start mode" to automatically turn on all equipment in sequence at 9:00 a.m.; set "business close mode" to turn off non-essential equipment uniformly at 10:00 p.m. The manual control function is convenient for clerks to adjust equipment status temporarily.
• Cafés/Small Restaurants:Control the power supply of dining area ambient lighting, kitchen exhaust fans, commercial refrigerators and air conditioners. Link with door sensors to automatically turn on welcome lights and exhaust fans when customers enter the store; the overload protection function prevents equipment damage caused by excessive load of kitchen electrical appliances.
• Small Warehouses/Logistics Points:Control the power supply of warehouse ventilation fans, lighting systems, small conveyor belts and electric forklift charging stations. The 16A mid-load capacity can meet the power demand of small logistics equipment, and the manual mode ensures normal operation of key equipment when the system fails.

2. Civil Residence Scenarios

• Large Apartments/Improved Residences:The 4 channels control the power supply of living room central air conditioners, bedroom electric heaters, kitchen large-range hoods and balcony landscape light arrays. Link with voice assistants to realize voice control (e.g., "turn on the living room air conditioner", "turn off the kitchen range hood"); the compact size is suitable for apartment distribution cabinets with limited space.
• Villas/Townhouses:Control the power supply of guest room air conditioners, garage ventilation fans, courtyard fountain pumps and indoor large lighting systems. Set "homecoming mode" to automatically turn on air conditioners and welcome lights when the door is unlocked; set "away mode" to turn off all non-essential equipment uniformly.
• Home Theaters/Private Gyms:Control the power supply of home theater projection equipment, audio systems, gym air conditioners and ventilation fans. Set "movie mode" to automatically turn on projection equipment and audio, and turn off other lighting; the manual mode is convenient for emergency adjustment of equipment during use.

III. Core Product Advantages

1. Mid-Load Adaptability & Cost-Effectiveness:16A per-channel load capacity fills the gap between 10A low-load and 20A high-load models, perfectly matching the power demand of medium-power equipment. It has higher cost performance than 20A high-load models, making it suitable for scenarios with balanced load and cost requirements.
2. Dual-Control Guarantee & High Reliability:Combines KNX automatic linkage and local manual control, solving the pain point of "equipment downtime caused by system failure". It is especially suitable for key scenarios that cannot afford medium-power equipment shutdown, such as office air conditioners and store refrigerators.
3. REG-K Professional Control Logic:Built-in delayed start/stop and overload protection functions, avoiding grid impact and equipment damage caused by improper operation of medium-power loads, and extending the service life of electrical equipment.
4. Easy Installation & Maintenance:Standard DIN rail mounting design, consistent with other KNX devices, facilitating centralized wiring and later inspection and replacement; the indicator function enables quick fault location, reducing maintenance time and costs.
5. Strong Compatibility & Scalability:Complies with KNX TP1 standard protocol, compatible with mainstream KNX device brands; supports connection with KNX IP gateways and master controllers, and can be flexibly expanded according to the scale of application scenarios.
