Schneide Spacelogic KNX Blind Actuator 8 Independent Channels Manual Operation MTN649808
Schneide Spacelogic KNX Blind Actuator 8 Independent Channels Manual Operation MTN649808
Schneide Spacelogic KNX Blind Actuator 8 Independent Channels Manual Operation MTN649808
Schneide Spacelogic KNX Blind Actuator 8 Independent Channels Manual Operation MTN649808
Schneide Spacelogic KNX Blind Actuator 8 Independent Channels Manual Operation MTN649808
Schneide Spacelogic KNX Blind Actuator 8 Independent Channels Manual Operation MTN649808
Specifications
Brand Name :
Schneide
Model Number :
MTN649808
Certification :
CE Rohs
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Cartonm
Control Methods :
Remote control, mobile app, voice control
Timer Function :
Supports scheduling and timer settings
Operating Temperature :
-10°C to 50°C
Installation :
Wall-mounted or integrated into curtain rail
Load Capacity :
Supports motors up to 100W
Warranty :
1 year manufacturer warranty
Power Supply :
AC 110-240V or DC 12-24V
Safety Features :
Overload protection, short circuit protection
Dimensions :
Approx. 80mm x 50mm x 25mm
Compatibility :
Works with various curtain motors and smart home systems
Type :
Smart Home Automation Device
Communication Protocols :
Wi-Fi, Zigbee, Z-Wave, or RF
Integration :
Compatible with Alexa, Google Assistant, and Apple HomeKit
Material :
Fire-retardant plastic housing
Function :
Automated control of curtains and blinds
Description
Product Overview

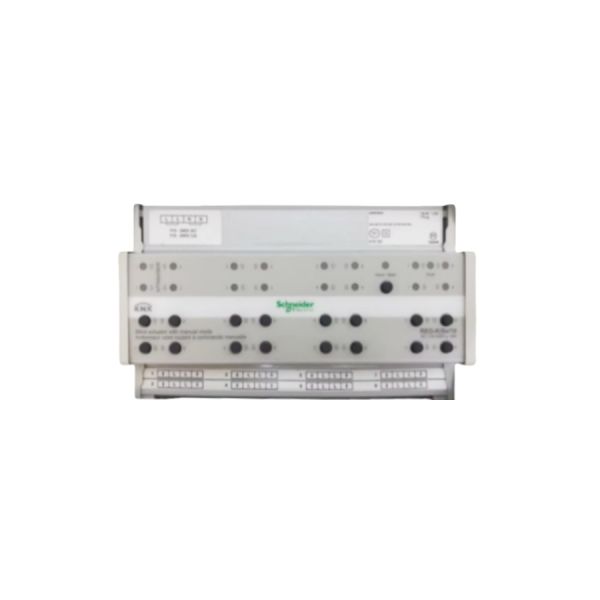

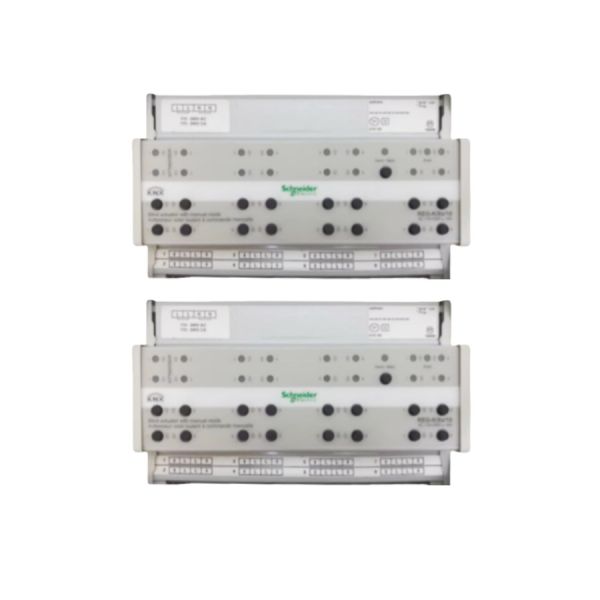

The MTN649808 Schneide Spacelogic KNX Blind Actuator is an 8-channel integrated control module designed for centralized management of blinds and shutters in smart building systems. Featuring manual operation capability and light grey finish, this actuator provides reliable performance for residential, commercial, and industrial applications.

Technical Specifications
Electrical Parameters
Parameter Specification Details
Product Model MTN649808 Schneide SpaceLogic KNX series, REG-K/8x/10 specification for centralized control of 8 blinds/shutters
Rated Voltage 230V AC 50/60Hz (main)
24V DC (KNX bus)		 Compatible with worldwide mains power; supports bus-only mode operation without mains power
Rated Current 10A (resistive load) Each channel requires external 10A circuit breaker; compatible with most blind motors
Maximum Load Power 1000W (230V AC motor load) Compatible with common blind motor powers (500W-800W); cosφ=0.6 for inductive loads
Output Channels 8 independent blind/shutter outputs Each channel controls one motor with limit switches; reduces device count and wiring costs
Functional Features
Feature Capability Benefits
Operating Modes Bus + Mains, Bus-Only, Mains-Only Ensures uninterrupted control during power outages or bus failures
Control Methods Automatic (KNX bus) & Manual (physical buttons) Supports smart automation and emergency manual operation
Status Indication Tricolor LED indicators Quick status monitoring and fault identification
Bus Integration Integrated KNX bus coupler No additional hardware required; simplifies installation
Installation & Environmental
Parameter Specification Application
Installation DIN rail (TH35 standard) 8-module width (approx. 144mm); compatible with standard distribution boxes
IP Rating IP20 Indoor dry environments only; not for outdoor or humid areas
Operating Temperature -5°C to +45°C Suitable for most indoor climate zones worldwide
Certifications CE, KNX, RoHS Complies with EU and international standards; mercury-free design
Application Scenarios
Residential Applications

Villas & Luxury Apartments

  • 8 channels cover multiple rooms/areas (living room, bedroom, study, balcony)
  • Mains-only mode ensures operation during smart system failures
  • Direct 230V mains compatibility reduces installation complexity
Commercial Applications

Offices, Shopping Malls & Hotels

  • Centralized control for multiple floors/areas reduces equipment count
  • Integration with KNX building automation for smart scenarios
  • LED indicators enable quick fault identification and maintenance
Public Spaces

Hospitals, Schools & Government Buildings

  • IP20 protection suitable for indoor dry environments
  • Energy-saving linkage with light sensors
  • Multi-power supply ensures uninterrupted operation
Key Advantages
  • High Integration: 8 channels in one module reduces equipment count and costs by 75%
  • Power Redundancy: Three operating modes ensure uninterrupted control
  • Manual Operation: Physical buttons enable control without programming
  • System Compatibility: Integrated KNX bus coupler and PLC linkage support
  • Safety & Reliability: Overload protection and wide voltage adaptation
Important Notes
  • Load Compatibility: Only works with motors equipped with limit switches
  • Installation: Must be performed by qualified professionals with proper grounding
  • Circuit Protection: Each channel requires independent 10A circuit breaker
  • Environment: Indoor dry locations only; additional protection needed for humid areas
  • Programming: Set motor running time limits (30-60 seconds) for additional protection
Summary

The MTN649808 Schneide Spacelogic KNX Blind Actuator is a highly integrated and reliable solution for mid-to-high-end smart buildings. Its 8-channel design, multi-power supply modes, and emergency manual operation make it ideal for large-scale projects requiring centralized control, reliability, and cost-effectiveness. The actuator excels in commercial buildings, public spaces, and high-end residential applications where integration and redundancy are critical.
