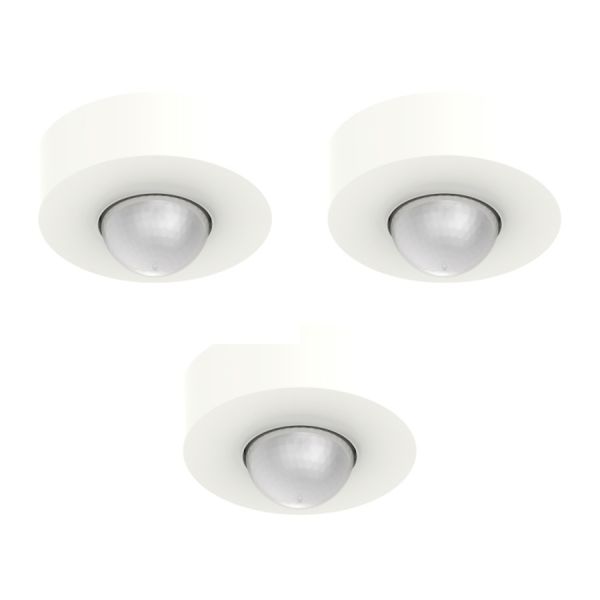

MTN354-0019 KNX Presence Detector Flush Mounted Dual Channel Sensor for Warehouses & Sports Halls
MTN354-0019 KNX Presence Detector Flush Mounted Dual Channel Sensor for Warehouses & Sports Halls
MTN354-0019 KNX Presence Detector Flush Mounted Dual Channel Sensor for Warehouses & Sports Halls
MTN354-0019 KNX Presence Detector Flush Mounted Dual Channel Sensor for Warehouses & Sports Halls
MTN354-0019 KNX Presence Detector Flush Mounted Dual Channel Sensor for Warehouses & Sports Halls
MTN354-0019 KNX Presence Detector Flush Mounted Dual Channel Sensor for Warehouses & Sports Halls
Specifications
Brand Name :
Schneide
Model Number :
MTN6354-0019
Certification :
RoHS/CE
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Color :
White
Protectionrating :
IP20
Angle of detection :
360°
Responsetime :
10 ms
Measurementrange :
0-100 units
Operatingtemperature :
-20°C to 70°C
Type :
Sensor
Application :
Offices, waiting rooms，private areas, public buildings Corridors, garages
Weight :
100 grams
Installation site :
False ceiling mounting, indoor F
Optimal mounting height :
4-14m
Dimensions :
124 x 65 mm
Description
MTN354-0019 KNX Presence Detector Flush-Mounted Dual-Channel Sensor for High-Ceiling Warehouses & Sports Halls
Core Technical Specifications
Category Key Details
Basic Attributes KNX flush-mounted presence detector, designed for high-ceiling spaces; white finish
Detection Performance Dual passive infrared (PIR) sensors for detecting even subtle human movement; 2-channel motion detection + 1-channel brightness sensing (0–10000 lux adjustable)
KNX Integration Sends 1-bit/byte KNX telegrams for lighting control (motion/brightness triggered); 1 additional channel for HVAC/ventilation control
Installation Flush ceiling-mount (IP54 rated for dust/water protection); surface-mount housing available as an accessory; fits standard junction boxes
Additional Features IR receiver for remote configuration; LED status indicator (test mode feedback); supports master-slave mode for multi-device coverage
Power Supply KNX bus-powered (21–30V DC, <12mA)
Environmental Operating temperature: -5°C to +45°C; humidity: 0–93% RH (non-condensing)
