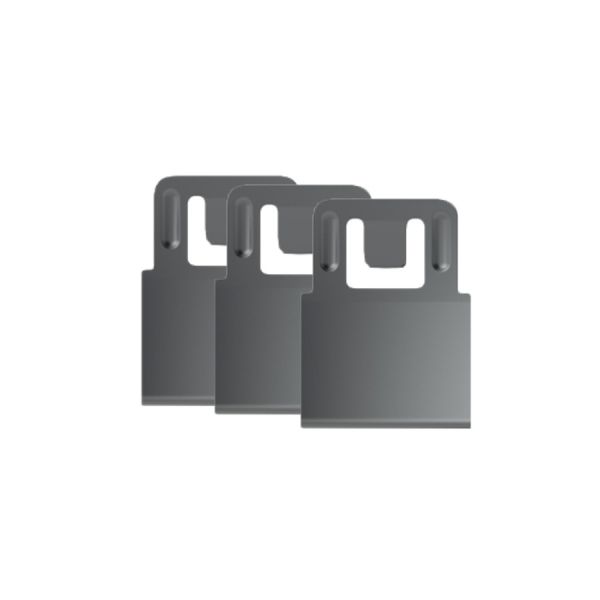

MTN6270-0000 Schneider MTN6270-0000 Dismantling Protection Module KNX System Dedicated

Core Parameters

1. Product Model: MTN6270-0000
2. Product Name: Dismantling Protection Module
3. Product Type: Safety protection accessory for front-end devices of KNX building automation systems, compatible with various KNX touch panels, sensors and control terminals
4. Core Specifications of Dismantling Protection
   • Trigger Mechanism: Mechanical contact tamper detection. When the panel/sensor is illegally pried or disassembled, the internal contact is disconnected immediately and an alarm signal is triggered.
   • Alarm Response: Sends an alarm command to the central control system via KNX bus within 50ms after triggering, supporting local sound and light alarm linkage (external buzzer/indicator light required).
   • Reset Method: Supports manual reset (professional personnel operation required) and remote software reset (administrator permission), and automatically resumes normal monitoring status after reset.


5. Communication & Power Supply Parameters
   • Communication Protocol: Natively compatible with KNX/EIB bus protocol, seamlessly integrated into KNX building automation system, supporting real-time communication with central management platform.
   • Power Supply: KNX bus-powered (DC 24V), no additional independent power supply required, power consumption ≤ 0.5W, no extra load on system power supply.
   • Signal Transmission Distance: Supports maximum 1000m KNX bus communication distance, suitable for long-distance wiring needs of large buildings.


6. Installation & Compatibility
   • Installation Method: Embedded installation, compatible with standard 86-type back box, assembled with KNX touch panels, sensors and other front-end devices, no additional drilling required during installation.
   • Compatible Devices: Full range of Schneider KNX Multitouch Pro panels, temperature sensors, intelligent control terminals, as well as third-party KNX certified front-end devices.
   • Environmental Adaptability: Operating temperature -20℃~60℃, protection class IP20, suitable for indoor dry environment installation.


7. Additional Features
   • Anti-false Trigger Design: Built-in anti-shake algorithm, effectively filtering short-term disassembly actions during installation and commissioning to avoid false alarms.
   • Status Monitoring: Supports feeding back its own working status to the KNX system, automatically reporting faults when they occur, facilitating troubleshooting by operation and maintenance personnel.



2. Product Positioning

3. Application Scenarios

1. Equipment Protection in Financial Institution Outlets: Used with KNX temperature and humidity sensors and security linkage panels in bank business halls and areas around ATMs, preventing system failure caused by illegal disassembly of equipment. After triggering an alarm, it can link video surveillance and on-site sound and light alarms to ensure the safety of financial places.
2. Protection in Confidential Office Areas of Government Agencies: Deployed on KNX intelligent panels in confidential meeting rooms and confidential rooms, preventing unauthorized personnel from disassembling panels to obtain system control rights or implant malicious devices. Alarm information is synchronously pushed to the security center for rapid response.
3. Protection in Public Areas of High-end Commercial Complexes: Used with KNX lighting control panels and passenger flow counting sensors in crowded areas such as mall atriums and elevator halls, preventing man-made damage or theft of equipment, reducing operation and maintenance costs, and ensuring the stable operation of equipment in public areas.
4. Equipment Protection in Star-rated Hotel Guest Rooms: Embedded in KNX intelligent touch panels of guest rooms, preventing guests or irrelevant personnel from disassembling panels to cause failure of guest room control systems. After triggering an alarm, the hotel engineering department can receive notifications in real time and arrange on-site maintenance in a timely manner to ensure guest stay experience.
5. Equipment Protection in Industrial Plants: Installed on KNX temperature, humidity and dust sensors in light industrial workshops, preventing equipment disassembly that affects production environment monitoring, ensuring stable production processes, and avoiding product quality problems caused by out-of-control environmental parameters.
6. Protection in Public Areas of Schools/Hospitals: Used with KNX control terminals in school laboratories and hospital wards, preventing equipment damage, ensuring the normal operation of laboratory environment control and ward equipment adjustment functions, and maintaining the order of public service scenarios.

4. Core Values

• Equipment Safety Protection: Real-time monitoring of the disassembly status of front-end devices, immediately triggering an alarm in case of illegal disassembly, preventing equipment theft, damage or malicious tampering, and ensuring system hardware safety.
• System Stability Guarantee: Avoiding system communication interruption and function failure caused by front-end device disassembly, improving the overall reliability of the KNX building automation system.
• Reduce Operation and Maintenance Costs: Accurate push of alarm information helps operation and maintenance personnel quickly locate fault locations, reducing manual inspection workload and shortening fault troubleshooting time.
• Easy Installation and Compatibility: Embedded design compatible with standard back box, seamless assembly with KNX front-end devices, bus-powered without additional wiring, compatible with mainstream KNX devices, reducing system integration costs.
• Anti-false Trigger Design: Built-in anti-shake algorithm and hierarchical permission reset mechanism, balancing protection accuracy and commissioning convenience, avoiding unnecessary operation and maintenance interference.
