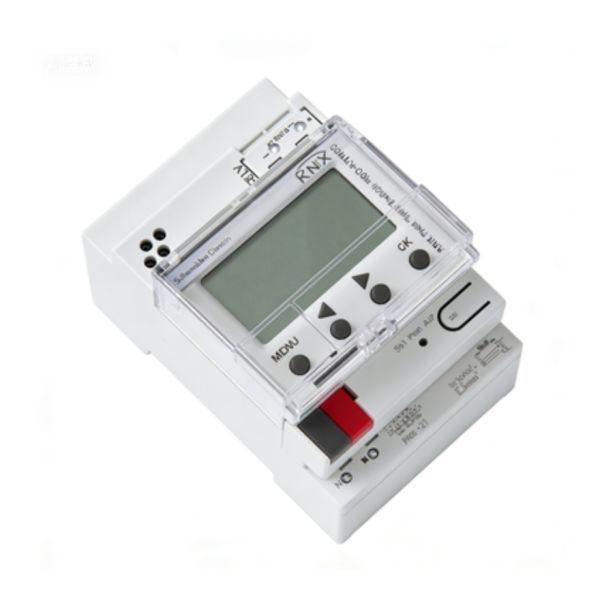

MTN6606-0008 Schneide KNX Time Switch SpaceLogic REG-K/I/8/800 Year for BAS Systems
MTN6606-0008 Schneide KNX Time Switch SpaceLogic REG-K/I/8/800 Year for BAS Systems
Specifications
Brand Name :
Schneide
Model Number :
MTN6606-0008
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Brand :
Schneide
Range of product :
SpaceLogic KNX
Number of channels :
8
Product name :
Time switch
Product or component type :
Programmable digital time switch
Mounting support :
DIN rail
Power supply input current :
12 mA
Material :
Plastic
Color :
White
IP degree of protection :
IP 20
Description
MTN6606-0008 Schneider KNX Time Switch SpaceLogic REG-K/I/8/800 Year for BAS Systems

  • Product Description


    Schneider MTN6606-0008 is a high-performance annual programmable time switch from the SpaceLogic KNX series, designed as a dedicated timing control component for Building Automation Systems (BAS). It enables long-cycle, precise timing control of KNX bus-connected devices, supporting up to 800 programmable switching events and 8 independent channels, with a programming cycle of up to 1 full year. This makes it ideal for scenarios requiring annual scheduling, such as seasonal lighting adjustments, holiday mode settings, and periodic equipment maintenance.

    Compliant with global KNX standards, the switch integrates seamlessly with KNX bus systems, allowing configuration and monitoring via KNX ETS software. It features automatic summer/winter time adjustment, holiday scheduling, and manual override for emergency control, ensuring flexible and reliable operation. With a compact DIN rail-mounted design and IP20 protection, it fits neatly into standard electrical control cabinets, while its non-volatile memory retains programming data for up to 10 years during power outages. Built with industrial-grade components, it delivers stable performance in diverse building environments, making it a key tool for energy-efficient and automated timing management in smart buildings.


    Technical Specifications


    Specifications Parameters
    Product Type SpaceLogic KNX Year Time Switch (REG-K/I/8/800)
    Communication Protocol KNX TP1 (compliant with KNX Standard)
    Timing Capability 1-year programming cycle; up to 800 switching events; 8 independent channels
    Minimum Switching Interval 1 minute
    Time Accuracy ±1 minute per month (at 25°C)
    Core Functions Automatic summer/winter time adjustment, holiday scheduling, manual override, 10-year data backup
    Input/Output 8 configurable output channels; dry contact (C/O)
    Power Supply KNX bus power supply (20–31V DC)
    Configuration Tool KNX ETS 5/6 software
    Mounting Method 35mm DIN rail-mounted (EN 60715); 4-module compact design
    Protection Level IP20 (suitable for control cabinet installation)
    Operating Temperature -10°C ~ +40°C
    Storage Temperature -25°C ~ +70°C
    EMC Compliance EN 61000-6-2, EN 61000-6-4; CE certified
    Compatibility All KNX-certified BAS devices; supports integration with lighting, HVAC, and security systems
    Dimensions (W×H×D) 72mm × 90mm × 65mm (4-module standard size)
    Package Contents Time switch unit, KNX bus terminal, fixing clips, user manual & ETS database


    Application Scenarios


    Schneider MTN6606-0008 is engineered for long-cycle timing control in KNX-based smart building projects, with core applications including:

    1. Commercial Building Lighting & HVAC

      Program annual on/off schedules for facade lighting, lobby lighting, and seasonal HVAC adjustment, aligning with business hours, holidays, and daylight saving time changes to optimize energy use.
    2. Municipal Public Facilities

      Control street lamps, park lighting, and public area ventilation systems with annual timing, adjusting for seasonal daylight variations and municipal holiday schedules.
    3. Industrial Auxiliary Systems

      Schedule annual maintenance cycles for workshop exhaust fans, water pumps, and equipment heating systems, ensuring periodic operation and reducing manual management costs.
    4. High-End Residential & Villas

      Integrate with whole-home KNX systems to program annual schedules for garden irrigation, pool heating, and outdoor lighting, adapting to seasonal living needs.
    5. Retail & Hospitality Spaces

      Manage display window lighting, advertising light boxes, and restaurant kitchen equipment with annual timing, matching promotional periods and seasonal business peaks.
    6. Cultural & Educational Facilities

      Control museum exhibition lighting, school classroom ventilation, and auditorium equipment with annual schedules, aligning with academic calendars and exhibition cycles.
