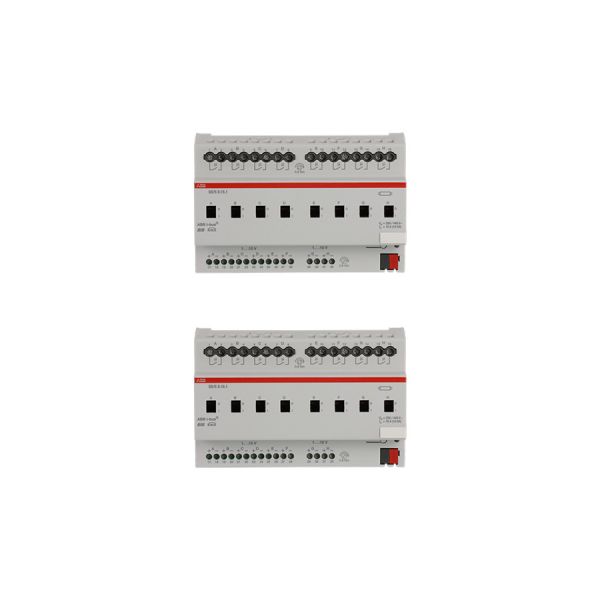

SD/S8.16.1 ABB 8 Channel 16A Switch Dim Actuator with MDRC
SD/S8.16.1 ABB 8 Channel 16A Switch Dim Actuator with MDRC
SD/S8.16.1 ABB 8 Channel 16A Switch Dim Actuator with MDRC
SD/S8.16.1 ABB 8 Channel 16A Switch Dim Actuator with MDRC
SD/S8.16.1 ABB 8 Channel 16A Switch Dim Actuator with MDRC
SD/S8.16.1 ABB 8 Channel 16A Switch Dim Actuator with MDRC
Specifications
Brand Name :
ABB
Model Number :
SD/S 8.16.1
Certification :
CE
Place of Origin :
EU
MOQ :
1
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Original Case
Brand :
ABB
Operatingtemperature :
-5°C to +45°C
Power rating :
16A
Voltage :
230V AC
Installation :
DIN rail mounting
Type :
MDRC Devices
Weight :
0.5 KG
Control type :
KNX System
Product name :
Dimming Actuator
Dimensions :
144mm x 72mm x 90mm
Communication protocol :
KNX
Function :
Dim lights by adjusting brightness levels
Color :
Grey
Description
SD/S8.16.1 ABB 8-Channel 16A Switch-Dim Actuator with MDRC

Product Description


The ABB SD/S8.16.1 is a high-capacity 8-channel switch-dim actuator engineered for large-scale intelligent load control in commercial, industrial, and premium residential smart automation systems. As a flagship model in the SD/S series, it integrates advanced switching and dimming capabilities, paired with MDRC (Multi-Device Remote Control) technology, to deliver precise, synchronized management of diverse electrical loads—including high-power LED lighting arrays, incandescent/halogen fixtures, ventilation systems, small appliances, and other resistive, inductive, or capacitive devices.

Each of the 8 independent channels supports a robust 16A current capacity, enabling stable control of high-wattage loads while maintaining energy efficiency and flicker-free performance for dimmable lighting. Compatible with KNX TP (Twisted Pair) bus systems, the actuator seamlessly integrates into centralized building management systems (BMS), supporting remote control, custom schedule programming, and real-time synchronization with occupancy sensors, daylight detectors, or other KNX-enabled devices. The MDRC functionality enhances flexibility by allowing simultaneous control of multiple connected devices, facilitating complex scene activation (e.g., "office opening mode," "event venue dimming sequence") and streamlined energy optimization.

Featuring a space-efficient DIN-rail mounting design (16 division units, fitting standard 35mm DIN rails) and IP20 protection class, it is ideal for installation in control cabinets of large buildings, saving valuable space while ensuring durability for 24/7 indoor operation. Manual on-device push-button operation is supported for quick testing, maintenance, or emergency adjustments—even without bus voltage—providing on-site flexibility for installers and facility managers. Equipped with secure screw terminals (accommodating 0.5–2.5mm² copper conductors) and a flame-retardant polycarbonate housing, it meets international safety standards (UL94 V0, IEC compliance) for long-term reliability in high-demand environments.

Whether retrofitting large commercial complexes or building new smart infrastructures, the ABB SD/S8.16.1 combines 8-channel scalability, 16A high-load capacity, MDRC smart control, and broad load compatibility to deliver a cost-effective, high-performance solution for large-scale automation projects requiring synchronized switch-dim functionality.

Technical Specifications


Parameter Details
Model Number SD/S8.16.1
Product Type 8-channel switch-dim actuator (KNX-compatible, MDRC-enabled)
Channel Quantity 8 independent, isolated channels
Max Current per Channel 16A (resistive load, 230V AC)
Dimming Compatibility Dimmable LED (LEDi), incandescent lamps, halogen fixtures (smooth 0–100% dimming)
Compatible Load Types Resistive, inductive, capacitive loads; lighting systems, ventilation fans, small pumps, office appliances, AV equipment
Core Technology MDRC (Multi-Device Remote Control), KNX 2.3 compliant
Bus Compatibility KNX TP (Twisted Pair)
Protection Class IP20
Installation Type DIN-rail mounted (16 division units, standard 35mm DIN rail)
Operating Voltage 230V AC (50/60 Hz)
Control Methods KNX bus control (centralized BMS), MDRC remote control, manual on-device push-button operation
Wiring Interface Screw terminals (copper conductor: 0.5–2.5mm²; flexible conductor: 0.5–1.5mm²)
Operating Temperature -5°C to +45°C (ambient temperature, no condensation)
Storage Temperature -25°C to +70°C
Housing Material Flame-retardant polycarbonate (UL94 V0), compliant with IEC 60695-11-10
Dimensions (W×H×D) Approx. 90mm × 90mm × 65mm (standard DIN-rail mounting dimensions)
Certifications CE, KNX BTL certified, compliant with IEC 61010-1, IEC 61158-2, EN 50090
Key Protection Features Overload protection, short-circuit protection, surge protection (±2kV)
Response Time ≤ 10ms (switching delay); ≤ 20ms (dimming response)
Power Consumption ≤ 3W (standby), ≤ 6W (full-load operating)
Mechanical Life ≥ 100,000 switching cycles per channel
Electrical Life ≥ 10,000 switching cycles (at max load)
Dimming Resolution 1024 steps (for smooth brightness adjustment)
