Manual Mode MTN646991 Schneide SpaceLogic KNX 3 Gang 0-10V Control Unit
Manual Mode MTN646991 Schneide SpaceLogic KNX 3 Gang 0-10V Control Unit
Manual Mode MTN646991 Schneide SpaceLogic KNX 3 Gang 0-10V Control Unit
Manual Mode MTN646991 Schneide SpaceLogic KNX 3 Gang 0-10V Control Unit
Manual Mode MTN646991 Schneide SpaceLogic KNX 3 Gang 0-10V Control Unit
Manual Mode MTN646991 Schneide SpaceLogic KNX 3 Gang 0-10V Control Unit
Specifications
Brand Name :
Schneide
Model Number :
MTN646991
Certification :
CE/RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Protection Rating :
IP20 protection level
Rated Voltage :
AC 230V
Channel Configuration :
3 independent control channels
Control Signal Type :
0-10V analog signal output
Description

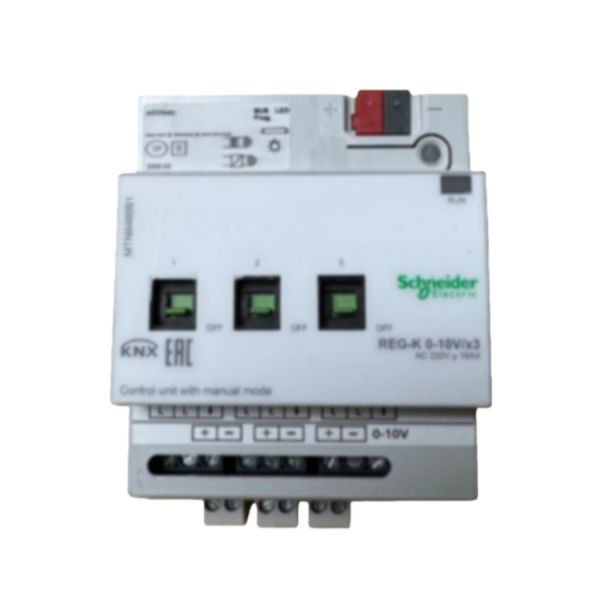

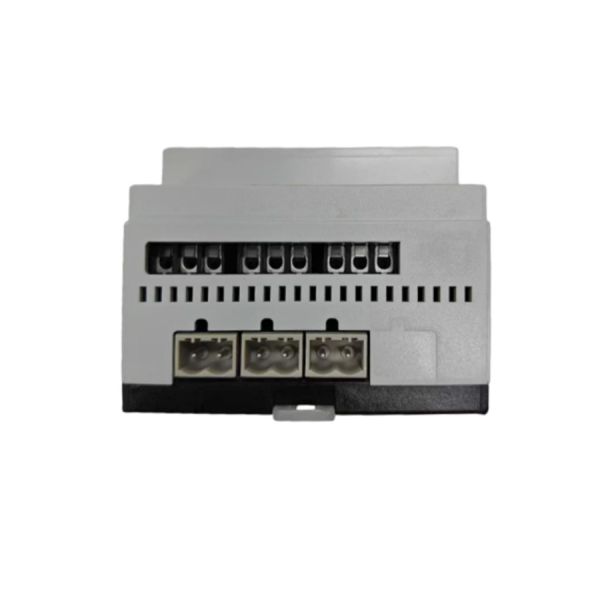

MTN646991 Schneide SpaceLogic KNX 3-Gang 0-10V Control Unit With Manual Mode

This 3-channel intelligent control unit based on the KNX bus protocol is designed for 0-10V dimming signal output. It integrates automatic linkage control with local manual operation, featuring "REG-K" regulation logic for professional lighting system management including proportional adjustment and scene memory functions.

Core Technical Specifications
Functional Parameters
ParameterSpecification
Channel Configuration3 independent control channels for separate management of lighting circuits with individual dimming and scene linkage control
Control Signal Type0-10V analog signal output for smooth, stepless brightness adjustment without flicker
Bus ProtocolKNX standard protocol compatible with KNX sensors, central control hosts, and smart panels
Manual Control ModeLocal manual operation functionality for uninterrupted lighting control during system maintenance or bus failure
REG-K Exclusive FeatureProfessional regulation logic including brightness memory, proportional dimming, and slow start/stop functions
General Technical Parameters
ParameterSpecification
Rated VoltageAC 230V (compatible with household/commercial mains) with DC 24V auxiliary power supply
Load CapacityMaximum output current 10-20mA per channel (matching 0-10V dimmer driver requirements)
Installation MethodStandard DIN rail mounting (35mm) for installation in distribution boxes
Protection RatingIP20 protection level suitable for indoor dry environments
CompatibilityCompatible with mainstream KNX system brands for seamless integration
Application Scenarios
Commercial Building Applications
  • Office Buildings: Controls main lighting, auxiliary lighting, and decorative lighting with sensor linkage for optimal lighting conditions
  • Shopping Malls/Exhibition Halls: Manages booth and exhibition area lighting with real-time brightness adjustment capabilities
  • Hotel Guest Rooms: Controls ceiling, bedside, and bathroom lighting with scene switching and guest customization
  • Education/Medical Facilities: Provides independent control for different area lighting in classrooms and consultation rooms
High-End Residential Applications
  • Villas/Large Residences: Covers living room, dining room, and study room lighting with centralized smart control
  • Smart Home Demonstrations: Showcases KNX multi-channel control flexibility and manual backup reliability
Core Product Advantages
  • 3-Channel Partitioned Control: Independent management of multiple lighting circuits for differentiated brightness adjustment
  • Dual-Control Guarantee: Combines KNX automatic linkage with local manual operation for system reliability
  • REG-K Regulation Logic: Professional dimming algorithms prevent sudden light changes and extend lamp lifespan
  • Strong Compatibility: International KNX standard compliance for seamless system integration and expansion
  • Easy Installation: Rail-mounted design consistent with KNX device specifications for simplified wiring and maintenance
