Specifications
Rated Voltage :
230V AC
Grid Frequency :
50-60Hz
Product Model :
MTN6710-0102S
Output Channels :
2 independent dimming channels
Total Power Consumption :
<6W
IP Rating :
IP20
Brand Name :
Schneide
Model Number :
MTN6710-0102S
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
2
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Description

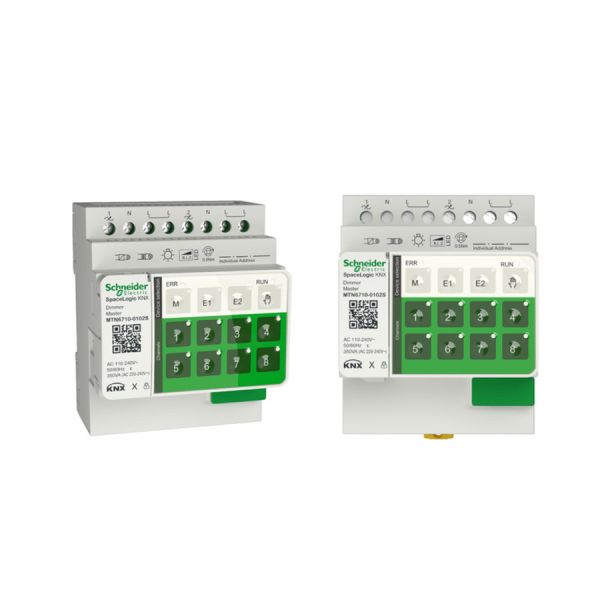

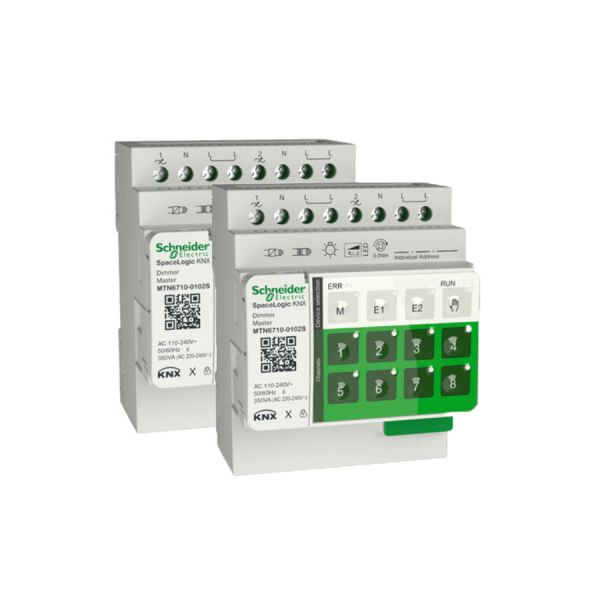

MTN6710-0102S Schneide SpaceLogic KNX Dimming Actuator

Universal 230V dimming actuator with 7.5mA KNX supply for comprehensive lighting control applications.

Electrical Specifications
Parameter Specifications Key Features
Product Model MTN6710-0102S Schneide SpaceLogic KNX series universal dimming module
Rated Voltage 230V AC Compatible with 220-240V power grids worldwide
Grid Frequency 50-60Hz Universal compatibility across different regions
Output Channels 2 independent dimming channels Simultaneous control of 2 different load groups
Load Power Range • Incandescent/Halogen: 20-350W/channel
• RC LED lamps: 2-200W/channel
• RL LED lamps: 2-60W/channel		 Comprehensive coverage of mainstream dimming light sources
KNX Bus Power • Standalone: 7.5mA
• With 1 extension: 10mA
• With 2 extensions: 12.5mA		 Bus-powered operation with linear power scaling
Total Power Consumption <6W Low standby power for energy efficiency
Functional Capabilities
Function Capabilities User Benefits
Load Identification Automatic detection of load type during startup Eliminates manual configuration, prevents dimming issues
Load Combination Supports resistive+inductive and resistive+capacitive combinations Flexible adaptation to mixed light source scenarios
Expansion Capability • Maximum 2 extension modules
• Dimming extension (MTN6810-0102)
• Switch/curtain extension (MTN6805-0008)		 Integrated control system reducing complexity and costs
Dimming Control • Multiple dimming modes
• 16 built-in brightness scenes
• Multi-curve/multi-rate control		 Comprehensive lighting control for various scenarios
Auxiliary Functions • Staircase light timing
• Configurable switch delays
• Priority control override		 Enhanced safety and automation for public spaces
Protection Mechanisms Short-circuit, open-circuit, overheating, and soft-start protection Extended equipment lifespan and operational safety
Installation & Protection
Parameter Specifications Application
Installation Method DIN rail mounting (TH35 rail) Compatible with industrial distribution boxes and control cabinets
Device Dimensions Width: 4 modules (72mm)
Depth: 66mm minimum		 Compact design for space-constrained installations
IP Rating IP20 Indoor dry environments only
Wiring Method Screw terminals Secure, vibration-resistant connections
Certifications & Compliance

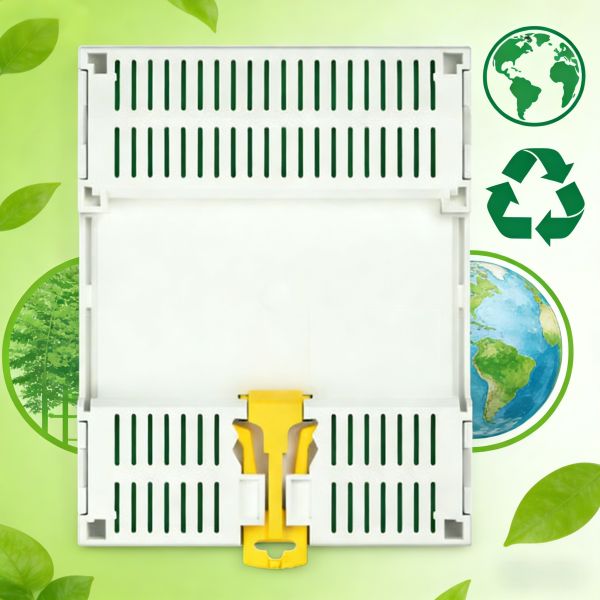

  • Environmental: Green Premium product, EU RoHS compliant, China RoHS compliant, mercury-free design
  • Safety: CE certification, WEEE certification, REACH compliant
  • Standards: EN 60715 (DIN rail), KNX bus protocol standard
Application Scenarios
Residential Applications
  • Zoned dimming for living rooms, bedrooms, and studies
  • Scenario-based control for movies, reading, and nighttime
  • Mixed light source management (LED main lights + halogen spotlights)
Commercial Buildings
  • Centralized control of multiple areas in offices, malls, and hotels
  • Scene switching for different operational modes
  • Automation of public spaces including corridors and restrooms
Public Spaces
  • Human-sensing linked dimming for hospitals and schools
  • Emergency lighting priority control
  • Low maintenance cost operation
Industrial Applications
  • Workshop local lighting and control room illumination
  • Anti-interference operation in complex environments
  • Integration with industrial Building Management Systems
Core Advantages
  • Enhanced Compatibility: Full range of light sources with automatic load adaptation
  • Flexible Expansion: Single module supports multiple control functions
  • Advanced Scenario Capability: 16 built-in scenes with complex logic support
  • Convenient Operation: Local manual control with LED status indication
Important Precautions
  • Load Matching: LED lamps must be properly identified as RC or RL type; inductive+capacitive combinations are prohibited
  • Expansion Limit: Maximum 2 extension modules to avoid bus power overload
  • Installation Environment: IP20 rating restricts use to dry indoor locations only
  • Commissioning: Initial configuration requires KNX software (ETS) for optimal performance
Product Summary

The MTN6710-0102S is a cost-effective universal dimming module from Schneide's SpaceLogic KNX series, designed for multi-scenario adaptation and flexible expansion. Suitable for smart lighting in residential, commercial, and public spaces, its automatic load identification, low power consumption, and strong expansion capabilities effectively reduce system deployment and maintenance costs, making it an ideal core control unit for KNX smart lighting systems.
