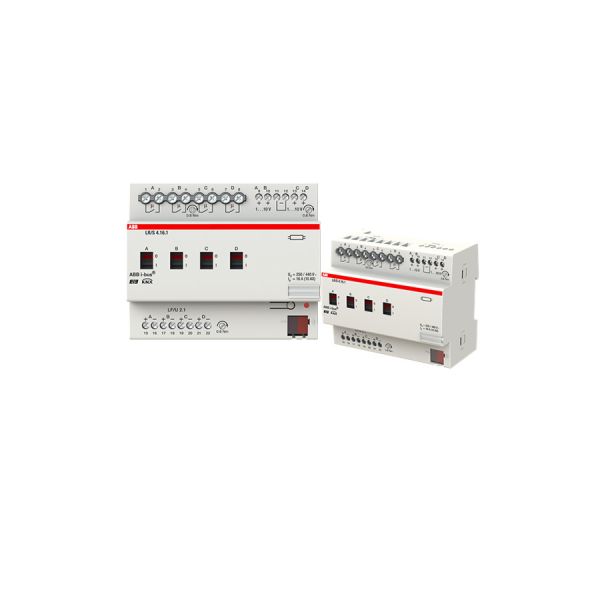

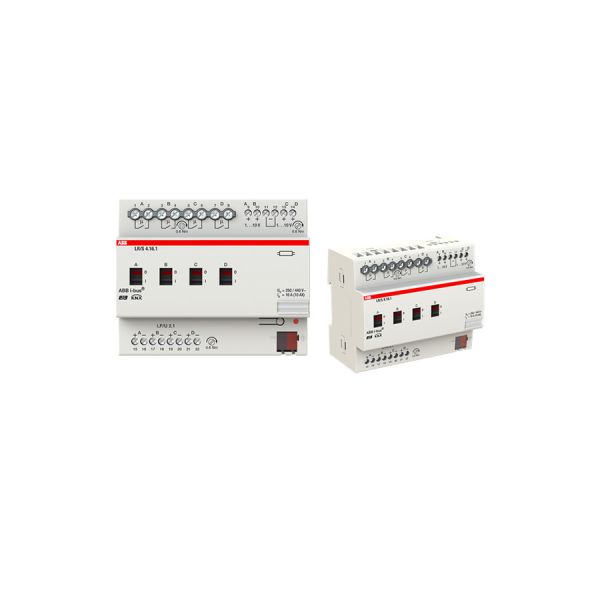

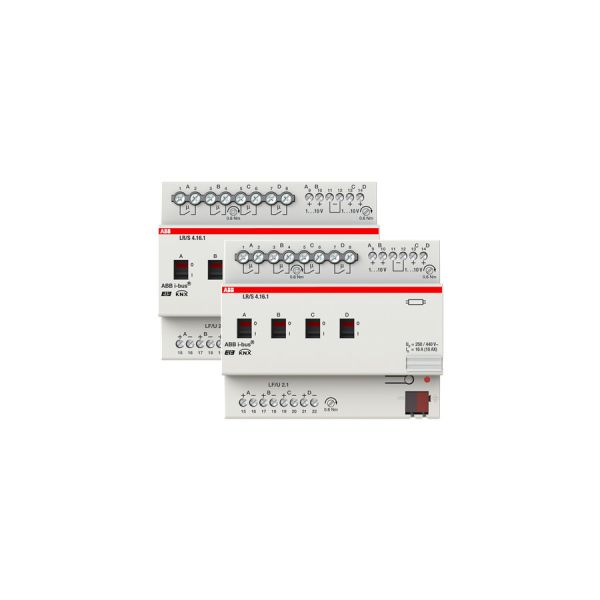

LR/S 4.16.1 ABB 4 Channel 16A KNX Light Controller 1-10V Dimming & MDRC
LR/S 4.16.1 ABB 4 Channel 16A KNX Light Controller 1-10V Dimming & MDRC
LR/S 4.16.1 ABB 4 Channel 16A KNX Light Controller 1-10V Dimming & MDRC
LR/S 4.16.1 ABB 4 Channel 16A KNX Light Controller 1-10V Dimming & MDRC
LR/S 4.16.1 ABB 4 Channel 16A KNX Light Controller 1-10V Dimming & MDRC
LR/S 4.16.1 ABB 4 Channel 16A KNX Light Controller 1-10V Dimming & MDRC
Specifications
Brand Name :
ABB
Model Number :
LR/S 4.16.1
Certification :
CE
Place of Origin :
EU
MOQ :
1
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Original Case
Brand :
ABB
Channel :
4
Operatingtemperature :
-5°C to +45°C
Voltage :
230V AC
Transmission Standard :
Twisted Pair Wiring
Type :
MDRC Devices
Weight :
0.33 KG
Control type :
KNX System
Product name :
Dimming Actuator
Dimensions :
108mm x 90mm x 65mm
Communication protocol :
KNX
Function :
Dim lights by adjusting brightness levels
Color :
Grey
Description
LR/S 4.16.1 ABB 4-Channel 16A KNX Light Controller 1-10V Dimming & MDRC

Product Description


The ABB LR/S 4.16.1 is a high-performance 4-channel KNX light controller with MDRC functionality, engineered for intelligent, centralized control of commercial and industrial lighting systems. Specialized in 1-10V dimming control for electronic ballast-equipped luminaires, it delivers 16A high-load switching capacity per channel and core constant light control—enabling daylight harvesting when paired with dedicated light sensors for energy efficiency and optimal lighting comfort. As a master device for ABB i-bus® systems, it supports independent programming for each channel (switching, dimming, scene recall, staircase lighting) and seamless integration with other KNX actuators/gateways. With bus-independent manual on-device operation and a compact DIN-rail design, it offers reliable, flexible control for multi-zone lighting scenarios, balancing high performance with easy installation and on-site maintenance.

Technical Specifications


Parameter Details
Model Number LR/S 4.16.1
Product Type 4-fold KNX light controller (MDRC-enabled, 1-10V dimming)
Channel Quantity 4 independent, programmable channels
Max Switching Current 16A per channel (250V AC) 2300W max power per channel
Dimming Control Interface 1-10V DC output (100mA max control current) for electronic ballasts/transformers
Core Control Functions Constant light control, 0-100% smooth dimming, scene recall, master/slave operation, staircase lighting timer
Sensor Compatibility 4× LF/U 2.1 light sensors (for daylight harvesting/constant light)
Bus Compatibility KNX TP (21-32V DC bus voltage; ≤10mA bus current consumption)
Key Features MDRC multi-device remote control, bus-independent manual operation, independent channel programming
Installation Type DIN-rail mounted (8 division units, 35mm standard DIN rail)
Operating Voltage 110-230V AC (50/60 Hz) - wide voltage compatibility
Protection Class IP20 (indoor cabinet installation)
Operating Temperature -5°C to +45°C (no condensation)
Certifications CE, KNX BTL certified, RoHS compliant
Housing Design Flame-retardant plastic, compact industrial-grade construction

Application Scenarios


  1. Large Commercial Office Buildings


    Ideal for open workspaces, multi-floor corridors and meeting room clusters—enables zoned constant light control via daylight harvesting, reduces energy waste by adjusting artificial lighting based on natural light, and supports one-touch scene recall (office mode, meeting mode, after-hours mode).
  2. Retail & Hospitality Complexes


    Controls display lighting, ambient lighting and common area illumination in shopping malls, hotels and banquet halls. 4-channel independent programming caters to different business zones (retail kiosks, hotel lobbies, banquet halls) with MDRC for synchronized multi-device control.
  3. Industrial & Logistics Facilities


    Delivers reliable high-load lighting control for production workshops, warehouse zones and loading docks. Supports automated on/off/dimming based on production schedules and occupancy, with robust 16A per channel capacity for industrial-grade luminaires.
  4. Public Institutions & Municipal Buildings


    Applied in schools, hospitals, government buildings and metro stations—manages classroom/ward lighting (constant brightness for eye comfort) and staircase/corridor lighting (staircase timer function for energy saving), complying with public facility safety and efficiency standards.
  5. KNX Smart Building System Integration


    Serves as a master control device in ABB i-bus® KNX systems, seamlessly connecting SD/S switch-dim actuators, DG/S DALI gateways and other KNX devices to build a unified, scalable lighting control system for mixed-use towers, business parks and large residential complexes.
  6. Retrofit Smart Lighting Projects
