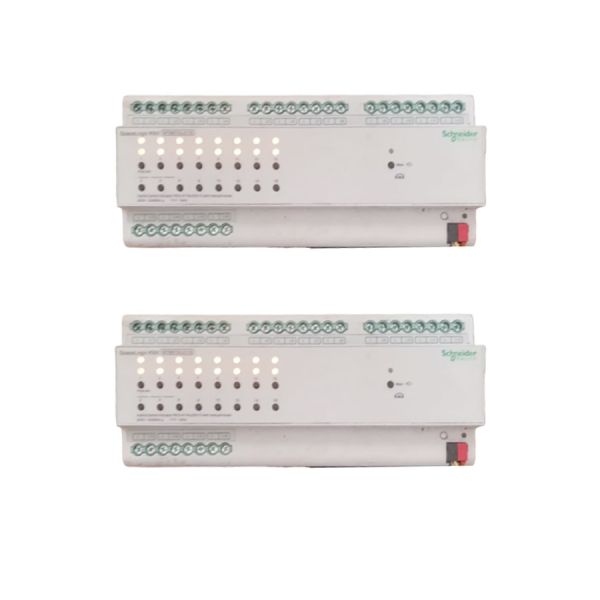

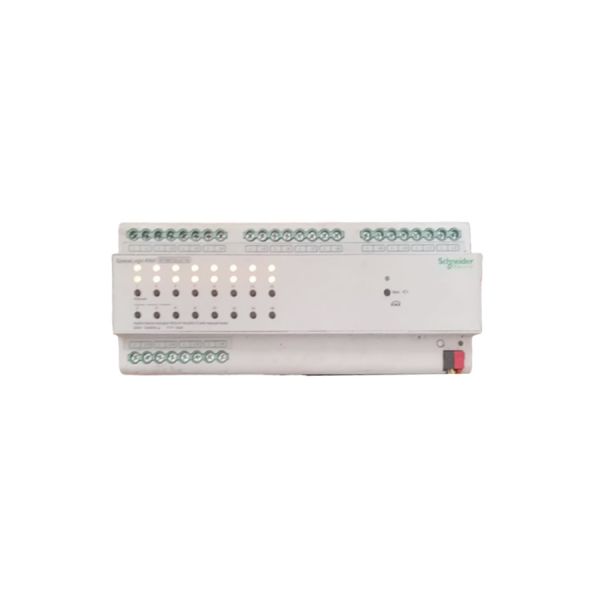

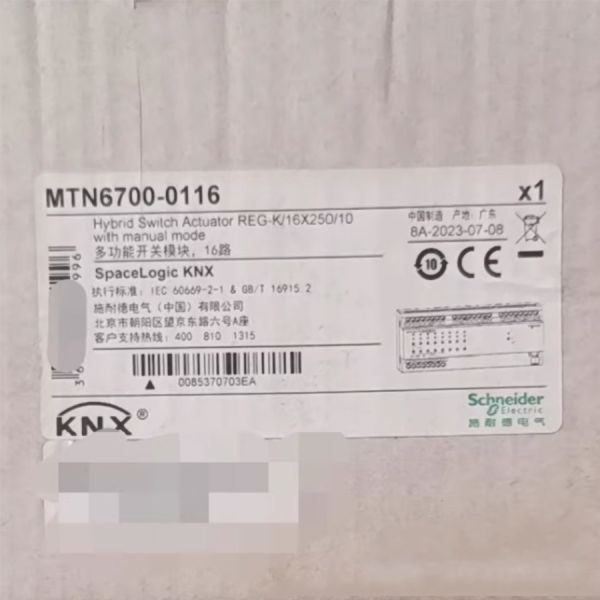

MTN6700-0116 Schneider KNX Hybrid Switch Actuator 16x250V/10A Manual Mode

I. Core Parameter Analysis

1. Core Functional Parameters

2. General Technical Parameters (Referenced from Similar KNX Switch Actuators)

II. Main Application Scenarios

1. Commercial & Industrial Building Scenarios

• Large Commercial Complexes/Shopping Malls:The 16 channels control the lighting of different floors/zones, showcase neon lights, background music systems, escalator power supplies, refrigerated display cabinets, and emergency lighting systems. The sequential start-stop function avoids grid impact during peak business hours, and the manual mode allows staff to quickly cut off power in faulty zones.
• High-Rise Office Buildings:Control the main lighting of multiple floors, conference room equipment, office area ventilation fans, printer rooms, tea room water heaters, and access control auxiliary power supplies. Through linkage with light sensors and human presence sensors, it realizes full-building energy-saving control of "people coming on, people leaving off", and the manual mode is convenient for maintenance personnel to handle emergencies.
• Hotel Chains/Resorts:Match the hotel intelligent management system to control the lobby chandeliers, guest room floor corridor lights, banquet hall stage equipment, swimming pool ventilation systems, restaurant kitchen power supplies, and garden landscape lights. It supports one-click switching of multiple global scenes (e.g., "peak season mode", "off-season energy-saving mode"), and the manual mode ensures normal operation of the entire resort when the system fails.
• Factories/Logistics Parks:Control the lighting of different production workshops, warehouse area lighting, ventilation fans, material conveying equipment, and office area power supplies. The overload protection reminder function can timely warn of abnormal equipment operation, and the manual mode is convenient for staff to operate during night shifts or system maintenance.

2. High-End Civil Scenarios

• Super-Large Villas/Private Manors:The 16 channels cover the lighting of multiple floors, courtyard landscape lights, garage exhaust fans, home theater audio equipment, swimming pool water circulation systems, gym equipment power supplies, and smart greenhouse control systems. It supports centralized control via smart panels or voice assistants, and the manual mode is friendly to the elderly and children who are not familiar with intelligent systems.
• Private Clubs/High-End Gyms:Control the lighting of different functional zones, audio equipment, fitness equipment power supplies, air conditioning systems, and sauna room equipment. The scene memory function of REG-K can save multiple mode configurations (e.g., "fitness mode", "banquet mode"), and the manual mode can quickly adjust the equipment status according to the number of guests.
• Intelligent Building Experience Centers:As a core demonstration device of the KNX system, it shows the large-scale load control capability of the system. Visitors can experience the convenience of one-click global scene switching and the reliability of manual backup, highlighting the scalability of the KNX system for large projects.

III. Core Product Advantages

1. 16-Channel Ultra-Large Capacity Control:Covers 16 groups of loads at the same time, meeting the control needs of large-scale scenarios. It reduces the number of equipment purchases and wiring costs, and improves the integration level of the entire intelligent system.
2. Dual-Control Reliability Guarantee:Combines KNX automatic linkage with local manual operation, solving the pain point of "system failure leading to loss of all load control". It improves the stability and emergency response capability of the intelligent system, especially suitable for key scenarios that cannot afford power outages.
3. REG-K Advanced Intelligent Regulation Logic:Built-in scene memory, sequential start-stop, delay on/off and overload protection functions. It not only improves the comfort of equipment use but also extends the service life of electrical equipment and ensures the safety of the power grid.
4. Easy Installation and Maintenance:Standard 35mm DIN rail mounting design, consistent with the installation specifications of other KNX devices. It is suitable for central distribution cabinets with limited space, and convenient for centralized management and later inspection and replacement.
5. Strong System Compatibility:Complies with the international KNX standard, can be seamlessly integrated into existing intelligent building management systems, and is an ideal choice for system upgrading and expansion of large commercial and industrial projects.
