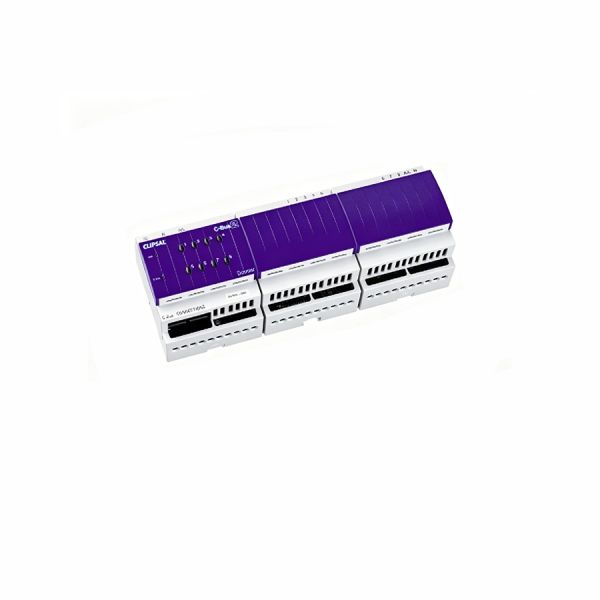

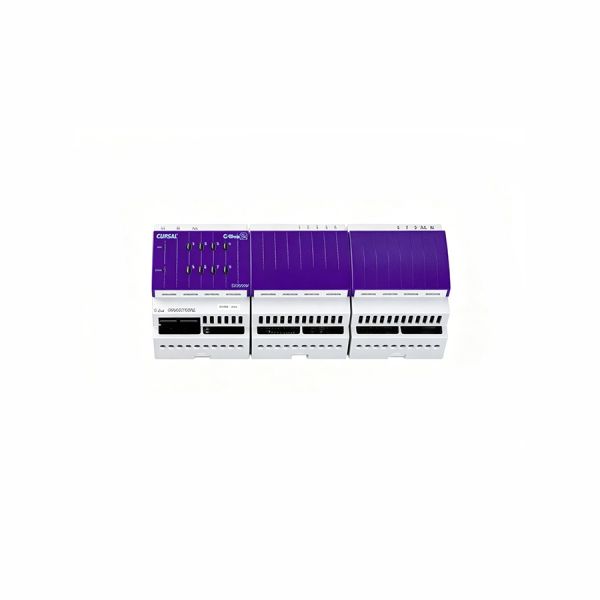

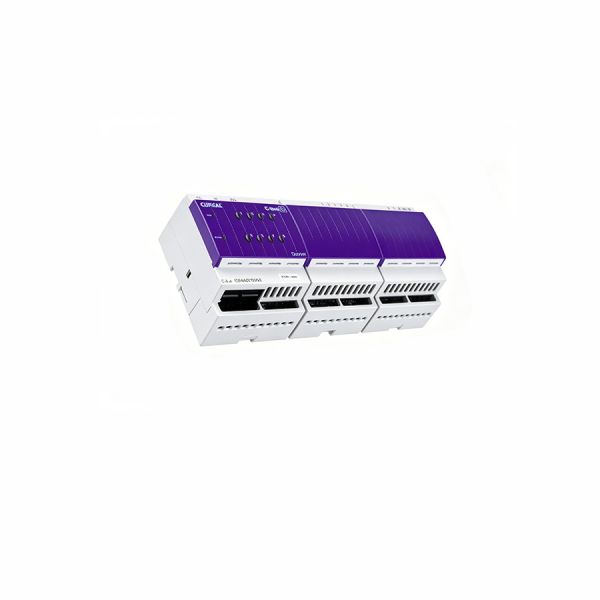

L5508D1AP - Clipsal Schneider C-Bus 8-Way Leading Edge Dimmer Module 240V AC
L5508D1AP - Clipsal Schneider C-Bus 8-Way Leading Edge Dimmer Module 240V AC
L5508D1AP - Clipsal Schneider C-Bus 8-Way Leading Edge Dimmer Module 240V AC
L5508D1AP - Clipsal Schneider C-Bus 8-Way Leading Edge Dimmer Module 240V AC
L5508D1AP - Clipsal Schneider C-Bus 8-Way Leading Edge Dimmer Module 240V AC
L5508D1AP - Clipsal Schneider C-Bus 8-Way Leading Edge Dimmer Module 240V AC
Specifications
Brand Name :
Schneider
Model Number :
L5508D1AP
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Description
L5508D1AP - Clipsal Schneider C-Bus 8-Way Leading Edge Dimmer Module 240V AC
Compact C-Bus dimmer module providing 8 channels of leading-edge phase control dimming with individual load capacity up to 1A per channel.
Product Overview

The L5508D1AP is a compact C-Bus dimmer module providing 8 channels of leading-edge phase control dimming. Each channel delivers up to 1A of load capacity, making it specifically designed for fine-grained control of low-to-medium power lighting circuits. Its compact DIN rail form factor makes it ideal for installations where space is at a premium but sophisticated dimming control is required.

Technical Specifications
Parameter Specification
Total Channels 8 independent dimming channels
Load per Channel 1A maximum
Total Load Capacity 8A maximum
Dimming Type Leading-edge phase control
Dimming Range 1% - 100%
Operating Voltage AC 220-240V, 50/60Hz
C-Bus Supply 15-36V DC via C-Bus network (PSU not included)
Installation DIN rail mount
Protection Per-channel overload and short-circuit protection
Status Indication Per-channel LED indicators
Programming C-Bus Toolkit
Dimensions Compact DIN rail width
Compliance CE, RCM, RoHS compliant
Key Features
  • 8 channels of precision leading-edge dimming control
  • Compact DIN rail design saves panel space
  • Ideal for LED lamps, incandescent, and halogen loads
  • Per-channel individual overload protection
  • Programmable fade times for smooth transitions
  • Scene and group control via C-Bus network
  • Local manual test buttons for commissioning
  • No separate power supply required — powered from C-Bus network
Applications
  • Hotel guest rooms with multiple lighting circuits
  • Residential projects with many dimmable zones
  • Restaurant and bar ambient lighting control
  • Small-to-medium commercial spaces with dimming requirements
  • Audiovisual rooms and home theaters
  • Museum display cases and exhibit lighting
  • Retail display lighting with individual zone control
Why Choose L5508D1AP?
The L5508D1AP's 8-channel density in a compact form factor makes it the perfect choice for projects requiring multiple dimming zones without consuming excessive DIN rail space.
